Sungrow

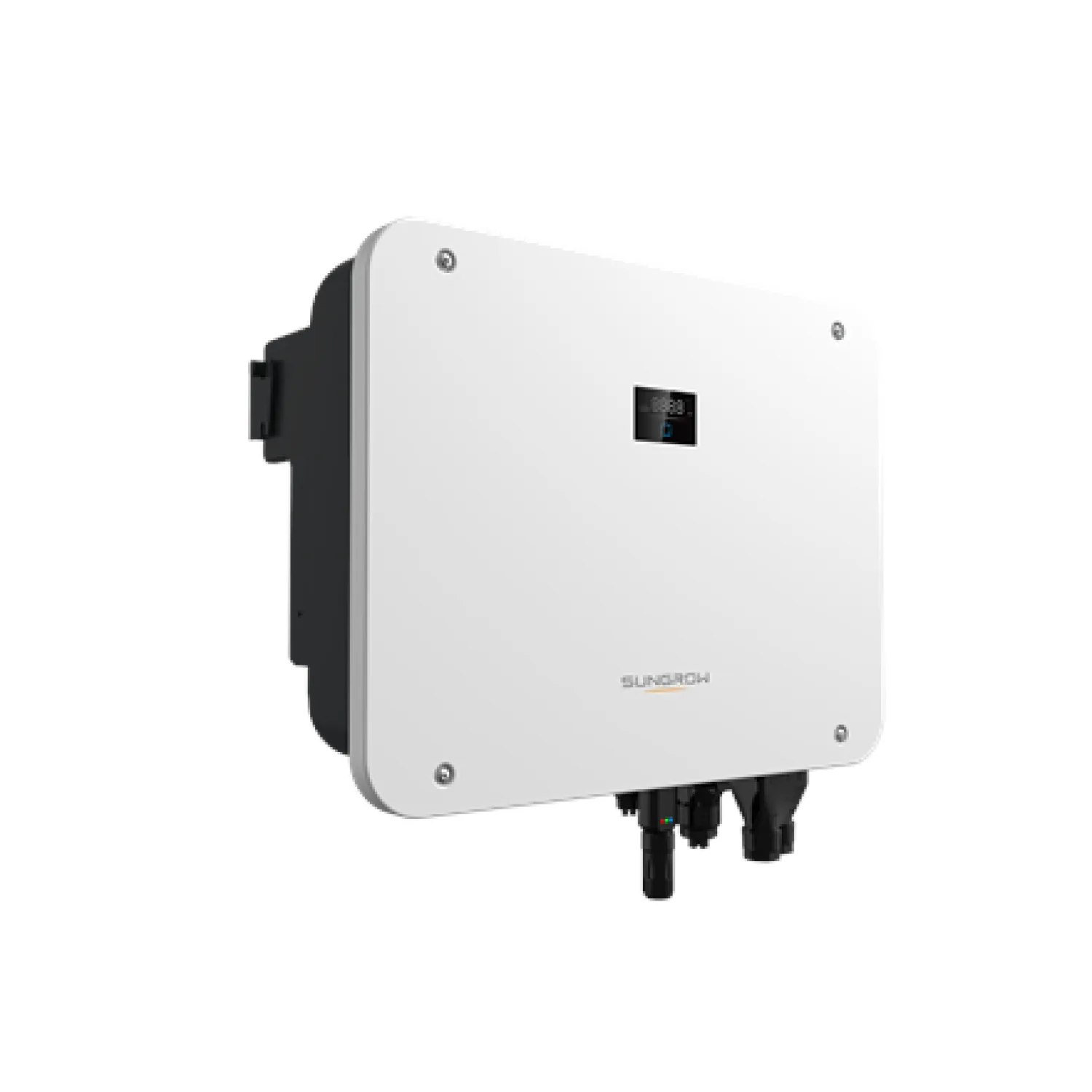

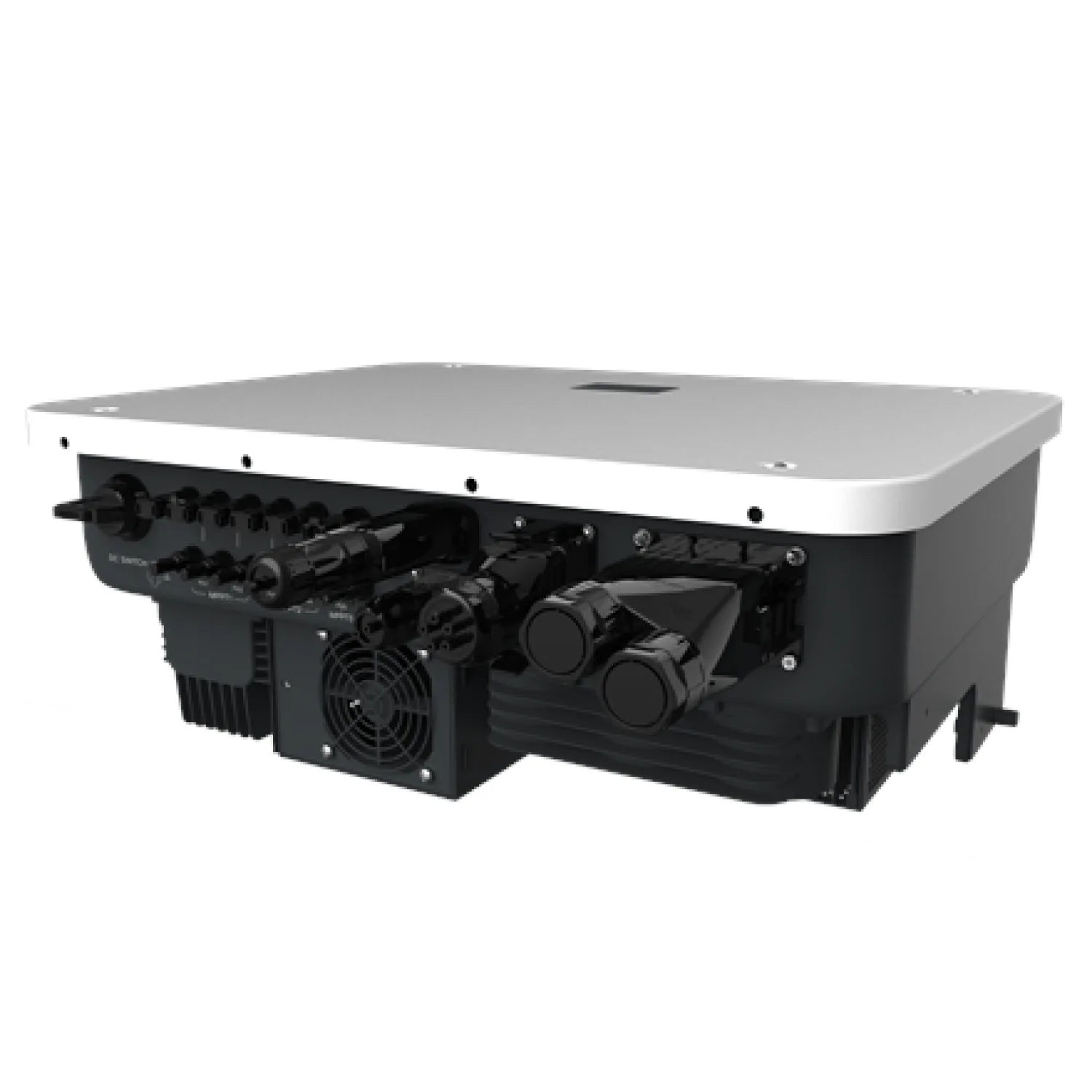

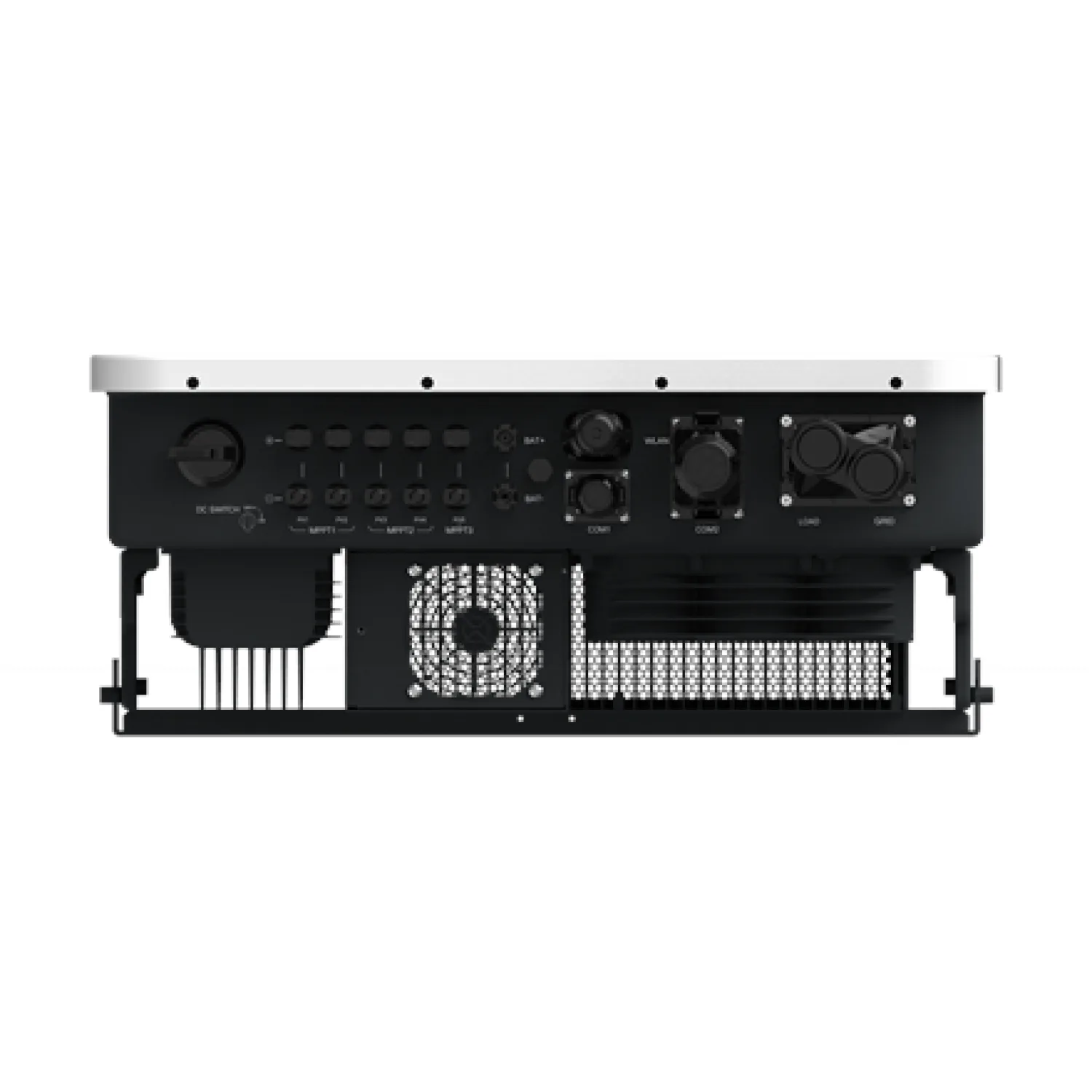

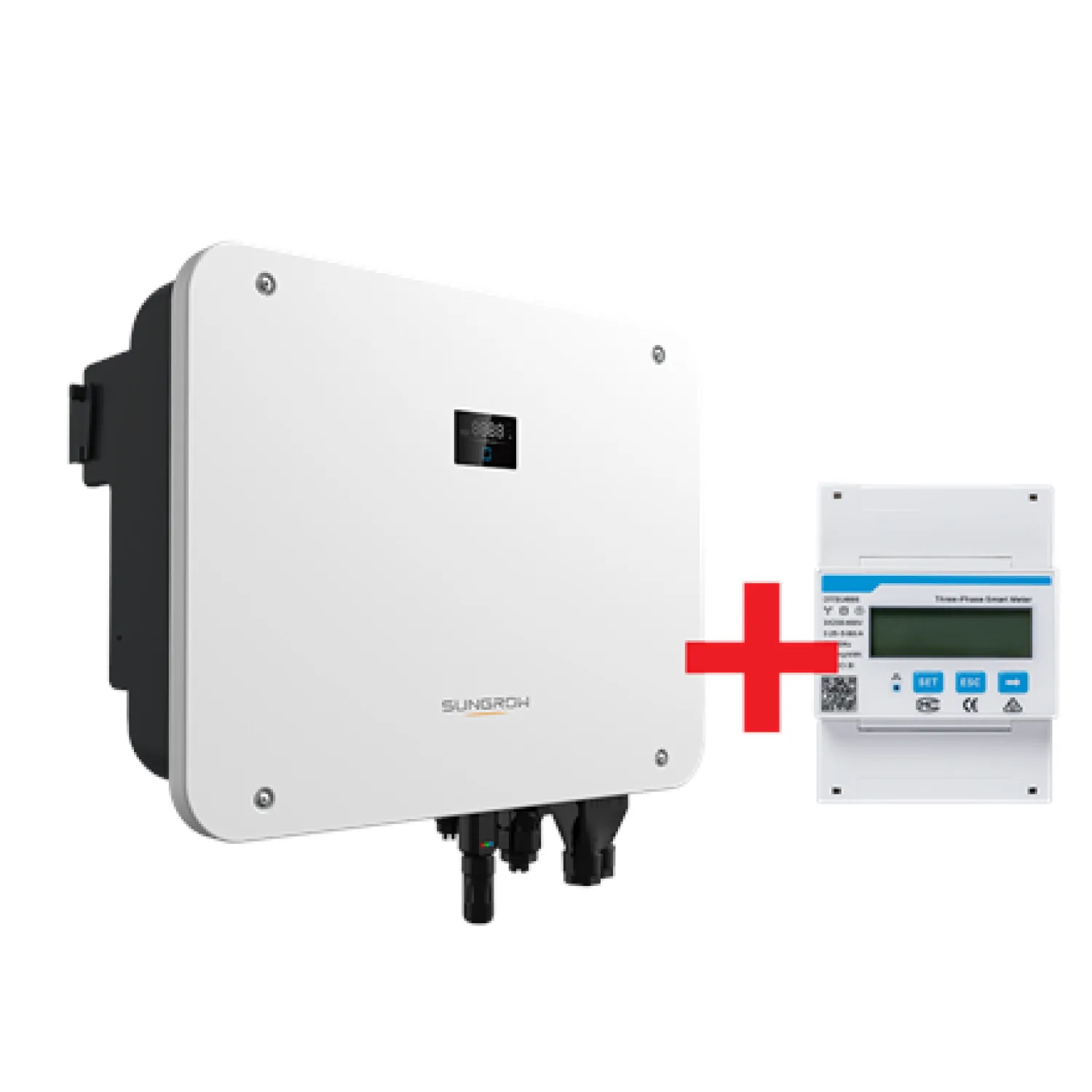

SUNGROW | Hybridinverter SH20T-V11_S 20kW 3MPPT + DTSU666-20 Smart Meter med 3x100A CT-klemmer
Produktkode: SUNGROW-SH20T-V11S-20K-3MPPT-KIT
Levering €36,30 · Levering i hele EU
Ikke på lager
Ikke på lager lige nu. Efterlad din e-mail, så giver vi besked, så snart varen er tilbage.
Tekniske specifikationer
Model: SH20T-V11_S (sæt ASH00145), 3-faset hybridinverter til solceller + Smart meter.
PV: 40 kWp anbefalet, maks. 1000 V, nominel 600 V, MPPT 150–950 V, 3 MPPT, 30 A pr. MPPT.
AC: Nominel effekt 20 kW / 20 kVA, 3/N/PE 230/400 V, 50/60 Hz; maks. AC-strøm ≈30,4 A.
Backup-funktion: <10 ms omskiftning, 63 A bypass; kortvarig spidseffekt ≈32 kVA (10 s).
Virkningsgrad: 98,1% (EU 97,6%).
I/O & kommunikation: RS485, WLAN, Ethernet, CAN, DI/DO; overvågning via iSolarCloud.
Beskyttelse: DC/AC SPD Type II, anti-islanding, netovervågning, PID-zero, omfattende DC/AC-beskyttelse.
Mekanisk/miljø: IP65 (C5); 620 × 480 × 245 mm, 38 kg; blæserkøling, ~50 dB(A); –25…+60 °C.
Sættets indhold: DTSU666-20 MID smart meter med 3×100 A split-core CT-klemmer.
Garanti: 10 år (120 måneder).
Power & Energy
- Power Output
- 20000 W
- Nominal Power
- 20000 W
- Peak Power
- 32000 VA (10 s backup)
- Efficiency
- 98.1% (EU 97.6%)
- Transfer Time
- <10 ms
- Phase Type
- three-phase
- Inverter Type
- hybrid
- Power
- 20
Battery
- Battery Type
- Li-ion HV
- Battery Voltage
- 100–700 V
- Max Charge Current
- 50 A
- Max Discharge Current
- 50 A
Solar
- Input Voltage
- 150–950 V (MPPT), max 1000 V
- Output Voltage
- 3/N/PE, 230/400 V
- Voltage
- 600 V (rated)
- Frequency
- 50/60 Hz
- MPPT Range
- 150–950 V
- Max PV Power
- 40000 Wp
- Max PV Voltage
- 1000 V
- Max PV Current
- 30 A per MPPT
- Grid Tie
- Yes, with anti-islanding
- MPPT Count
- 3
Physical
- Dimensions
- 620 × 480 × 245 mm
- Weight
- 38 kg
- Installation Type
- Wall-mounted
- Mounting Options
- Wall bracket (included)
Environmental
- Operating Temperature
- –25 °C to +60 °C
- Protection Rating
- IP65 (C5)
- Cooling
- Fan
- Noise Level
- ~50 dB(A)
Features & Compatibility
- Warranty
- 120 months (10 years)
- Certifications
- IEC/EN 62109, EN 62477-1, EN 50549-1, VDE-AR-N-4105, CE
- Communication
- RS485, WLAN, Ethernet, CAN
- Monitoring
- iSolarCloud (app/web)
