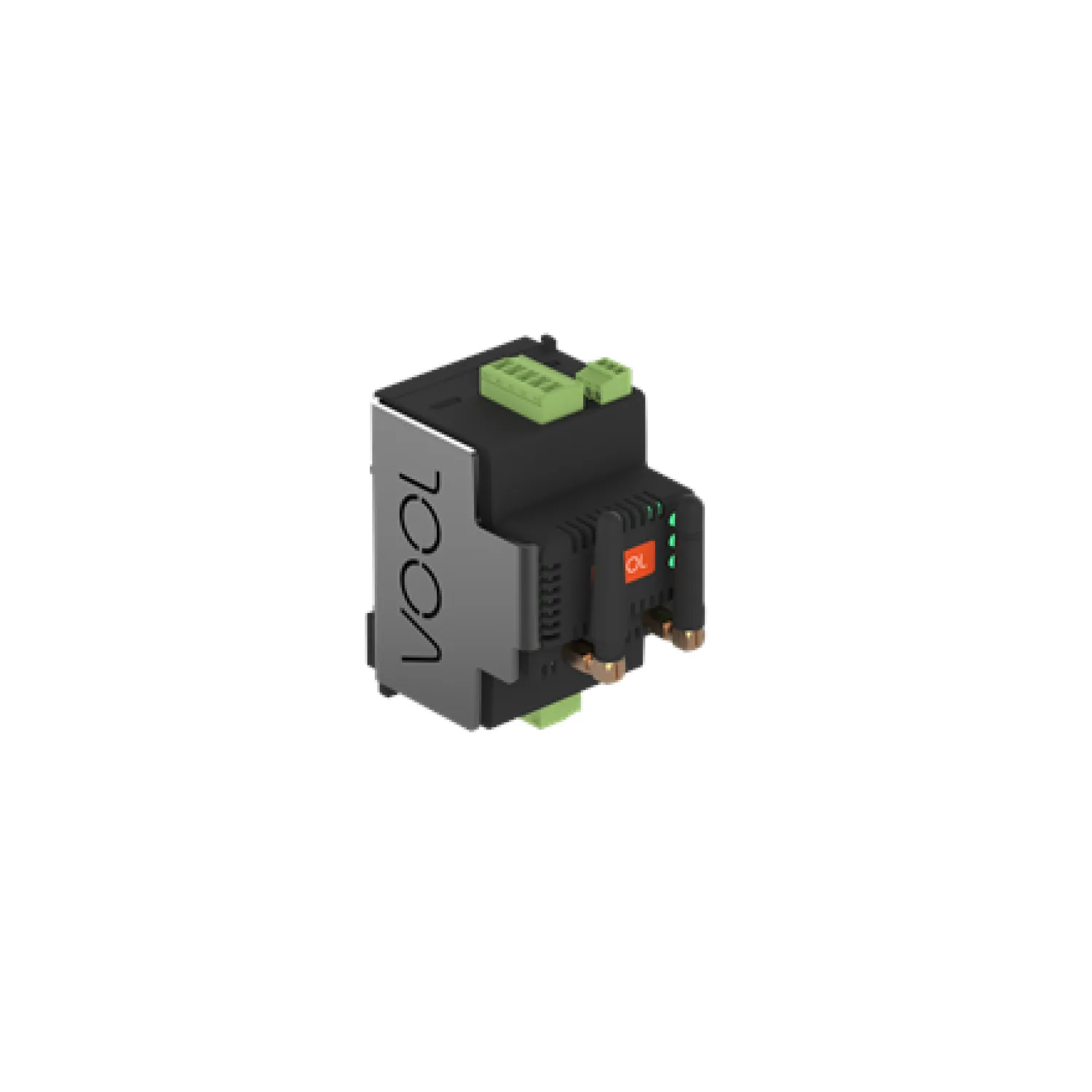

VOOL LMC 100A Load Management Unit

The VOOL LMC 100A is a high-capacity Load Management Controller engineered to optimize EV charging across residential complexes, commercial sites, and fleet environments.

Designed to work seamlessly with VOOL EV chargers, this smart unit continuously monitors real-time electrical consumption and dynamically adjusts charging currents to prevent overloads on 100 A grid connections.

With support for up to 64 chargers on a single building feed, automatic phase balancing, and a wide range of connectivity options — including Ethernet, Wi-Fi, 4G, RS485, and CAN — the LMC 100A ensures maximum efficiency, safety, and reliability in power-constrained infrastructures.

Specifications

Load Management Capacity

• 100 A per phase

Charger Support

• Up to 64 VOOL EV chargers on a shared connection

Dynamic Load Management (DLM)

• Real-time load monitoring
• Automatic redistribution of current between phases
• Prevents blown fuses and protects critical building loads

Automatic Phase Balancing

• Enables uninterrupted charging by shifting between underused phases

Connectivity Options

• Ethernet (10/100 Mbps)
• Wi-Fi (IEEE 802.11 b/g/n)
• 4G LTE (eSIM)
• Bluetooth
• RS485 and CAN bus for charger communication

Electrical

• Operating voltage: 90–265 VAC, 50/60 Hz
• Compatible CTs: 100 A (split-core); optional 50 A or 200 A for scaling

Installation

• DIN-rail or screw mount inside an electrical panel
• Dimensions: 85 × 85 × 59 mm

Environmental

• Operating temperature: –25 °C to +65 °C
• Enclosure rating: Indoor, CAT III

Safety & Certifications

• CE and RoHS compliant
• Conforms to LVD and EMC directives (EN standards)

Warranty

• 5 years
