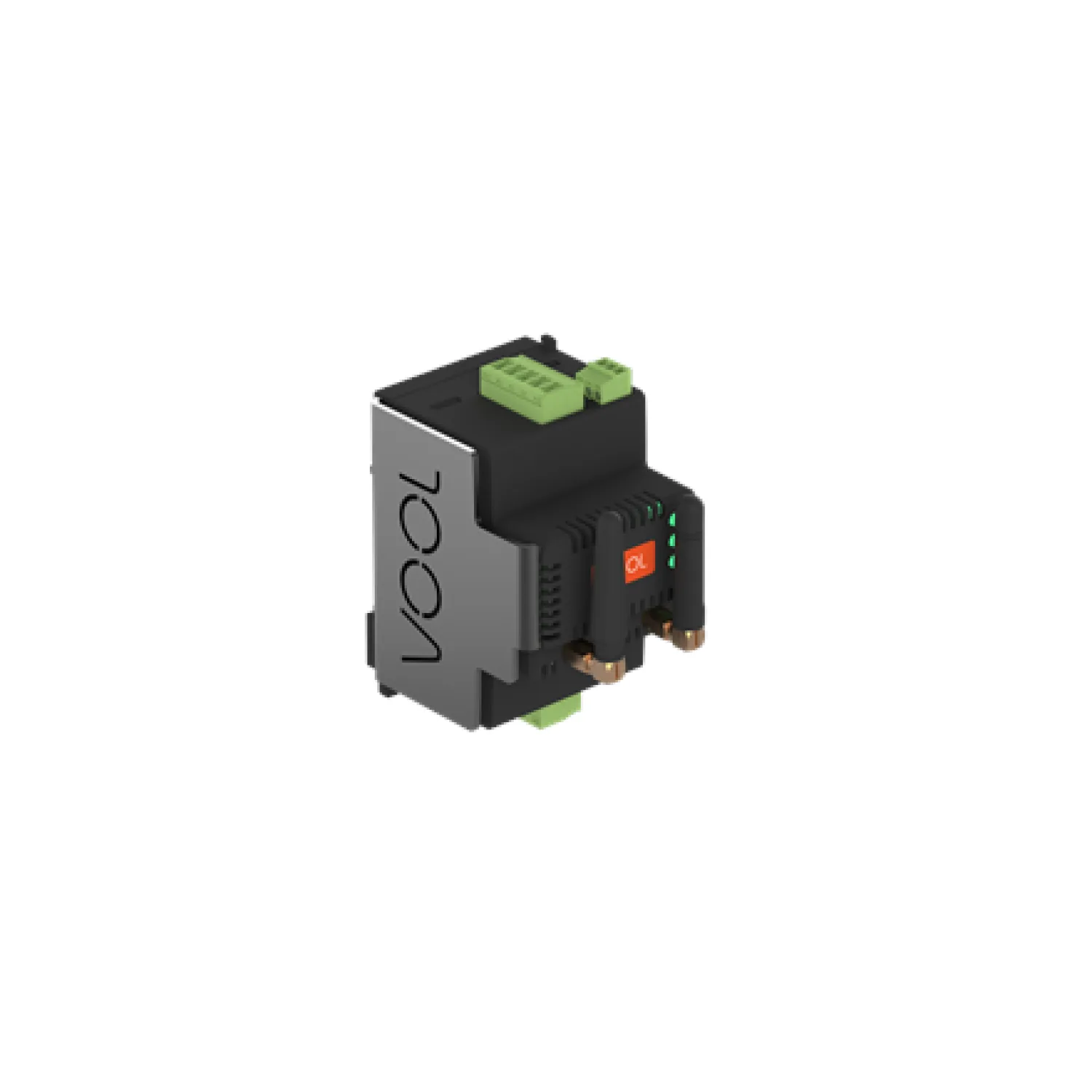

VOOL LMC 50A Load Management Unit

The VOOL LMC 50A is a smart Load Management Controller designed to prevent main fuse overloads in residential and commercial EV charging installations. By dynamically monitoring total energy consumption and intelligently distributing load across phases, the LMC ensures stable, uninterrupted charging—even on limited grid connections.
 This compact unit allows up to 64 VOOL chargers to operate on a single building connection, optimizing available electrical capacity without costly infrastructure upgrades. Featuring automatic phase balancing, dynamic load balancing, and real-time monitoring, it’s an essential part of any smart EV infrastructure.

Specifications:

• Load Monitoring Capacity: 50 A per phase
• Charger Support: Up to 64 VOOL chargers on a shared grid connection
• Dynamic Load Management (DLM): Real-time load monitoring; automatic current redistribution between phases; protects building loads
• Automatic Phase Balancing: Shifts charging between underused phases
• Connectivity: Ethernet (10/100), Wi-Fi (802.11 b/g/n), 4G LTE (eSIM), Bluetooth, RS485 (Modbus RTU), Modbus TCP/UDP, CAN
• Electrical: 90–265 VAC, 50/60 Hz; supports 3-phase 230/400 VAC
• CTs: 50 A (standard), optional 100 A or 200 A for scaling
• Installation: DIN-rail or screw mount in panel; device dims: 61 × 87 × 77 mm
• Environment: –20…+55 °C; indoor IP22
• Safety: CE, RoHS; conforms to LVD/EMC
• Warranty: 5 years
