Dyness

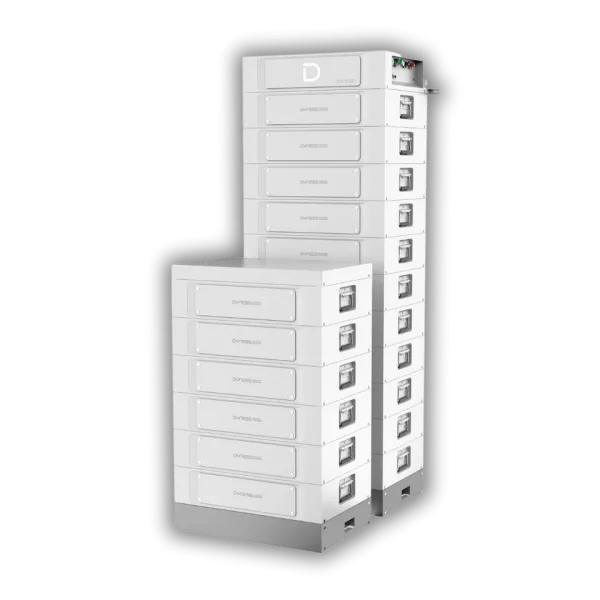

Dyness Stack100 30,72 kWh Energy Storage System
Codice Prodotto: 603-6897257455d24
Panoramica
The Dyness STACK100 is an advanced high-voltage energy storage system engineered for residential and small commercial applications. Utilizing ultra-safe lithium iron phosphate (LiFePO4) battery technology, it offers a scalable energy capacity ranging from 15.36kWh to 76.8kWh, accommodating diverse energy requirements.
Disponibile
Specifiche Tecniche
The Dyness STACK100 is an advanced high-voltage energy storage system engineered for residential and small commercial applications. Utilizing ultra-safe lithium iron phosphate (LiFePO4) battery technology, it offers a scalable energy capacity ranging from 15.36kWh to 76.8kWh, accommodating diverse energy requirements.
Parameters:
Battery Type: LiFePO₄
Usable Capacity: 30.72 kWh
Number of Battery Modules: 3
Operating Voltage Range: 134–864 V
Depth of Discharge (DoD): 95%
Charging Temperature Range: 0–50°C
Discharging Temperature Range: -20–50°C
Protection Rating: IP20
Service Life: Unlimited number of cycles / 10 years
Communication Interfaces: CAN, RS485
Certifications: CE-EMC, CE-RED, IEC62619, IEC63056, IEC62477, IEC62040, UN38.3
Power & Energy
- Capacity
- 30.72
