Solis

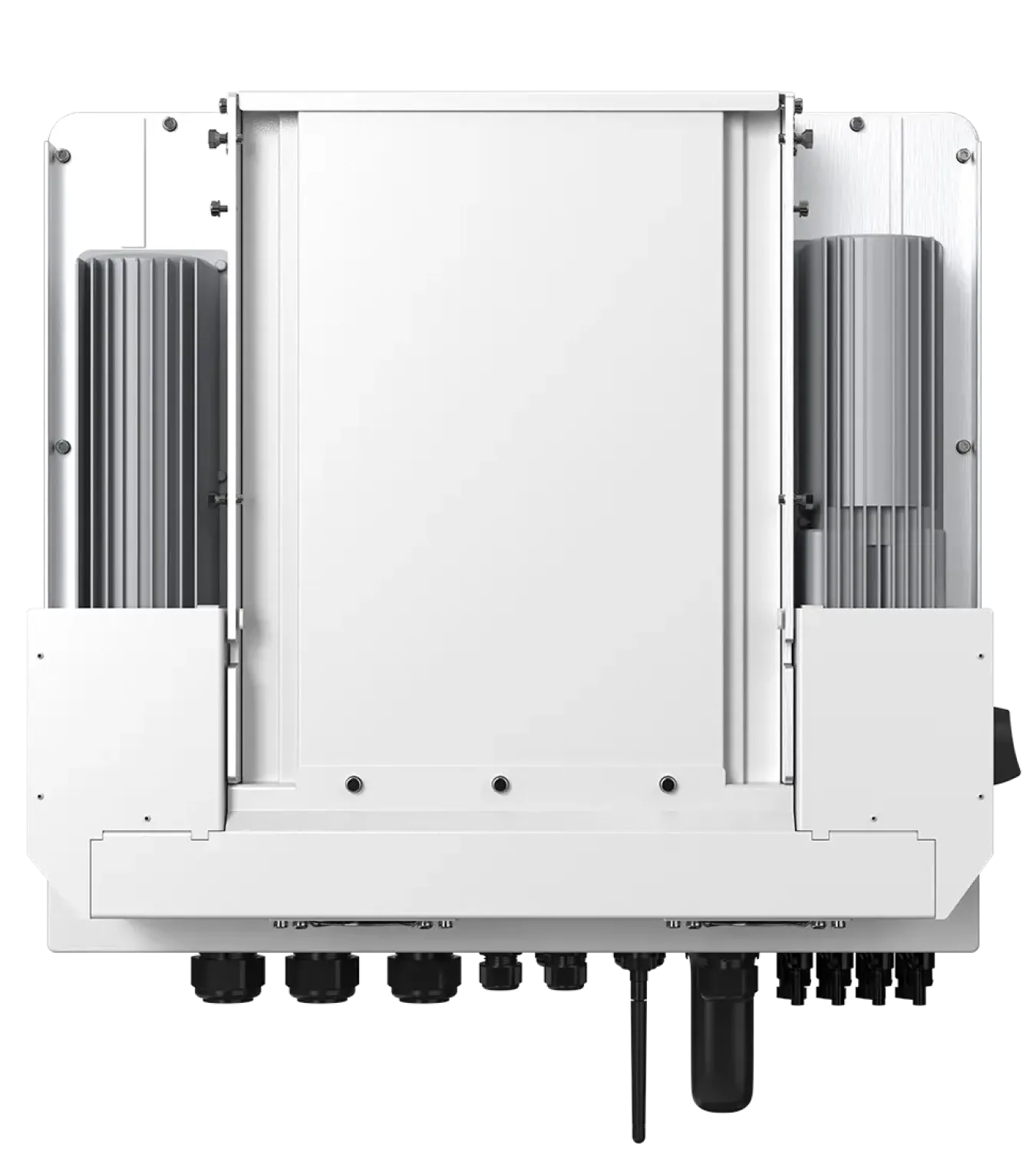

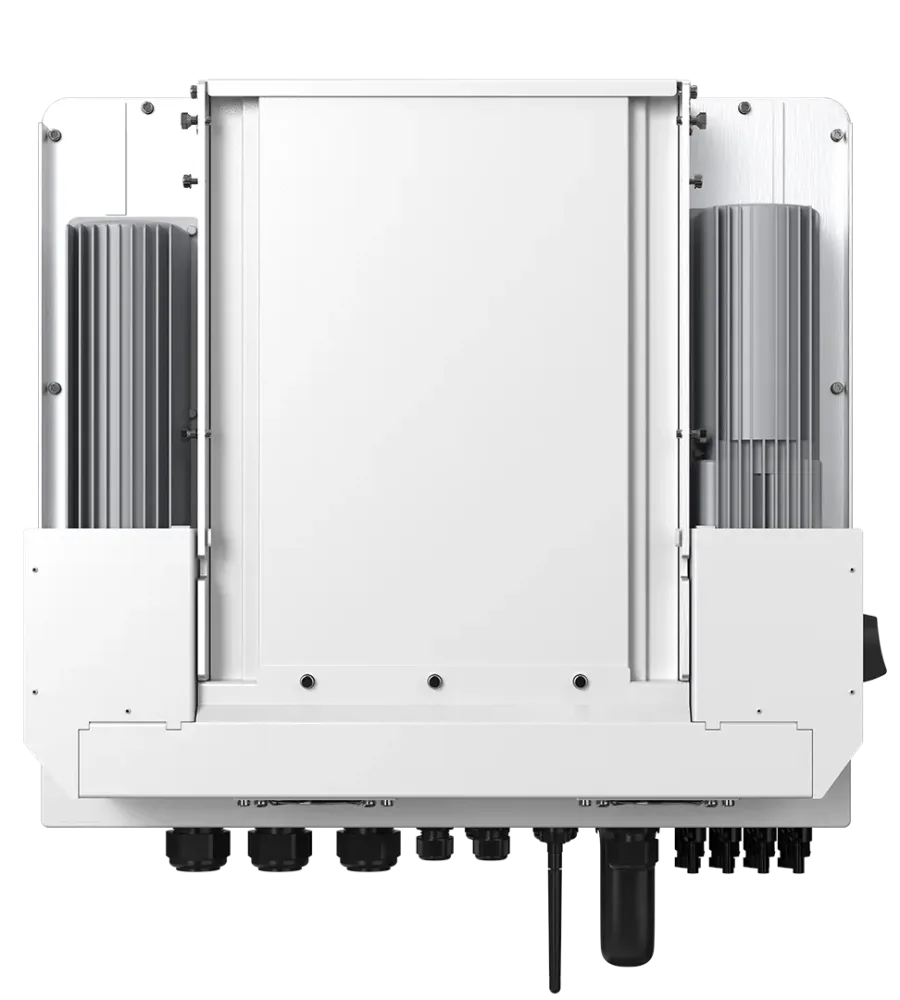

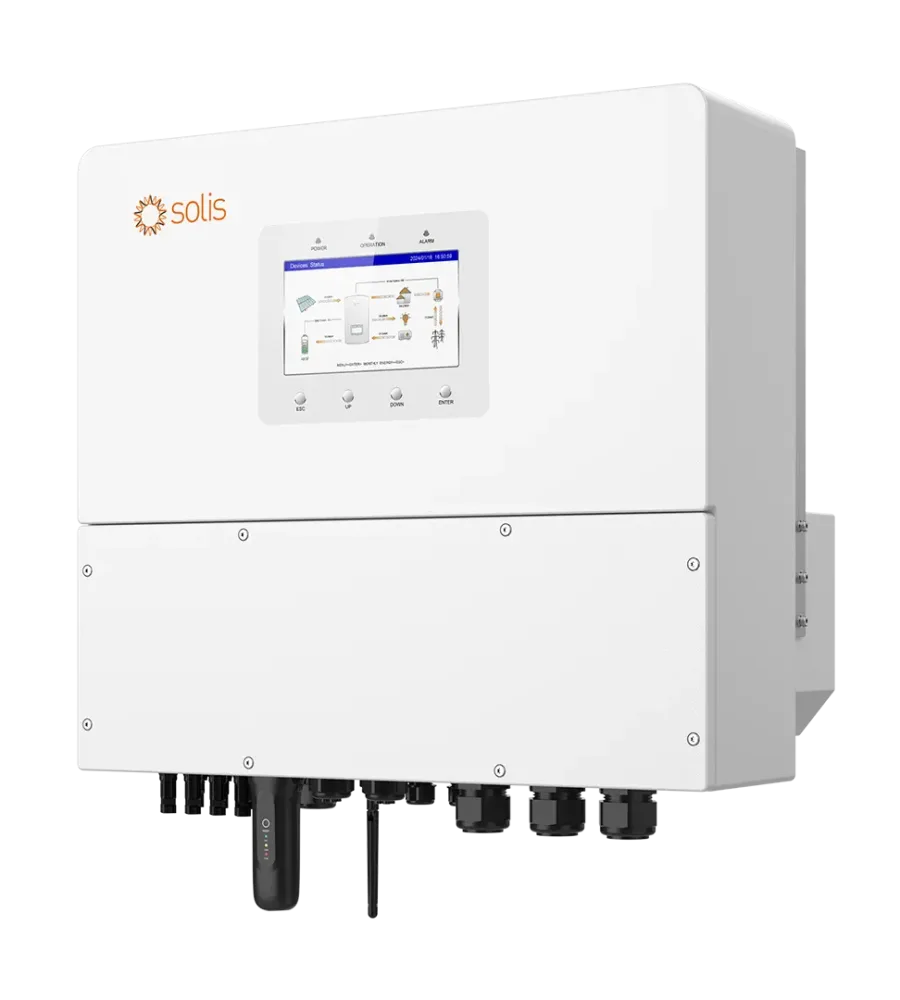

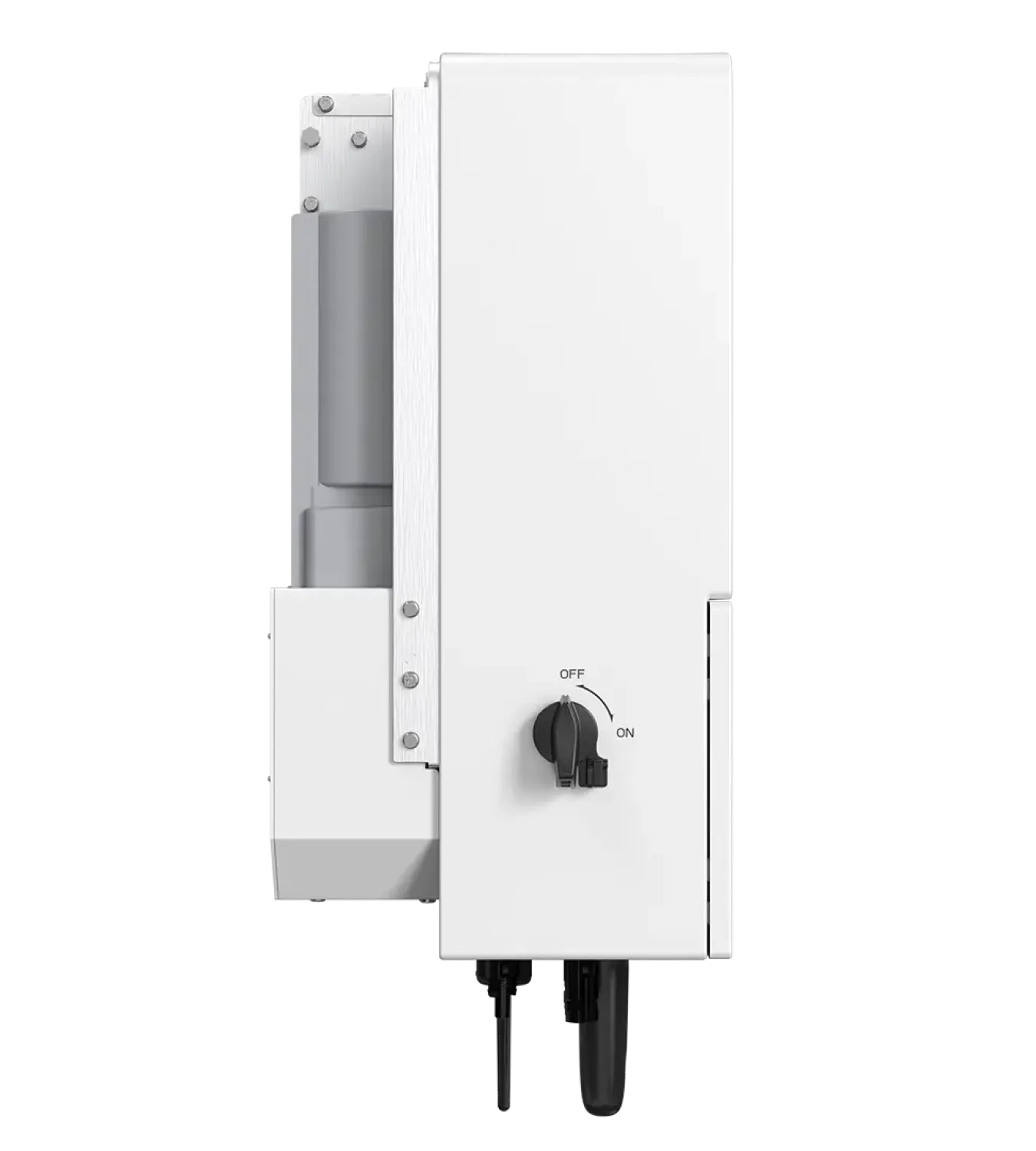

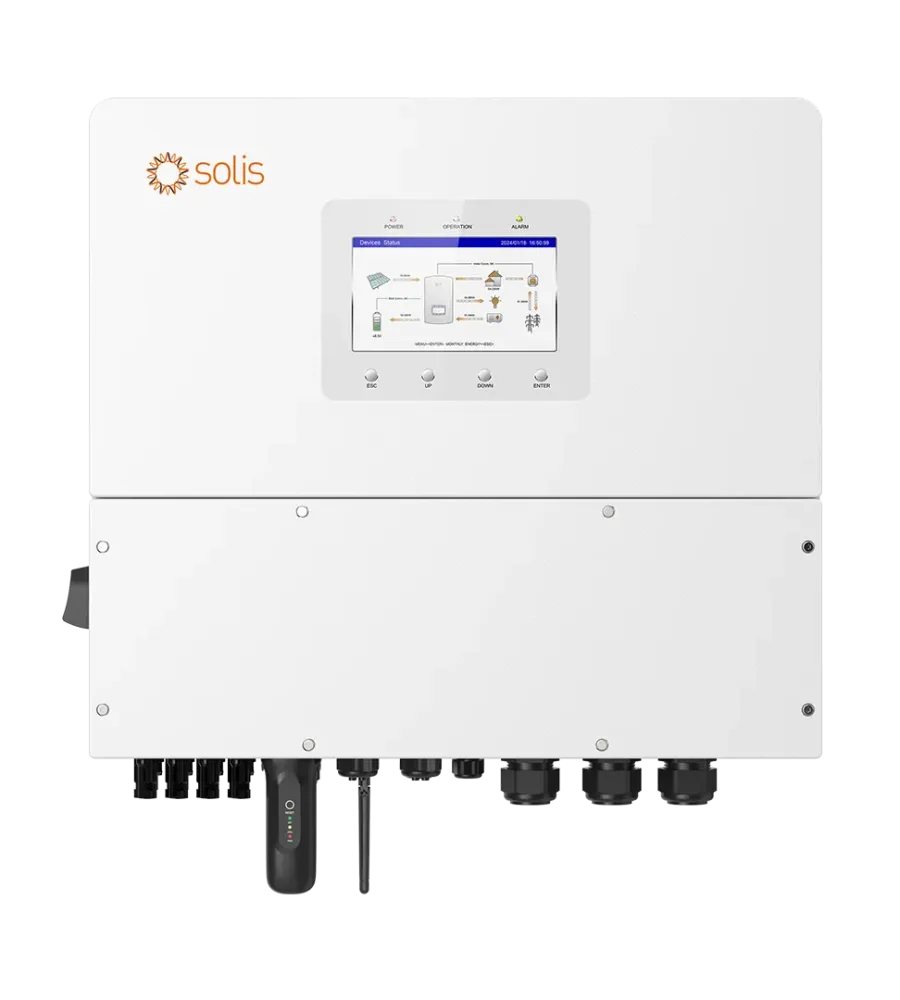

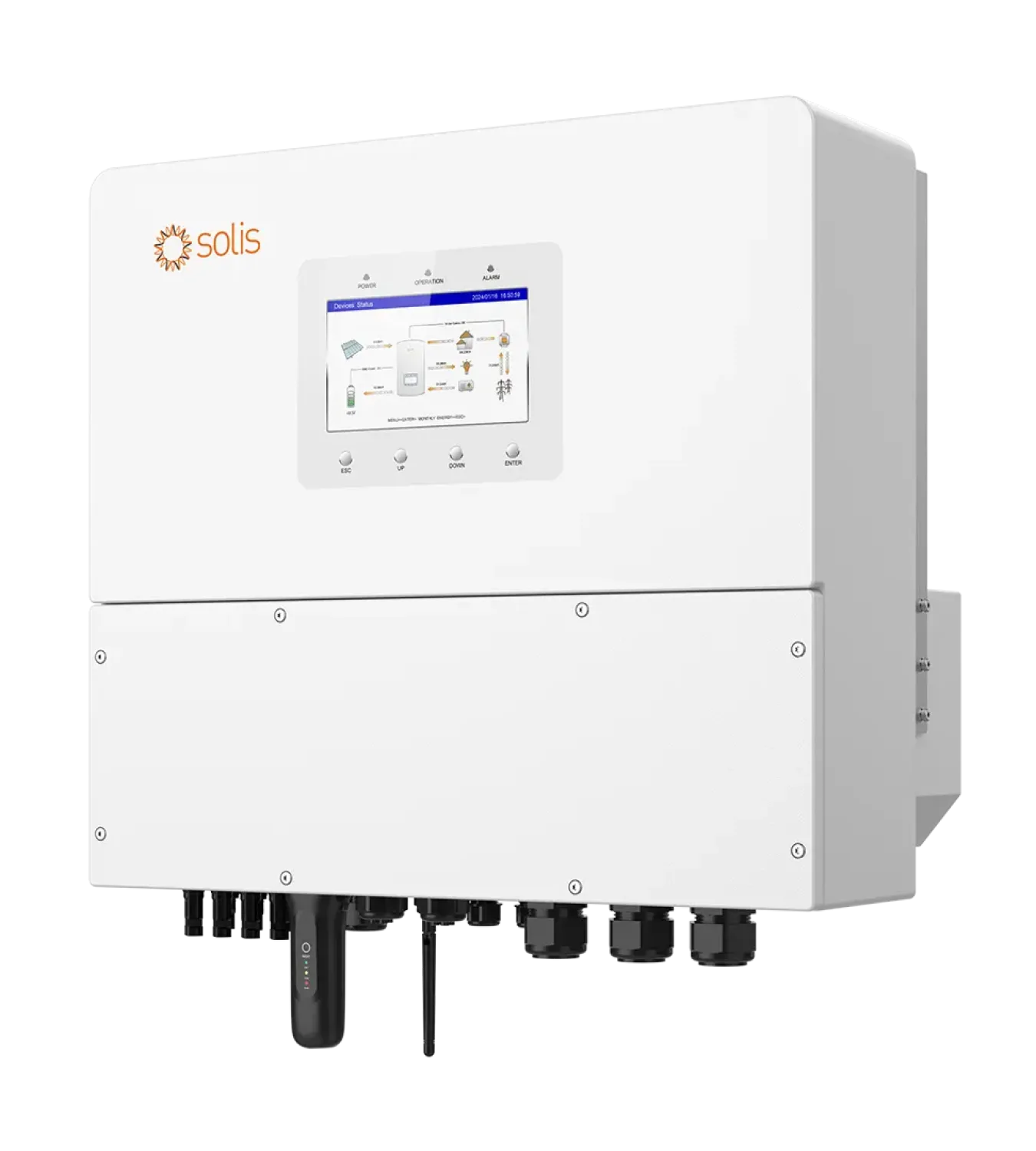

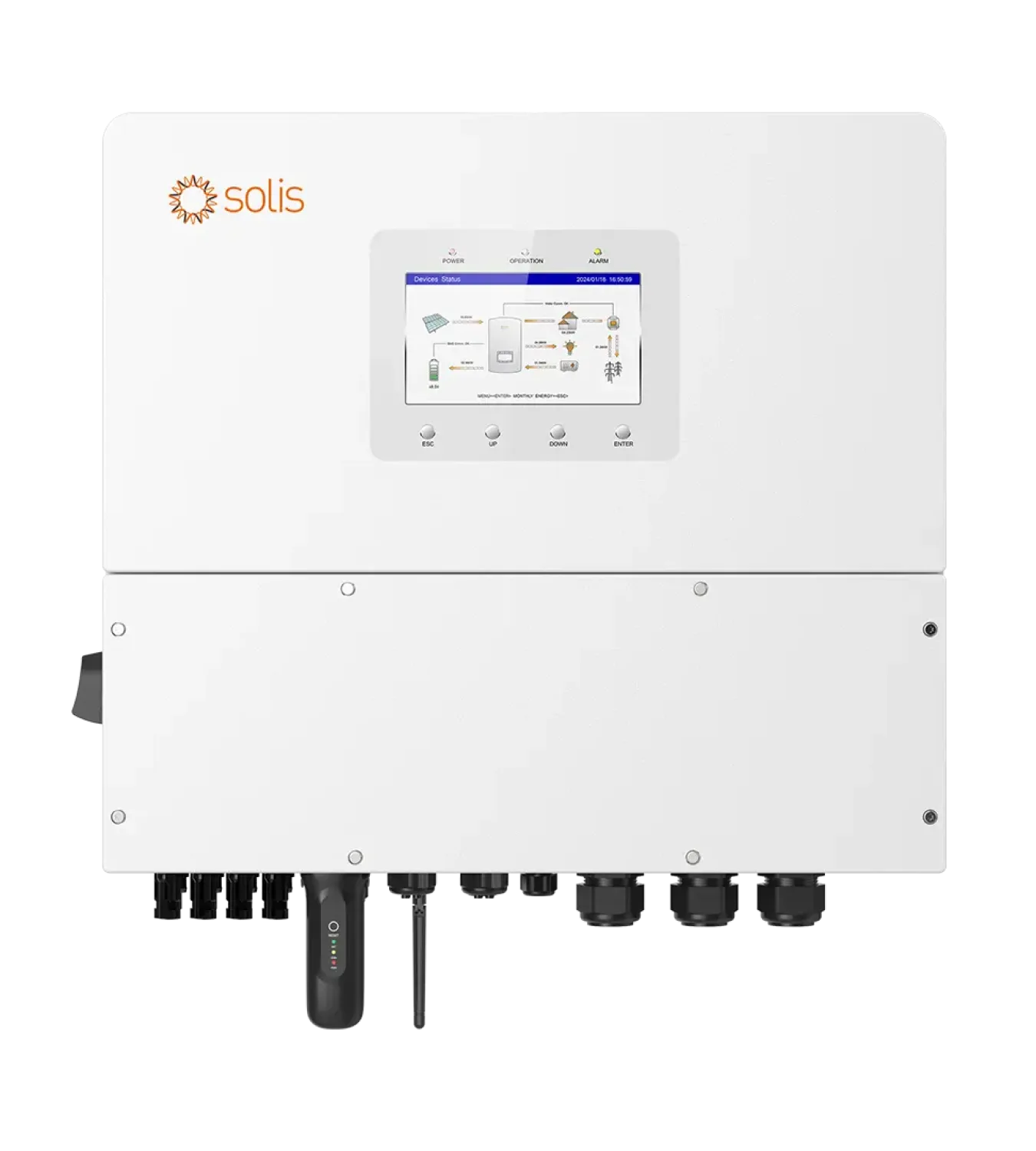

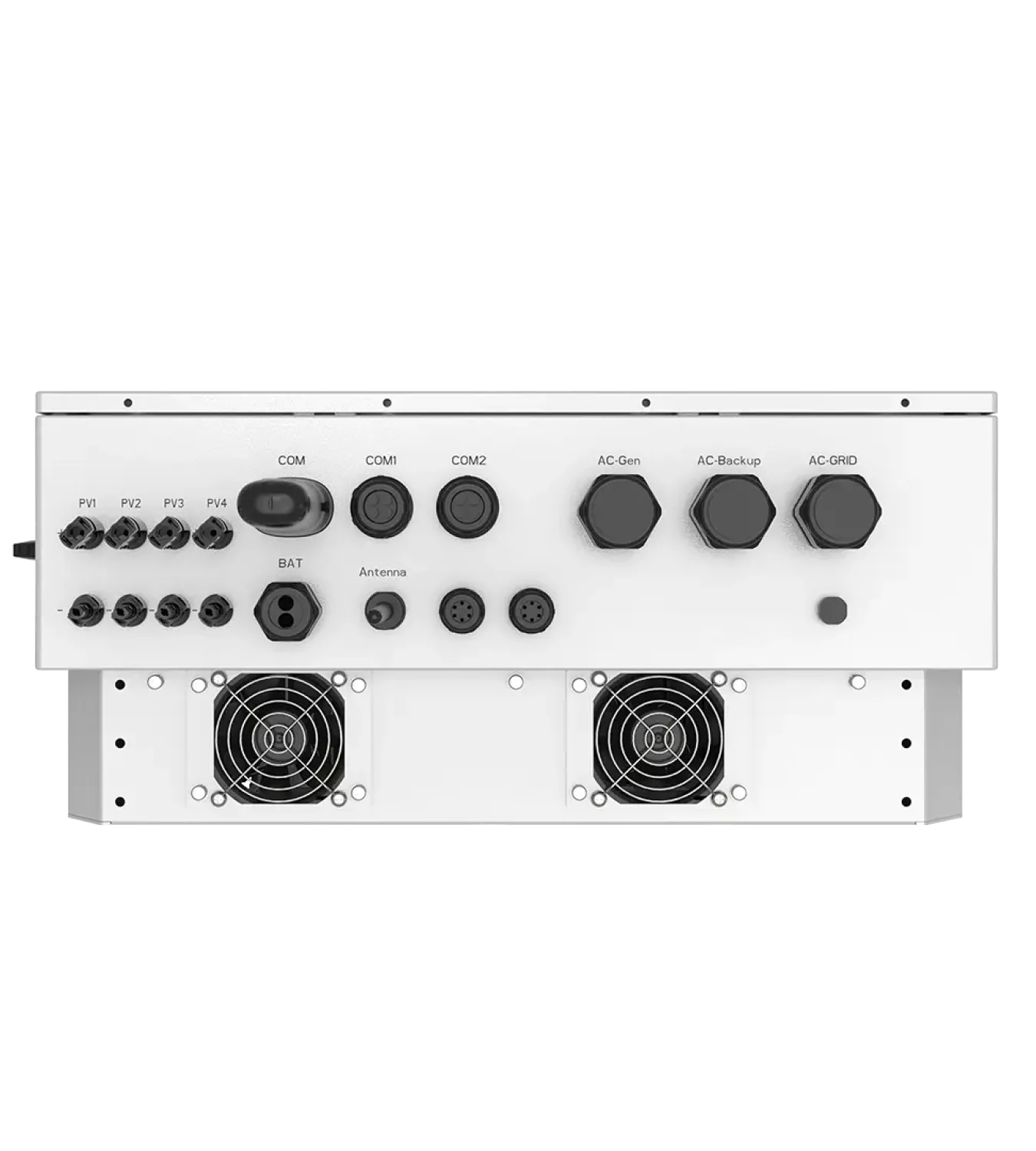

Solis hybrid inverter S6-EH3P15K-H
Productcode: S6-EH3P15K-H
Op voorraad
Technische specificaties
The Solis S6‑EH3P15K‑H‑EU delivers advanced hybrid inverter performance, combining 15 kW AC output, seamless integration with high-voltage lithium-ion batteries (120 – 800 V), and intelligent energy management through SolisCloud. With 4 independent MPPT channels, it maximizes PV input flexibility and efficiency—boasting up to 97.7 % max efficiency and 97.5 % EU efficiency. Backup power capability offers 1.6× rated load for 10 seconds and < 10 ms switchover, ensuring uninterrupted operation during grid outages. Designed for tough environments, it features IP66-rated, fan-cooled construction, supports parallel expansion (up to 6 units), and offers rich connectivity: CAN, RS485, Ethernet, with optional Wi‑Fi, LAN, Cellular, and Bluetooth.
Power & Energy
- Power Output
- 15000 W
- Nominal Power
- 15000 W
- Peak Power
- 24000 W (10 s overload)
- Surge Power
- 24000 W
- Efficiency
- 97.5%
- Power Factor
- >0.99 (0.8 leading – 0.8 lagging adjustable
- THD
- < 3 %
- Transfer Time
- < 10 ms
Battery
- Battery Type
- High-voltage Li-ion / LiFePO₄
- Battery Voltage
- 120 – 800 V DC
- Max Charge Current
- 50 A
- Max Discharge Current
- 50 A
- Charging Modes
- Solar, Grid, Generator
Solar
- Input Voltage
- 1000 V DC (max)
- Output Voltage
- 600 V DC (rated)
- Voltage
- 600 V DC (rated)
- Frequency
- 50 / 60 Hz
- MPPT Range
- 200 – 850 V DC
- Max PV Power
- 30 kW max array size / 24 kW usable PV power.
- Max PV Voltage
- 1000 V DC
- Max PV Current
- 30 A per MPPT (4 MPPTs, 8 strings total)
- Grid Tie
- Yes, with anti-islanding protection
Physical
- Dimensions
- 563 × 546 × 250 mm
- Weight
- 35.2 kg
- Installation Type
- Wall-mounted
- Mounting Options
- Wall bracket included
Environmental
- Operating Temperature
- –25 °C to +60 °C
- Protection Rating
- IP66
- Cooling
- Intelligent fan cooling
- Noise Level
- < 65 dB(A)
Features & Compatibility
- Warranty
- 10 years
- Certifications
- CE, TUV, IEC 62109, EN 50549-1, VDE-AR-N 4105
- Compatibility
- Works with high-voltage lithium batteries (e.g., Dyness, BYD, Pylontech, LG, Soluna)

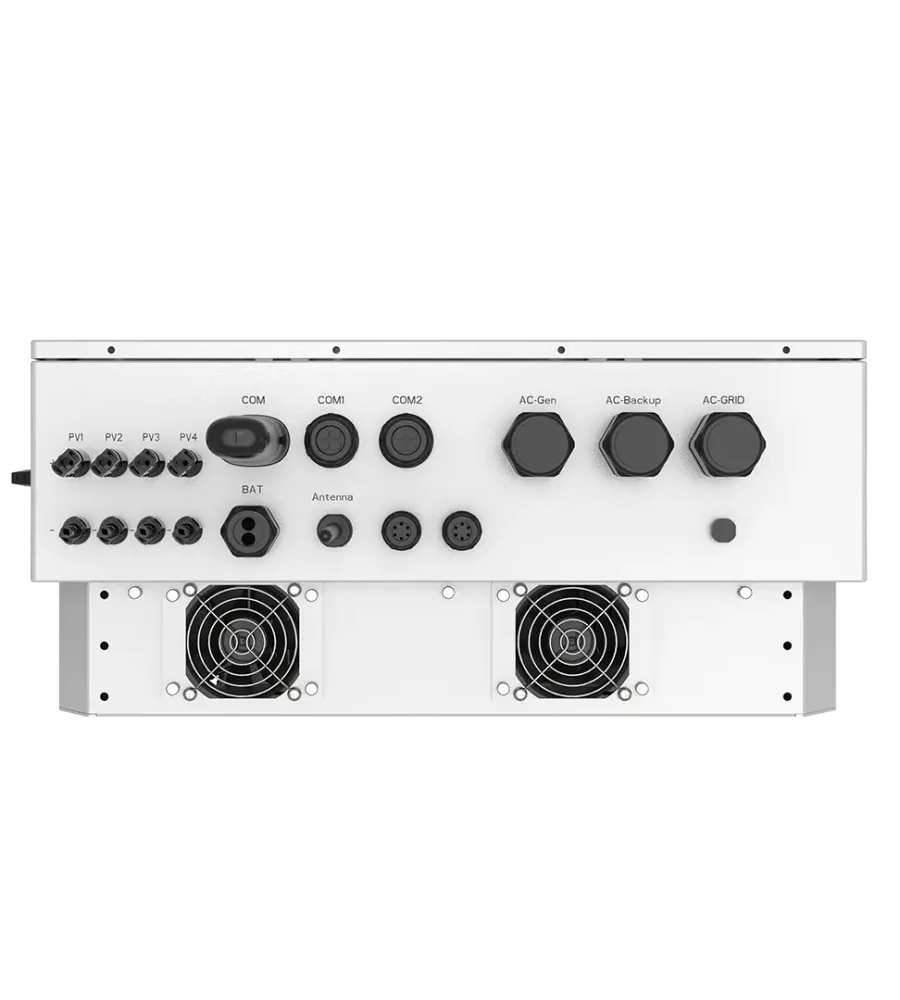

- Communication
- CAN, RS485, Ethernet; optional WiFi, LAN, 4G
- Display
- LCD + LED indicators, app interface
- Monitoring
- SolisCloud platform, app-based remote monitoring
- Parallel Capability
- Up to 6 units
