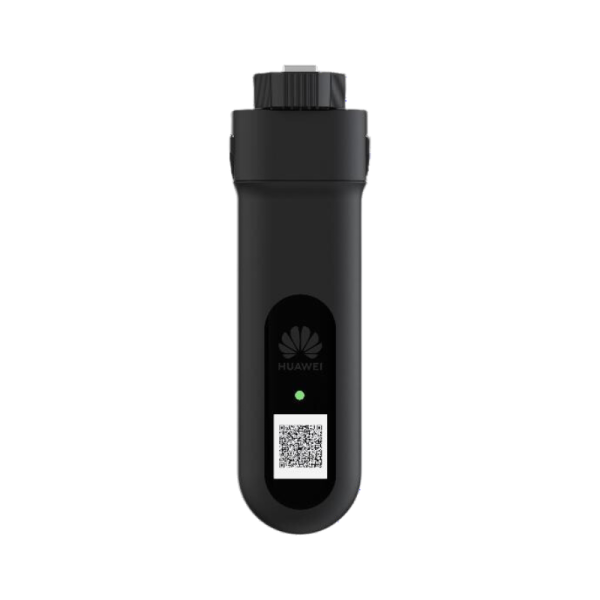

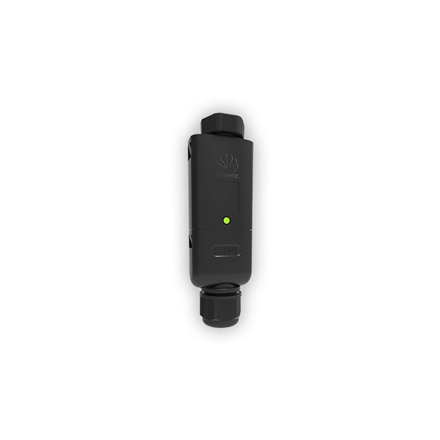

Huawei | 4G Smart Dongle
90.00€
Via 4G connection, Smart Dongle supports up to 10 inverters to communicate with the solar management system through hassle-free plug and play.
- Description
- Huawei Brand
Description
Enhance your solar energy system’s connectivity with the Huawei Smart Dongle-4G. This compact, plug-and-play device allows up to 10 Huawei inverters to communicate seamlessly with solar management systems via a stable 4G connection. Its robust IP65-rated design ensures durability against dust and water, making it ideal for outdoor installations. With support for a wide range of wireless standards and frequencies, and compatibility with various Huawei inverter models, the Smart Dongle-4G is a reliable solution for efficient solar energy monitoring and management.
Parameters:
Model: SDongleB-06-EU
Maximum Supported Devices: 10 inverters
Connection Interface: USB
Installation: Plug-and-play
Indicator: LED
Dimensions: 162 mm × 48 mm × 28 mm
IP Rating: IP65 (dustproof and waterproof)
Power Consumption: Typical 3.5 W
SIM Card Type: Mini-SIM (15 mm × 25 mm)
Supported Wireless Standards & Frequencies:
LTE-FDD: Bands B1/B3/B7/B8/B20/B28
LTE-TDD: Bands B38/B40/B41
GSM: 850/900/1800/1900 MHz
Wi-Fi Operation Mode: Access Point (AP)
Wi-Fi Standards: 802.11b/g/n (2.412–2.484 GHz)
Environmental Specifications:
Operating Temperature Range: –30°C to +65°C (–22°F to +149°F)
Storage Temperature Range: –40°C to +70°C (–40°F to +158°F)
Relative Humidity Range: 5%–95% RH
Maximum Operating Altitude: 4,000 m (13,123 ft.)
Certifications: CE
Inverter Compatibility: Compatible with various Huawei inverter models, including SUN2000 series .
Huawei is a global technology leader offering smart solar solutions. With advanced inverters, energy storage, and intelligent management systems, Huawei combines digital technology with clean energy to deliver efficient, reliable, and future-ready solar systems.
