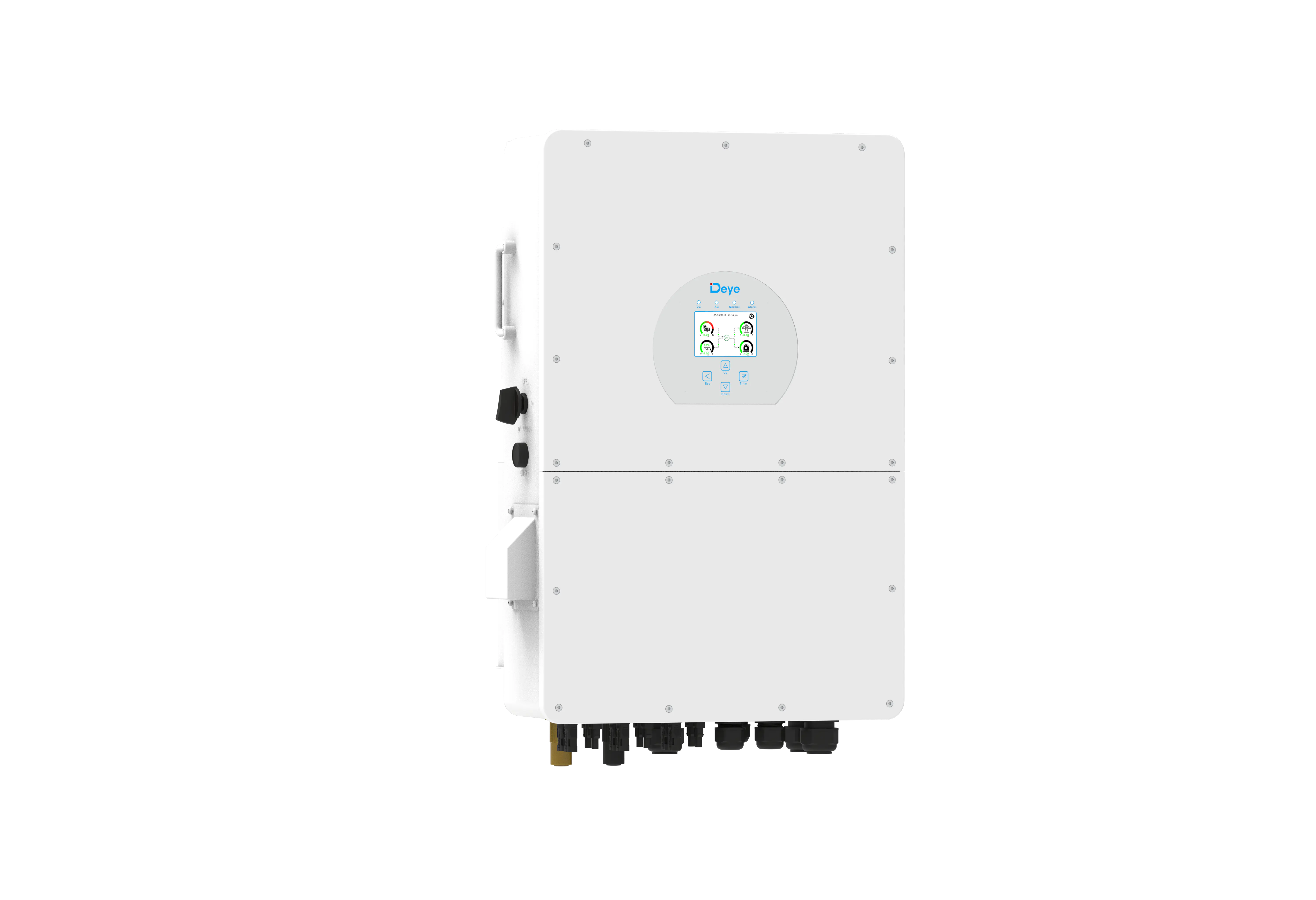

Deye Inverter Hybrid HV 30kW 3MPPT | SUN-30K-SG02HP3-EU-AM3
Product Code: DEYE-SUN-30K-SG02HP3-EU-AM3
€2,539.00
+ VAT based on country
The Deye SUN-30K-SG02HP3-EU-AM3 is a high-voltage three-phase hybrid inverter designed for commercial and large residential photovoltaic systems. It supports battery storage, advanced energy management, and parallel operation for flexible system expansion.
Key Features
- AC nominal output of 30000 W
- Three-phase grid connection
- Three MPPT trackers for optimized performance
- Maximum PV input voltage up to 1000 V
- High efficiency up to 98.5%
- Supports Wi-Fi, LAN, Bluetooth, and 4G (optional)
- RS485, RS232, and CAN communication interfaces
- Compatible with energy storage systems
- Supports smart monitoring and remote control
- Integration with energy management systems
- Hybrid inverter with battery support
- Max charging/discharging current up to 75 A
- Parallel operation up to 10 units
- 100% unbalanced output on each phase
- Supports AC coupling and generator integration
- Compact wall-mounted design
- Robust enclosure with IP65 protection
- Efficient cooling system for stable operation
- Suitable for indoor and outdoor installations
- Integrated protection features (overvoltage, short circuit, thermal)
- Anti-islanding protection
- Compliant with IEC and international standards
- Reliable long-term operation
- Commercial solar systems
- Industrial photovoltaic installations
- Large residential solar systems
- Hybrid energy storage solutions
- Backup power and off-grid applications
Technical Specifications
General
- Brand
- Deye
- Model
- Deye Inverter Hybrid HV 30kW 3MPPT | SUN-30K-SG02HP3-EU-AM3
- SKU
- DEYE-SUN-30K-SG02HP3-EU-AM3
- Power Output
- 30000W
- Voltage
- 600 V DC
- Efficiency
- 98.5%
- Dimensions
- 448 × 688 × 270 mm
- Weight
- 46 kg
- Warranty
- 120 months
Technical
- Battery Type
- Lithium-ion
- Battery Voltage
- 160–700 V DC
- Max Charge Current
- 75A
- Max Discharge Current
- 75A
- Input Voltage
- 150–850 V DC
- Output Voltage
- 3~ 230/400 V AC
- Frequency
- 50/60 Hz
- MPPT Range
- 150–850 V DC
- Max PV Power
- 48000W
- Max PV Voltage
- 1000 V DC
- Max PV Current
- 36A + 36A + 36A
- Nominal Power
- 30000W
- Peak Power
- 45000W
- Surge Power
- 1.5× rated power
- THD
- <3%
- Power Factor
- 0.8–0.8
- Operating Temperature
- -40°C to +60°C
- Protection Rating
- IP65
- Cooling
- Intelligent air cooling
- Noise Level
- ≤55 dB
- Certifications
- IEC, EN
- Compatibility
- High-voltage battery systems
- Communication
- RS485, RS232, CAN, WiFi, LAN, Bluetooth, 4G
- Display
- LCD + LED
- Monitoring
- App-based / remote monitoring
- Parallel Capability
- Up to 10 units
- Grid Tie
- Yes, with anti-islanding
- Charging Modes
- Solar, Grid, Generator
- Installation Type
- Wall-mounted
- Mounting Options
- Wall bracket
The Deye SUN-30K-SG02HP3-EU-AM3 Hybrid Inverter is a powerful three-phase solution designed for commercial and large-scale residential photovoltaic systems. It delivers efficient solar energy conversion while enabling advanced energy storage integration and intelligent system control.
Equipped with three MPPT trackers, the inverter optimizes solar production even in complex installations with multiple panel orientations. It supports high-voltage lithium-ion batteries and provides efficient energy storage with a wide battery voltage range, ensuring maximum system flexibility and performance.
The inverter features advanced hybrid functionality, allowing simultaneous energy flow between solar panels, batteries, grid, and loads. It supports up to 10 units in parallel for both on-grid and off-grid operation, making it ideal for scalable energy systems. Additionally, it enables AC coupling for retrofitting existing solar installations.
With intelligent energy management, the system allows programmable charging and discharging schedules with up to six time periods, optimizing energy usage and reducing costs. It also supports integration with diesel generators for enhanced energy reliability in hybrid setups.
Core Electrical Characteristics
- AC nominal output of 30000 W
- Three-phase grid connection
- Three MPPT trackers for optimized performance
- Maximum PV input voltage up to 1000 V
- High efficiency up to 98.5%
Connectivity and Integration
- Supports Wi-Fi, LAN, Bluetooth, and 4G (optional)
- RS485, RS232, and CAN communication interfaces
- Compatible with energy storage systems
- Supports smart monitoring and remote control
- Integration with energy management systems
System Performance and Control
- Hybrid inverter with battery support
- Max charging/discharging current up to 75 A
- Parallel operation up to 10 units
- 100% unbalanced output on each phase
- Supports AC coupling and generator integration
Design and Installation
- Compact wall-mounted design
- Robust enclosure with IP65 protection
- Efficient cooling system for stable operation
- Suitable for indoor and outdoor installations
Safety and Compliance
- Integrated protection features (overvoltage, short circuit, thermal)
- Anti-islanding protection
- Compliant with IEC and international standards
- Reliable long-term operation
Typical Applications
- Commercial solar systems
- Industrial photovoltaic installations
- Large residential solar systems
- Hybrid energy storage solutions
- Backup power and off-grid applications
