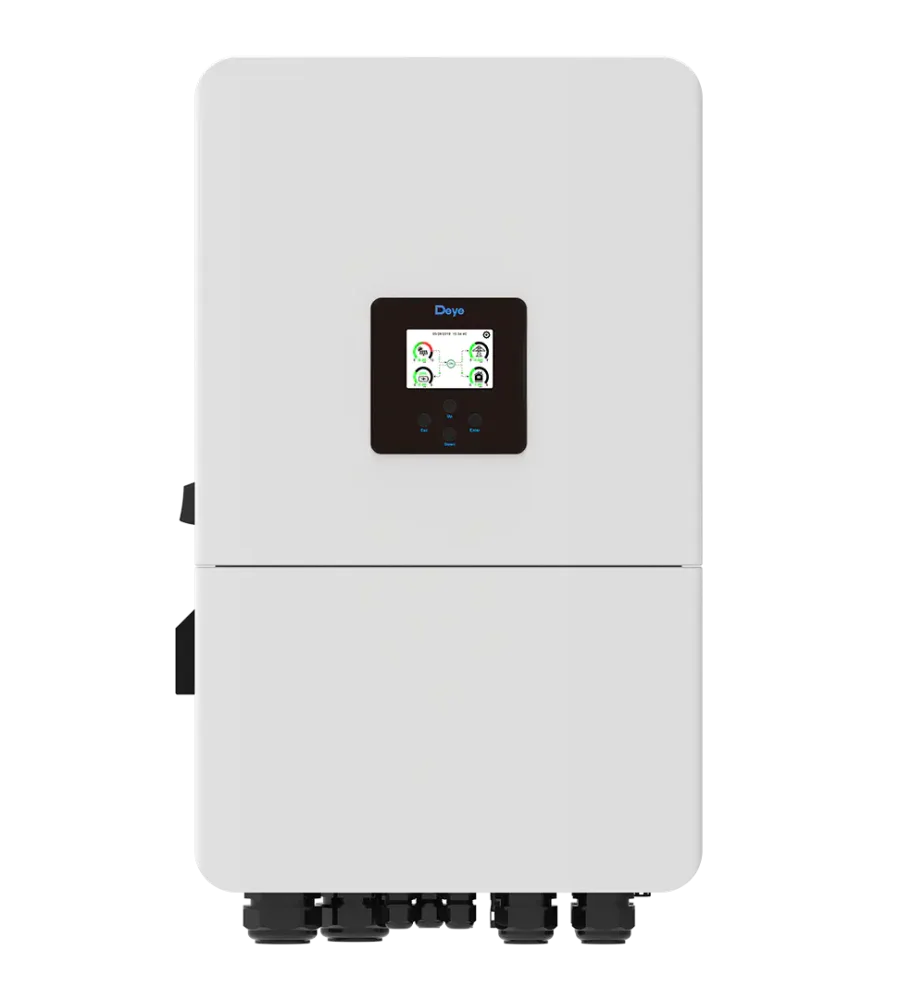

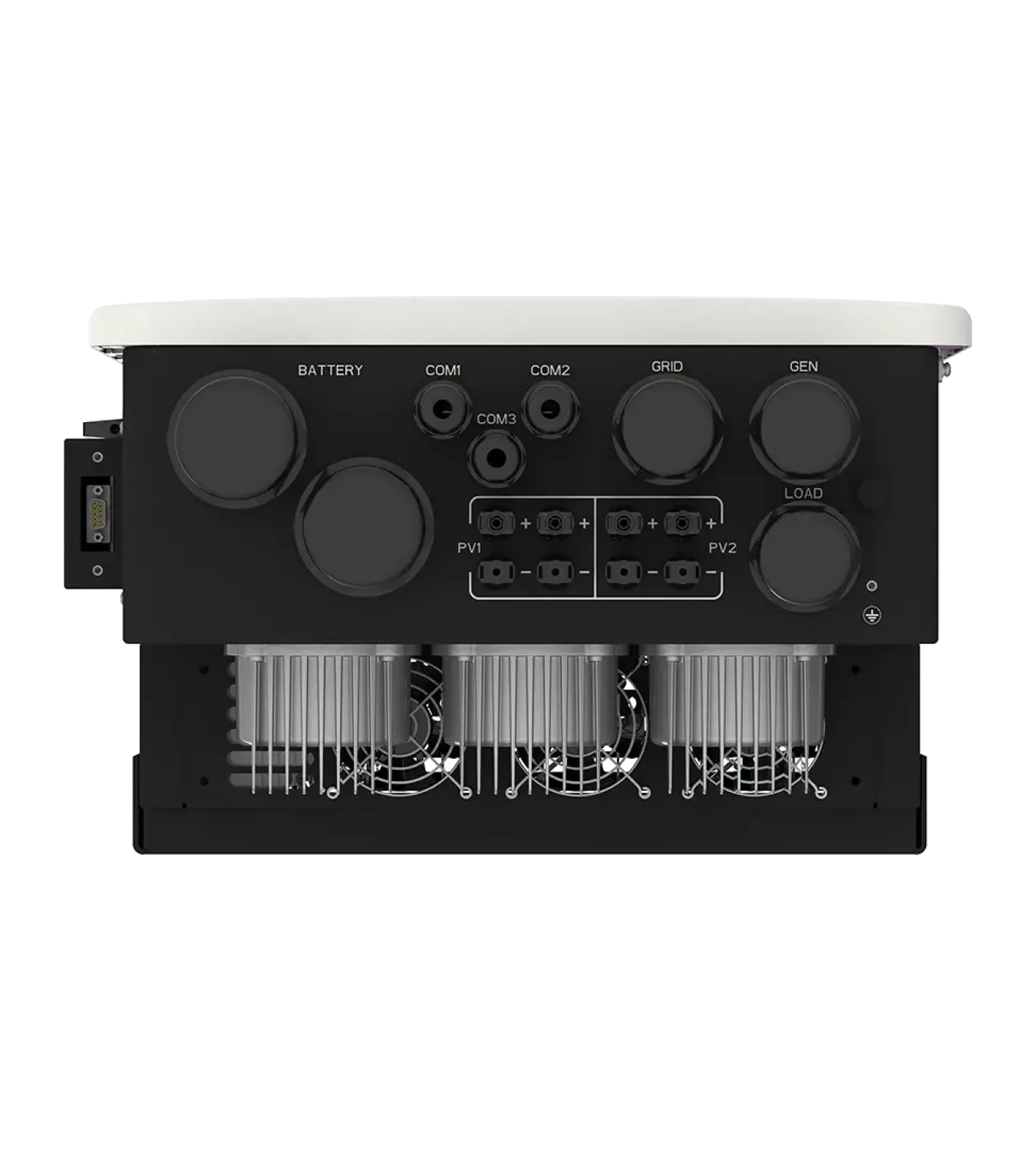

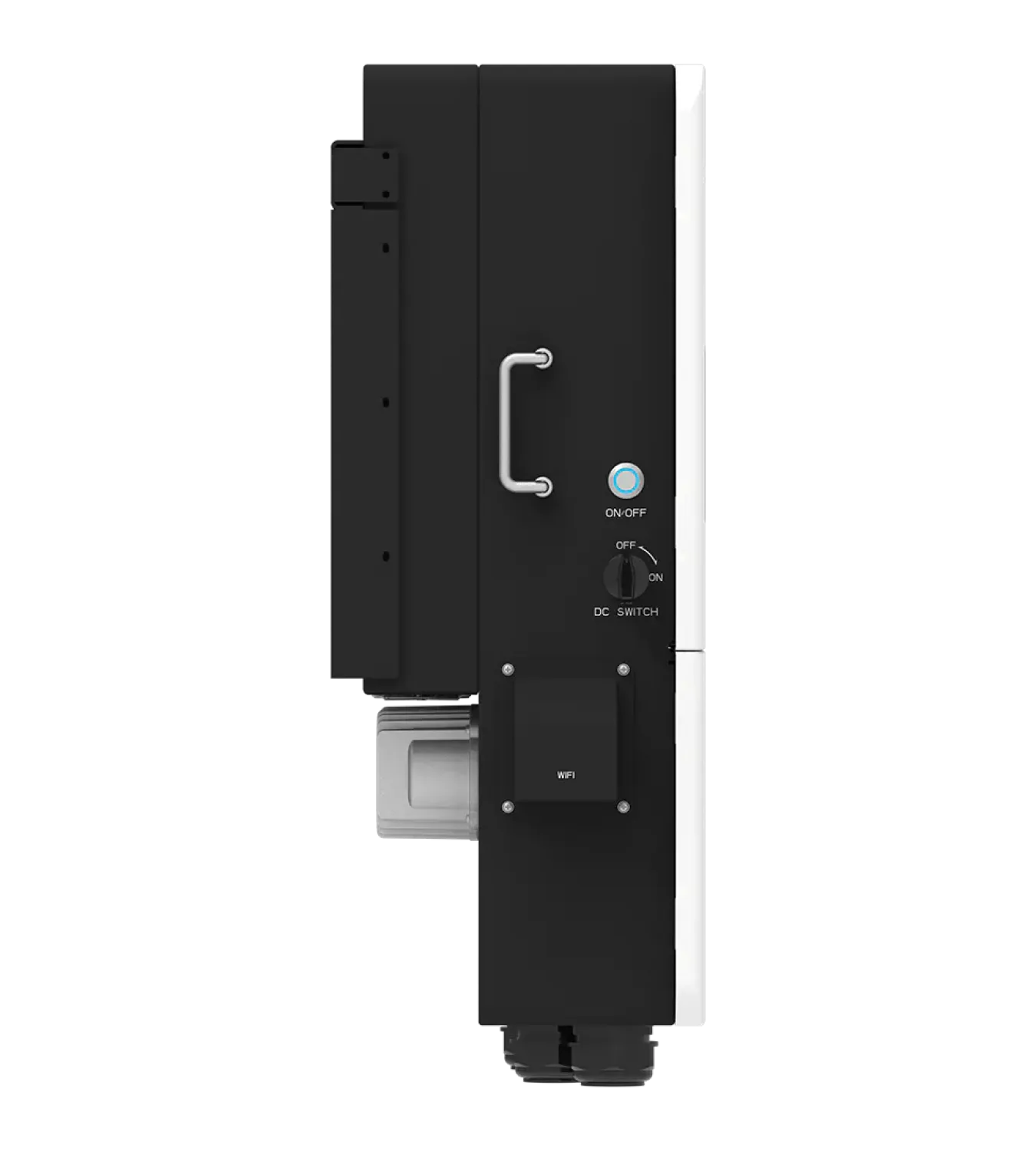

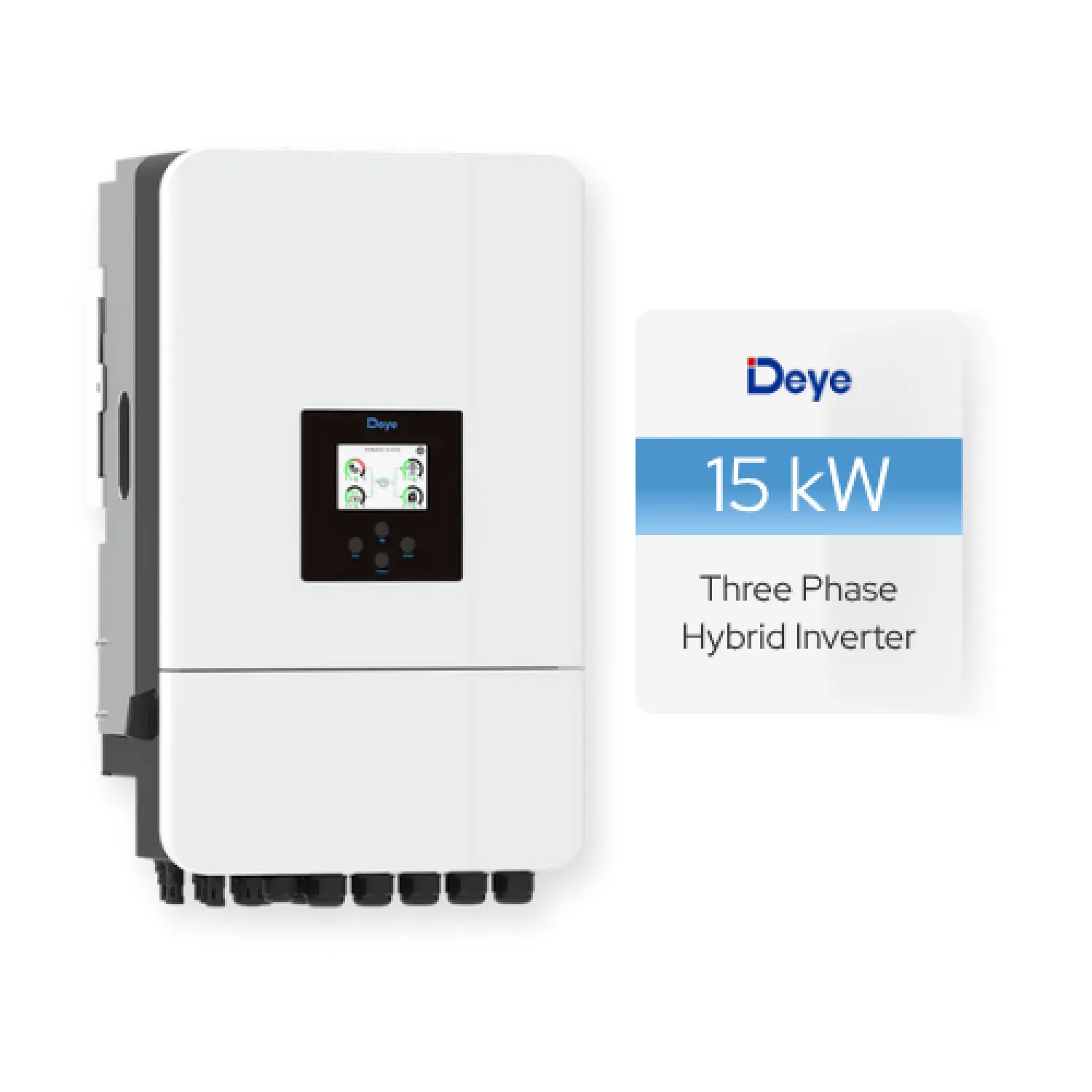

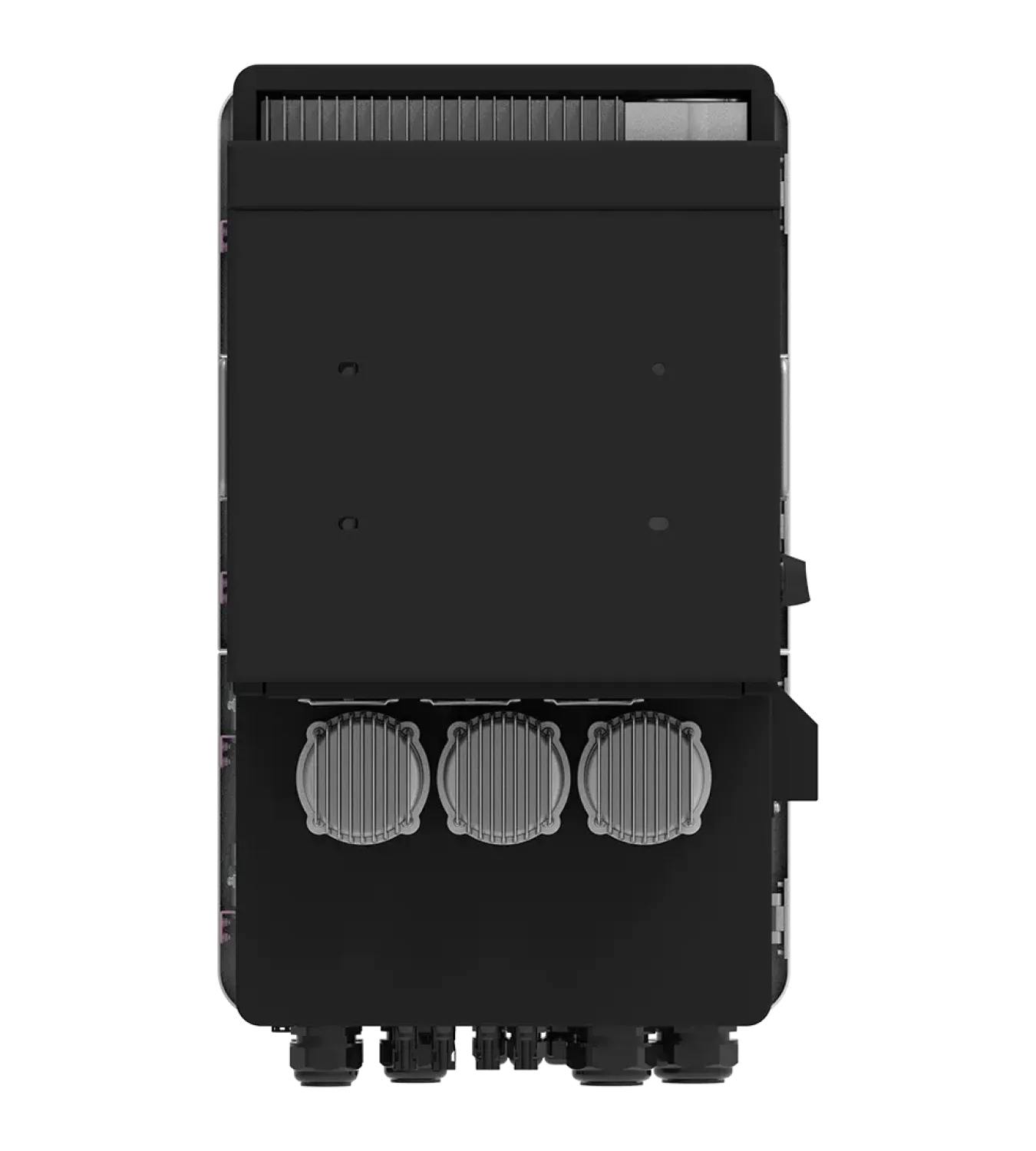

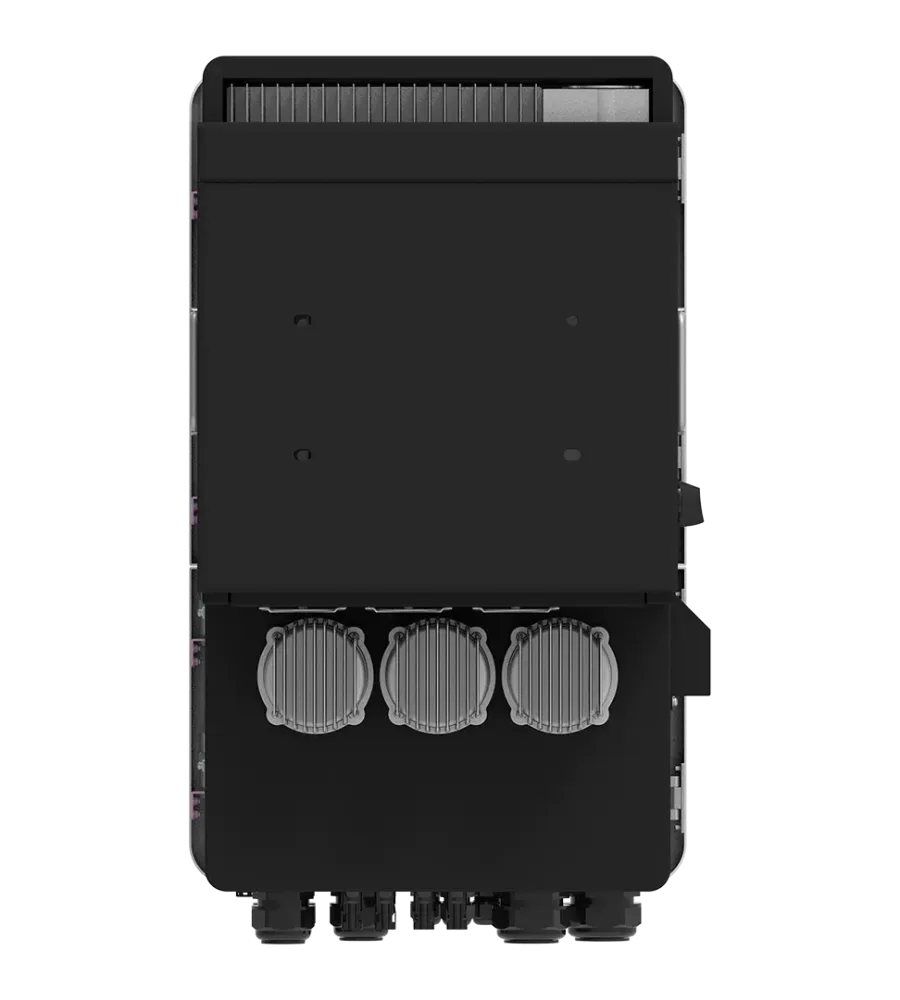

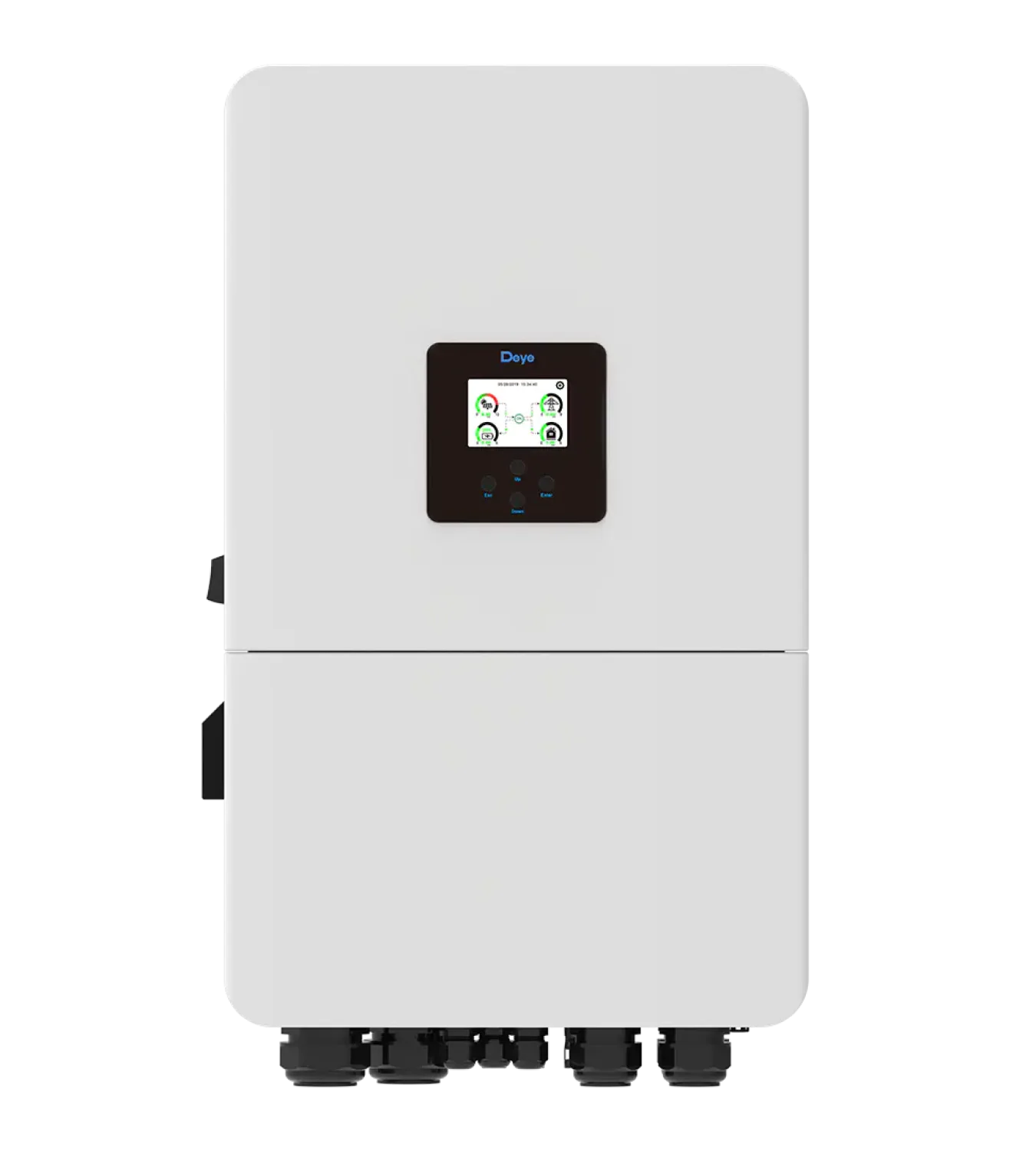

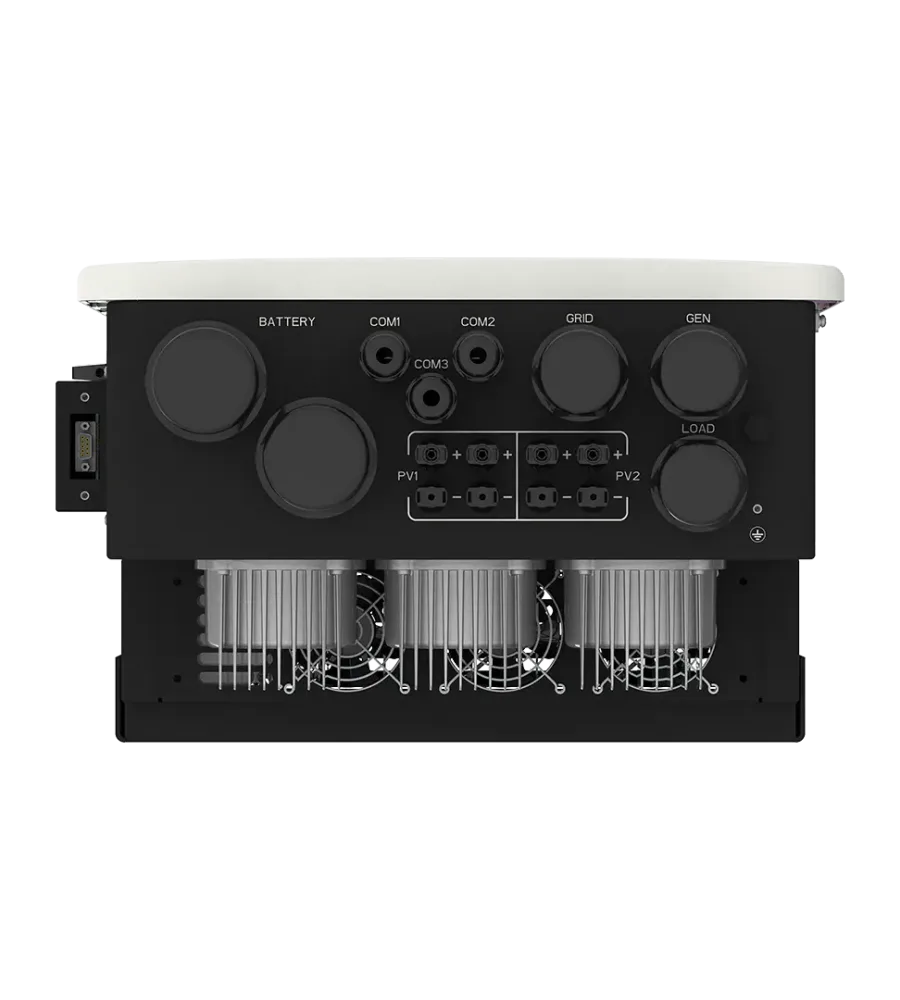

Deye Inverter Hybrid LV 15kW 2MPPT | SUN-15K-SG05LP3-EU-SM2
Product Code: DEYE-SUN-15K-SG05LP3-EU-SM2
€1,639.00
+ VAT based on country
The Deye SUN-15K-SG05LP3-EU-SM2 is a high-performance 15kW three-phase hybrid inverter designed to optimize solar energy management for residential and commercial systems. It features a robust transformer-isolated design for 48V low-voltage battery banks, supporting both lithium-ion and lead-acid chemistries.
Key Features
- Nominal AC output power of 15 kW for three-phase applications
- Maximum conversion efficiency up to 97.6% for efficient energy use
- Stable grid interaction with low total harmonic distortion (<3%)
- Three-phase output with support for unbalanced loads
- Wide voltage compatibility with European grid standards
- Dual MPPT trackers enabling independent optimization of two PV strings
- Wide MPPT voltage range of 160–650 V for flexible photovoltaic system design
- Maximum PV input voltage up to 800 V
- High PV input capacity supporting modern high-power solar modules
- MPPT tracking efficiency above 99% for improved energy yield
- Compatible with lithium-ion and lead-acid battery technologies
- 48 V low-voltage battery architecture with transformer isolation design
- Maximum charging and discharging current up to 280 A
- Intelligent battery management with automatic BMS communication
- Multiple programmable time periods for battery charging and discharging
- Supports AC coupling for retrofitting existing solar installations
- Parallel operation of up to 10 inverters for larger energy systems
- Ability to store energy from diesel generators
- 100% unbalanced output with up to 50% rated power per phase
- Supports both on-grid and off-grid system operation
- Integrated monitoring platform for real-time system performance tracking
- Optional remote monitoring via WiFi, GPRS, Bluetooth, LAN, or 4G modules
- Communication interfaces including RS485, RS232, and CAN
- Remote diagnostics, configuration, and firmware updates
- Advanced monitoring of solar production, battery status, and system performance
- DC reverse polarity protection
- AC output overcurrent and overvoltage protection
- AC output short circuit protection
- Residual current detection and insulation monitoring
- Anti-islanding protection for safe grid interaction
- Type II surge protection for both DC and AC circuits
- Optional arc fault circuit interrupter (AFCI) protection
- IP65-rated enclosure suitable for indoor and outdoor installation
- Intelligent air cooling system for efficient thermal management
- Operating temperature range from −40°C to +60°C
- Low operating noise level below 60 dB
- Robust design for long-term reliable operation in demanding environments
Technical Specifications
General
- Brand
- Deye
- Model
- Deye Inverter Hybrid LV 15kW 2MPPT | SUN-15K-SG05LP3-EU-SM2
- SKU
- DEYE-SUN-15K-SG05LP3-EU-SM2
- Power Output
- 15000 W
- Voltage
- 160V-650V
- Efficiency
- 97.6 %
- Dimensions
- 456 × 750 × 268.5 mm
- Weight
- 51.9 kg
- Warranty
- 120 months
Technical
- Battery Type
- Lead-acid / Lithium-ion
- Battery Voltage
- 48V (40-60V range)
- Max Charge Current
- 300A
- Max Discharge Current
- 300A
- Input Voltage
- 160V-800V
- Output Voltage
- 230V/400V (Three Phase)
- Frequency
- 50/60Hz
- MPPT Range
- 160V-650V
- Max PV Voltage
- 800V
- Max PV Current
- 36A + 36A
- Nominal Power
- 15000 W
- Peak Power
- 30000 W
- Transfer Time
- <10 ms
- THD
- < 3 %
- Power Factor
- 0.8 leading to 0.8 lagging
- Operating Temperature
- -40°C to 60°C
- Protection Rating
- IP65
- Cooling
- Intelligent Air Cooling
- Noise Level
- <60dB
- Certifications
- IEC 61727, IEC 62116, EN 50549-1, VDE-AR-N 4105, NRS 097-2-1
- Compatibility
- Compatible with Lead-acid and Lithium-ion batteries; 3-phase electrical systems
- Communication
- RS485, RS232, CAN
- Display
- LCD + LED Interface
- Monitoring
- Remote monitoring via Wi-Fi, GPRS, Bluetooth, 4G, or LAN; supports remote shutdown and firmware updates
- Parallel Capability
- Up to 10 units connected in parallel for on-grid and off-grid operation
- Grid Tie
- Yes, with anti-islanding
- Charging Modes
- Solar / Grid / Generator
- Installation Type
- Wall-mounted
- Mounting Options
- Wall bracket (included)
The Deye SUN-15K-SG05LP3-EU-SM2 is a high-performance three-phase hybrid solar inverter designed for residential and commercial photovoltaic energy storage systems. It integrates solar power generation, battery storage, and grid interaction into one intelligent unit, enabling efficient energy management, backup power capability, and optimized use of renewable energy.
With advanced hybrid inverter technology and dual MPPT trackers, this inverter maximizes solar energy production while providing flexible system configuration. It supports both lithium-ion and lead-acid batteries, allowing reliable energy storage and seamless integration with modern solar installations.
Core Electrical Characteristics
- Nominal AC output power of 15 kW for three-phase applications
- Maximum conversion efficiency up to 97.6% for efficient energy use
- Stable grid interaction with low total harmonic distortion (<3%)
- Three-phase output with support for unbalanced loads
- Wide voltage compatibility with European grid standards
PV Input and MPPT Performance
- Dual MPPT trackers enabling independent optimization of two PV strings
- Wide MPPT voltage range of 160–650 V for flexible photovoltaic system design
- Maximum PV input voltage up to 800 V
- High PV input capacity supporting modern high-power solar modules
- MPPT tracking efficiency above 99% for improved energy yield
Hybrid Energy Storage Capabilities
- Compatible with lithium-ion and lead-acid battery technologies
- 48 V low-voltage battery architecture with transformer isolation design
- Maximum charging and discharging current up to 280 A
- Intelligent battery management with automatic BMS communication
- Multiple programmable time periods for battery charging and discharging
Advanced System Integration
- Supports AC coupling for retrofitting existing solar installations
- Parallel operation of up to 10 inverters for larger energy systems
- Ability to store energy from diesel generators
- 100% unbalanced output with up to 50% rated power per phase
- Supports both on-grid and off-grid system operation
Monitoring, Communication, and Control
- Integrated monitoring platform for real-time system performance tracking
- Optional remote monitoring via WiFi, GPRS, Bluetooth, LAN, or 4G modules
- Communication interfaces including RS485, RS232, and CAN
- Remote diagnostics, configuration, and firmware updates
- Advanced monitoring of solar production, battery status, and system performance
Protection and Safety Features
- DC reverse polarity protection
- AC output overcurrent and overvoltage protection
- AC output short circuit protection
- Residual current detection and insulation monitoring
- Anti-islanding protection for safe grid interaction
- Type II surge protection for both DC and AC circuits
- Optional arc fault circuit interrupter (AFCI) protection
Durable Design and Reliability
- IP65-rated enclosure suitable for indoor and outdoor installation
- Intelligent air cooling system for efficient thermal management
- Operating temperature range from −40°C to +60°C
- Low operating noise level below 60 dB
- Robust design for long-term reliable operation in demanding environments
