Deye

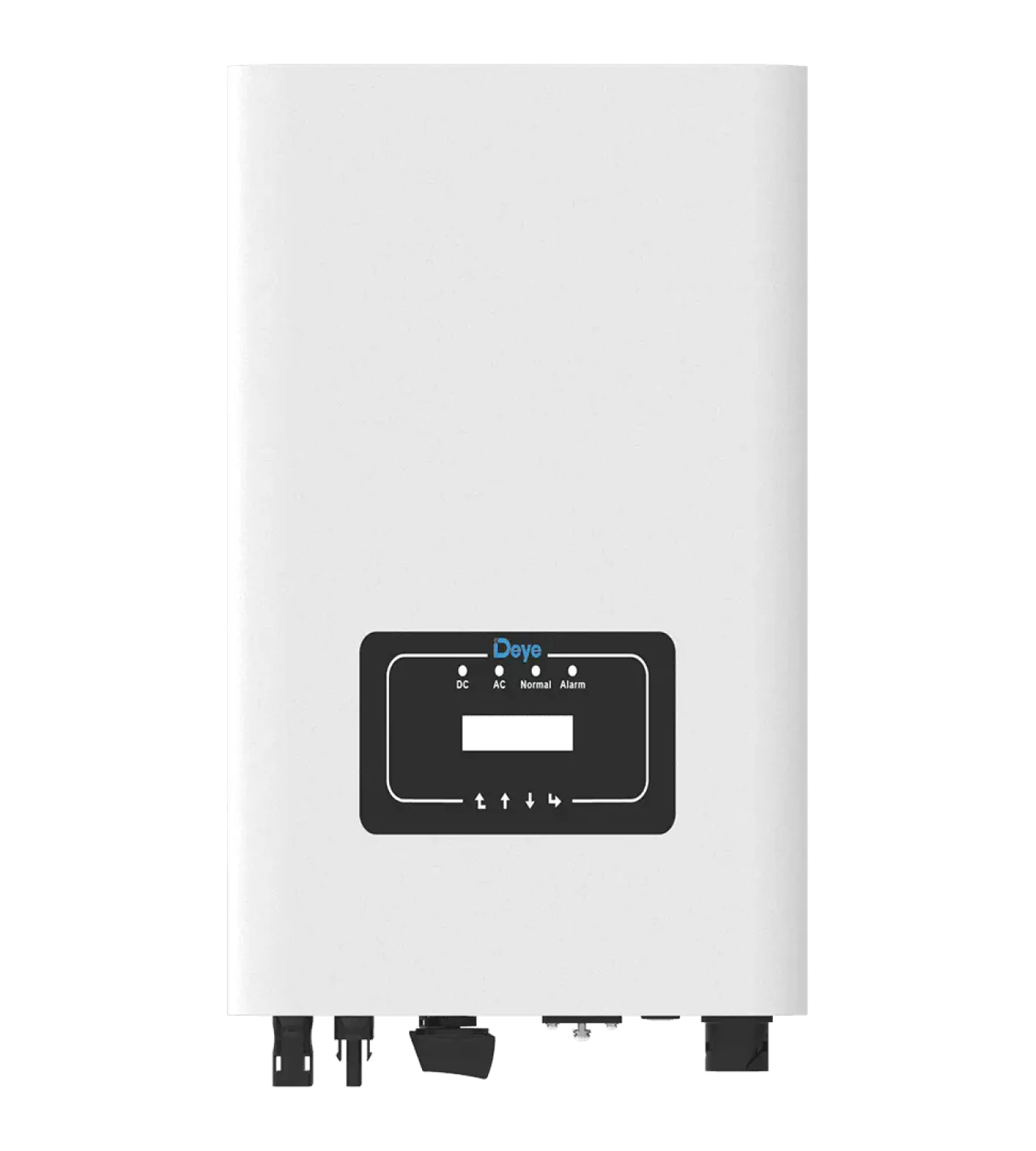

Deye Inverter On-Grid 10kW 2MPPT | SUN-10K-G06P3-EU-AM2-P1
Product Code: DEYE-SUN-10K-G06P3-EU-AM2-P1
€399.00
+ VAT based on country
High-efficiency 10kW three-phase on-grid solar inverter with 2 MPPT trackers, 1100V PV input and up to 98.3% efficiency. Designed for residential, commercial and distributed photovoltaic systems requiring reliable and efficient grid-connected operation.
Key Features
- Nominal AC output power of 10 kW for three-phase grid-connected systems
- Three-phase grid connection designed for stable and reliable power delivery
- Maximum conversion efficiency of up to 98.3% for high energy yield
- Low total harmonic distortion (THD) ensuring stable and compliant grid interaction
- Wide output voltage and frequency compatibility with European grid standards
- Dual MPPT trackers allowing independent optimization of two PV strings
- Wide MPPT voltage range enabling flexible photovoltaic system design
- Maximum PV input voltage up to 1100 V DC for long solar panel strings
- High PV input capability suitable for modern high-power solar modules
- Optimized MPPT tracking algorithms for improved performance under varying conditions
- Designed for grid-tied photovoltaic systems
- Stable power conversion for continuous solar energy export to the grid
- Support for export limitation and zero-export configurations where required
- Reliable synchronization with the utility grid for stable operation
- Suitable for residential, commercial, and distributed solar installations
- Integrated intelligent monitoring platform for real-time system performance tracking
- Optional remote monitoring via WiFi, LAN, GPRS, or 4G communication modules
- Communication interfaces supporting RS485 and RS232 protocols
- Remote access for system diagnostics, configuration, and maintenance
- Continuous monitoring of power production and inverter operating status
- Compact wall-mounted inverter design for efficient installation
- IP65-rated enclosure suitable for indoor and outdoor environments
- Lightweight construction allowing easy installation by professional installers
- Clear terminal layout for simplified DC and AC wiring
- Designed for professional solar EPC and installer workflows
- Integrated protections including over-voltage, over-current, and short-circuit protection
- Ground fault monitoring and anti-islanding protection for grid safety
- Surge protection on both DC and AC sides
- Certified according to international safety and grid standards
- Engineered for long-term reliability in demanding solar installations
- Residential rooftop solar PV systems
- Commercial and small industrial photovoltaic installations
- Self-consumption solar energy systems
- Distributed rooftop solar power plants
- Grid-connected photovoltaic energy systems
Technical Specifications
General
- Brand
- Deye
- Model
- Deye Inverter On-Grid 10kW 2MPPT | SUN-10K-G06P3-EU-AM2-P1
- SKU
- DEYE-SUN-10K-G06P3-EU-AM2-P1
- Power Output
- 10000 W
- Efficiency
- 98.3%
- Dimensions
- 283 × 463 × 178 mm
- Weight
- 11 kg
- Warranty
- 120 months
Technical
- Input Voltage
- 140–1100 V DC
- Output Voltage
- 220/380 V – 230/400 V AC (three-phase)
- Frequency
- 50/60 Hz
- MPPT Range
- 120–1000 V DC
- Max PV Power
- 15000 W
- Max PV Voltage
- 1100 V DC
- Max PV Current
- 20 A + 20 A
- Nominal Power
- 10000 W
- Peak Power
- 10500 W
- THD
- <3%
- Power Factor
- 0.8 leading – 0.8 lagging
- Operating Temperature
- -25°C to +60°C
- Protection Rating
- IP65
- Cooling
- Natural cooling / Intelligent air cooling
- Noise Level
- <45 dB
- Certifications
- IEC 61727, IEC 62116, EN 50549, VDE-AR-N 4105, IEC 62109
- Compatibility
- Grid-tied photovoltaic systems
- Communication
- RS485, RS232
- Display
- LCD display
- Monitoring
- WiFi / LAN / GPRS / 4G monitoring (optional)
- Grid Tie
- Yes, with anti-islanding protection
- Installation Type
- Wall-mounted
- Mounting Options
- Wall bracket included
The Deye SUN-10K-G06P3-EU-AM2-P1 is a high-performance three-phase on-grid solar inverter designed for residential, commercial, and small industrial photovoltaic systems. It converts DC power generated by solar panels into stable AC electricity for grid-connected installations, ensuring efficient energy production and reliable system operation.
With advanced MPPT technology, high DC input voltage capability, and excellent conversion efficiency, this inverter is optimized for modern high-power photovoltaic systems where efficiency, reliability, and long-term stability are essential.
Core Electrical Characteristics
- Nominal AC output power of 10 kW for three-phase grid-connected systems
- Three-phase grid connection designed for stable and reliable power delivery
- Maximum conversion efficiency of up to 98.3% for high energy yield
- Low total harmonic distortion (THD) ensuring stable and compliant grid interaction
- Wide output voltage and frequency compatibility with European grid standards
PV Input and MPPT Performance
- Dual MPPT trackers allowing independent optimization of two PV strings
- Wide MPPT voltage range enabling flexible photovoltaic system design
- Maximum PV input voltage up to 1100 V DC for long solar panel strings
- High PV input capability suitable for modern high-power solar modules
- Optimized MPPT tracking algorithms for improved performance under varying conditions
Grid Integration and System Operation
- Designed for grid-tied photovoltaic systems
- Stable power conversion for continuous solar energy export to the grid
- Support for export limitation and zero-export configurations where required
- Reliable synchronization with the utility grid for stable operation
- Suitable for residential, commercial, and distributed solar installations
Monitoring, Communication, and Control
- Integrated intelligent monitoring platform for real-time system performance tracking
- Optional remote monitoring via WiFi, LAN, GPRS, or 4G communication modules
- Communication interfaces supporting RS485 and RS232 protocols
- Remote access for system diagnostics, configuration, and maintenance
- Continuous monitoring of power production and inverter operating status
Mechanical Design and Installation
- Compact wall-mounted inverter design for efficient installation
- IP65-rated enclosure suitable for indoor and outdoor environments
- Lightweight construction allowing easy installation by professional installers
- Clear terminal layout for simplified DC and AC wiring
- Designed for professional solar EPC and installer workflows
Safety, Compliance, and Reliability
- Integrated protections including over-voltage, over-current, and short-circuit protection
- Ground fault monitoring and anti-islanding protection for grid safety
- Surge protection on both DC and AC sides
- Certified according to international safety and grid standards
- Engineered for long-term reliability in demanding solar installations
Typical Applications
- Residential rooftop solar PV systems
- Commercial and small industrial photovoltaic installations
- Self-consumption solar energy systems
- Distributed rooftop solar power plants
- Grid-connected photovoltaic energy systems
