FoxESS

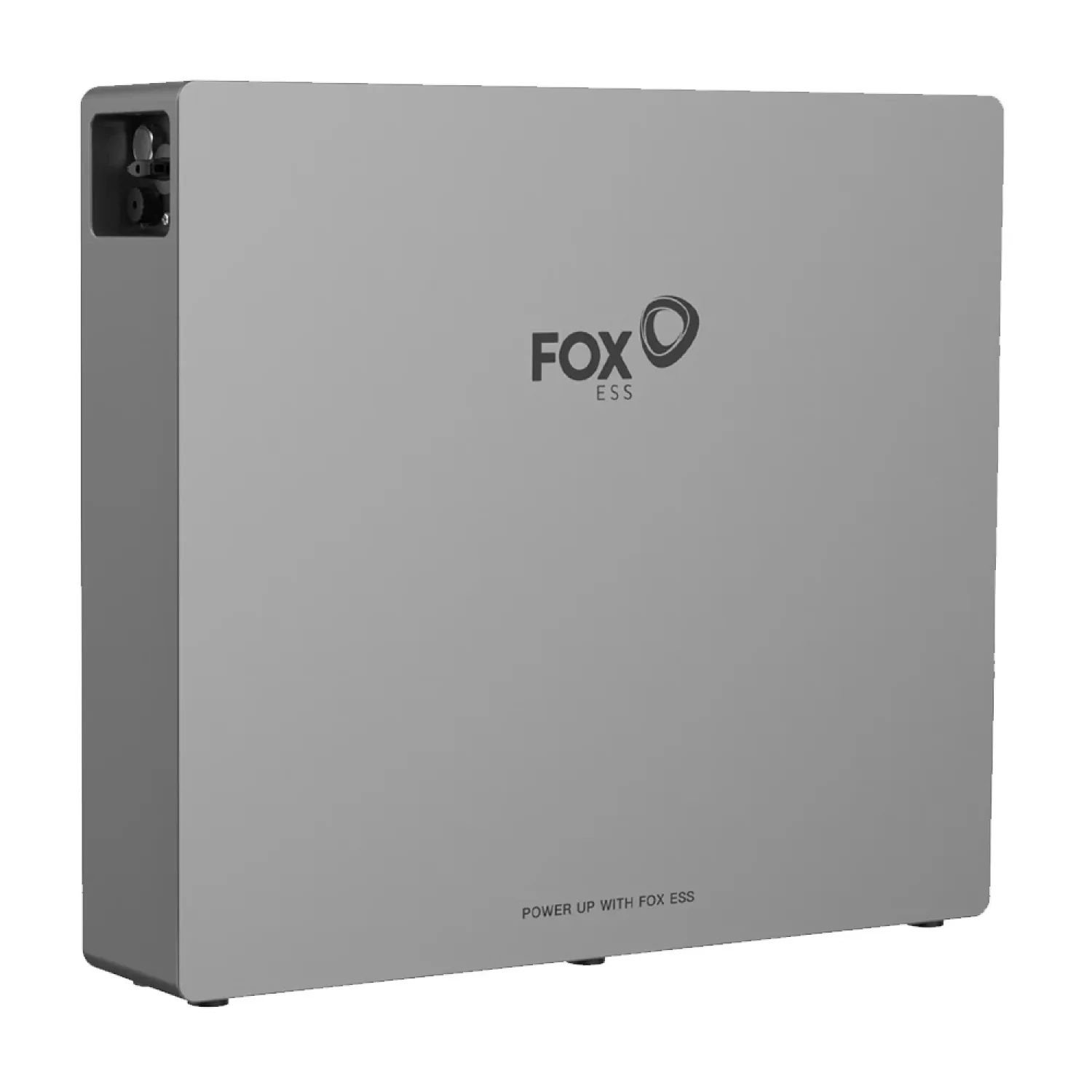

FoxESS - EP11 Energy Storage 10,36kWh with BMS
Product Code: FOXESS-EP11-10.36KWH-BMS-HV-BATTERY
€2,189.00
+ VAT based on country
The FoxESS EP11 is a 10.36 kWh high-voltage LiFePO₄ battery with integrated BMS, designed for scalable and efficient energy storage in photovoltaic systems.
Key Features
- High-voltage battery system
- Stable energy storage performance
- High efficiency operation
- Optimized charge and discharge control
- Designed for solar energy storage
- CAN communication interface
- Compatible with FoxESS hybrid inverters
- Seamless integration with PV systems
- Supports energy monitoring systems
- Smart system communication
- Integrated BMS for full system control
- High round-trip efficiency
- Long cycle life performance
- Supports system scalability
- Reliable performance in daily operation
- Wall-mounted or floor-standing installation
- Compact and space-saving design
- Easy and fast installation
- Modular expandable system
- Suitable for indoor and outdoor use
- LiFePO₄ battery chemistry for safety
- Integrated protection systems
- Thermal and electrical protection
- Certified for energy storage use
- Reliable long-term operation
- Residential energy storage systems
- Commercial photovoltaic installations
- Solar self-consumption systems
- Backup energy solutions
- Smart energy management
Technical Specifications
General
- Brand
- FoxESS
- Model
- FoxESS - EP11 Energy Storage 10,36kWh with BMS
- SKU
- FOXESS-EP11-10.36KWH-BMS-HV-BATTERY
- Capacity
- 10.36 kWh
- Voltage
- 348–438 V
- Efficiency
- ≥95%
- Dimensions
- 710 × 625 × 147 mm
- Weight
- 99 kg
- Warranty
- 120 months
Technical
- Battery Type
- Lithium Iron Phosphate (LFP)
- Battery Voltage
- 384 V
- Max Charge Current
- 27 A
- Max Discharge Current
- 27 A
- Cycle Life
- ≥4000 cycles
- Operating Temperature
- Charge 0°C to +55°C / Discharge -10°C to +55°C
- Protection Rating
- IP65
- Cooling
- Natural convection
- Certifications
- IEC62619, UN38.3
- Compatibility
- FoxESS H1, KH, H3, H3-Pro inverters
- Communication
- CAN
- Display
- LED indicators
- Monitoring
- Via inverter system
- Parallel Capability
- Up to 4 units
- Charging Modes
- Solar, Grid (via inverter)
- Installation Type
- Wall-mounted / Floor-standing
- Mounting Options
- Wall or floor installation
The FoxESS EP11 Energy Storage system is a high-performance battery solution designed for modern photovoltaic systems, offering reliable energy storage and improved energy independence. It allows users to store excess solar energy and use it when needed, helping optimize self-consumption and reduce grid reliance.
Built with advanced lithium iron phosphate (LiFePO₄) technology, the battery ensures high safety, long lifespan, and stable operation. The integrated battery management system (BMS) provides intelligent control, protection, and efficient charge and discharge management.
The system is designed with flexibility in mind, supporting modular expansion to meet growing energy demands. This makes it suitable for both residential and commercial applications where scalability is important.
Its compact design and versatile mounting options enable easy installation, while the robust construction and IP65 protection ensure reliable performance in both indoor and outdoor environments.
Core Electrical Characteristics
- High-voltage battery system
- Stable energy storage performance
- High efficiency operation
- Optimized charge and discharge control
- Designed for solar energy storage
Connectivity and Integration
- CAN communication interface
- Compatible with FoxESS hybrid inverters
- Seamless integration with PV systems
- Supports energy monitoring systems
- Smart system communication
System Performance and Control
- Integrated BMS for full system control
- High round-trip efficiency
- Long cycle life performance
- Supports system scalability
- Reliable performance in daily operation
Design and Installation
- Wall-mounted or floor-standing installation
- Compact and space-saving design
- Easy and fast installation
- Modular expandable system
- Suitable for indoor and outdoor use
Safety and Compliance
- LiFePO₄ battery chemistry for safety
- Integrated protection systems
- Thermal and electrical protection
- Certified for energy storage use
- Reliable long-term operation
Typical Applications
- Residential energy storage systems
- Commercial photovoltaic installations
- Solar self-consumption systems
- Backup energy solutions
- Smart energy management
