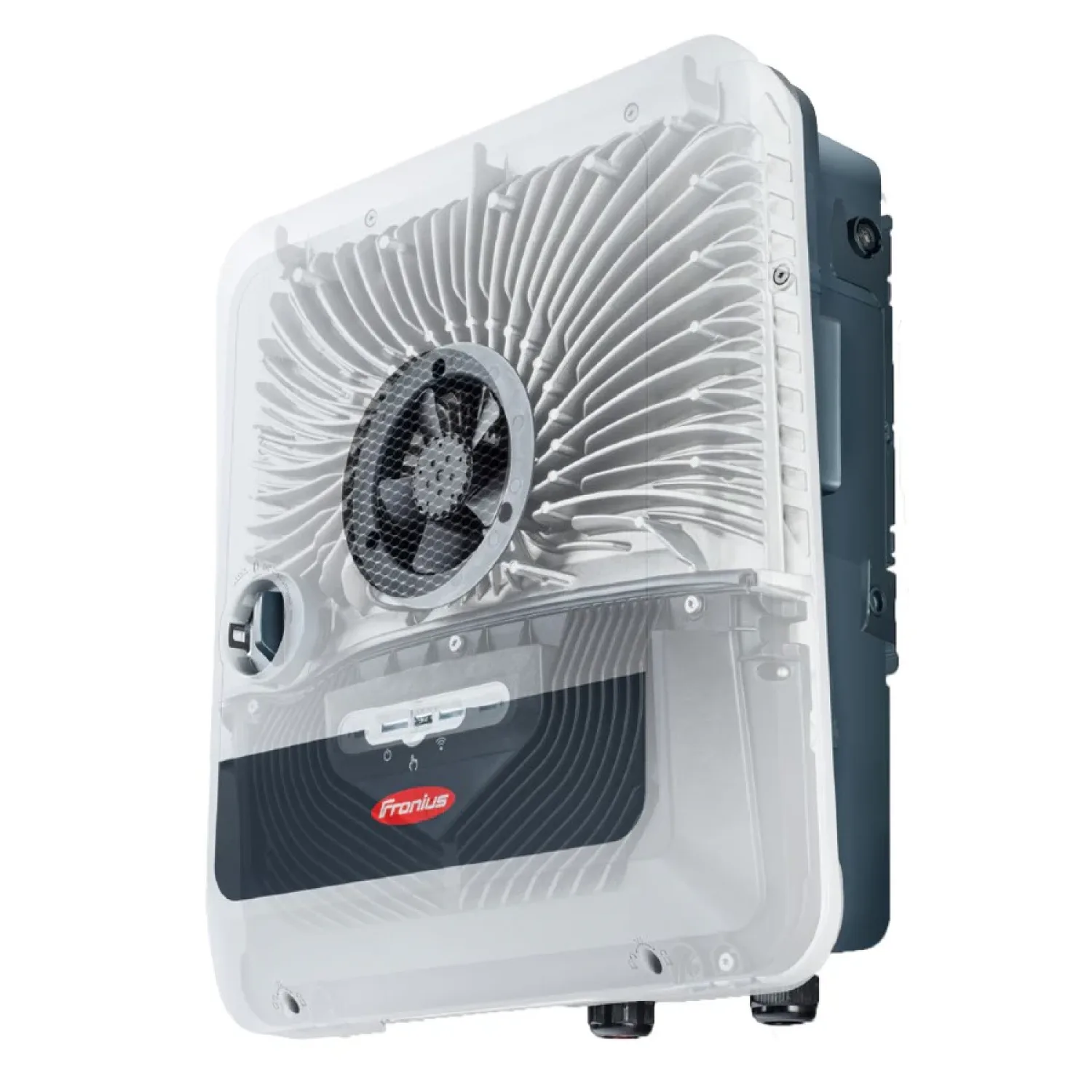

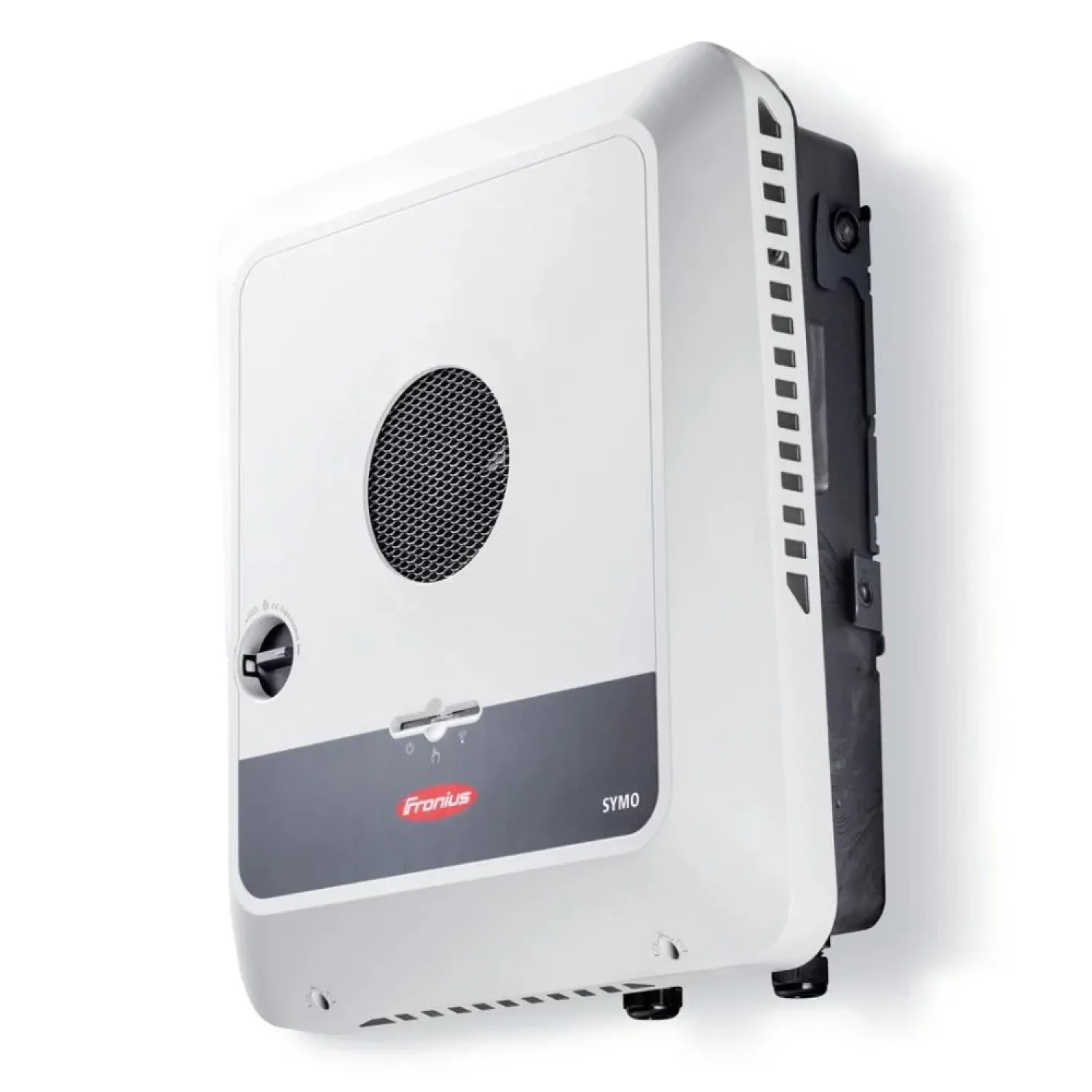

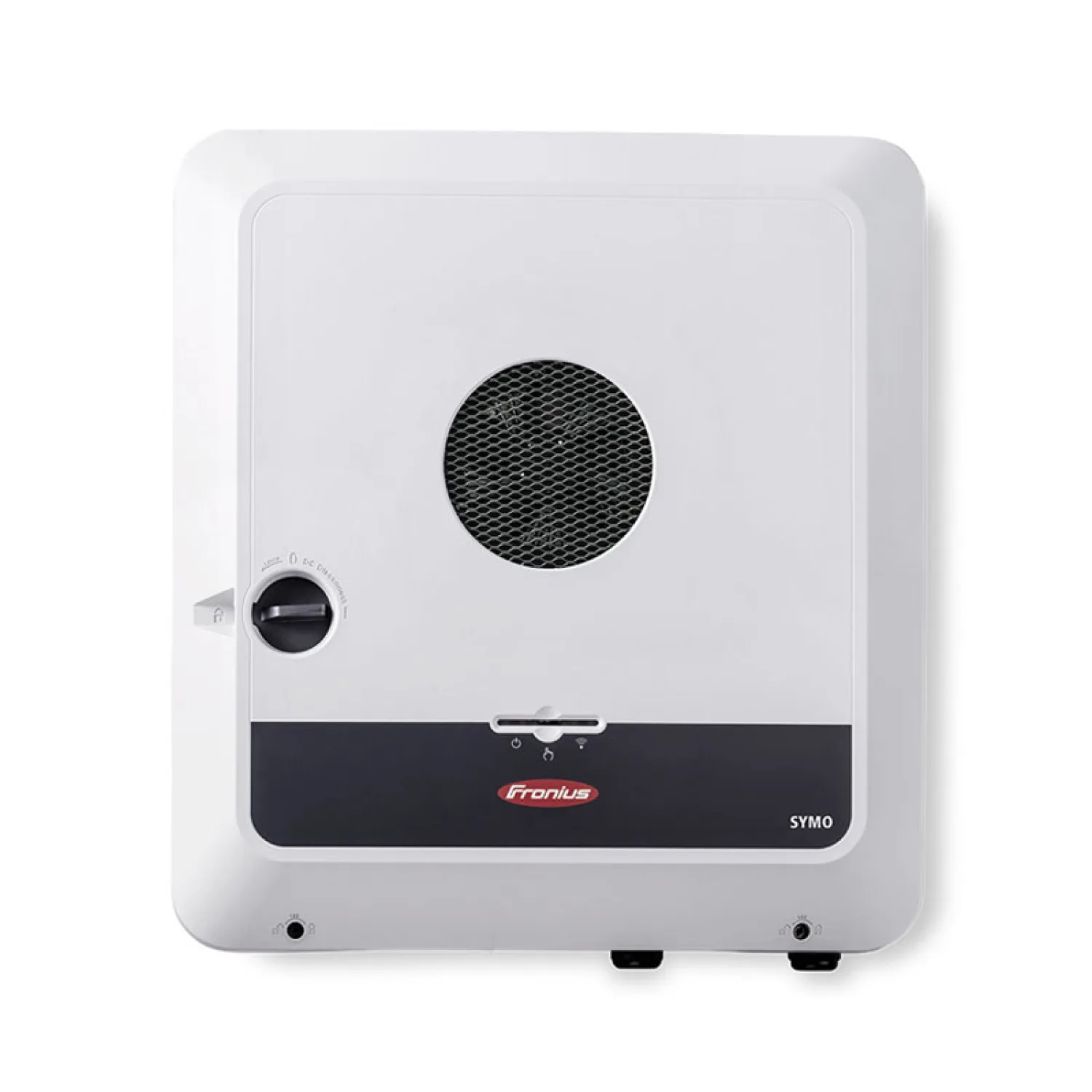

Fronius Symo GEN24 4.0 Plus / Hybrid Inverter
Product Code: FRONIUS-SYMO-GEN24-4.0-PLUS
In stock
Technical Specifications
The Fronius Symo GEN24 4.0 Plus Inverter is a versatile three-phase hybrid inverter designed for residential photovoltaic systems. It combines efficient energy conversion with advanced energy management and battery compatibility, providing a flexible solution for solar energy generation and storage.
With Multi Flow Technology, the inverter enables simultaneous energy flows between photovoltaic modules, battery storage, and household loads. This allows optimized self-consumption and efficient system operation. Equipped with two MPPT trackers and a wide DC input voltage range, it ensures stable performance and high energy yield even under varying conditions.
The integrated communication package includes Wi-Fi and Ethernet connectivity, enabling real-time monitoring via Fronius Solar.web and seamless integration with smart energy systems. Open interfaces such as Modbus and Solar API allow easy connection with third-party components and energy management solutions.
A key feature of the GEN24 Plus series is its backup power functionality. The PV Point provides basic backup power directly from solar panels, while advanced backup solutions are available when combined with battery systems. This ensures high reliability and energy independence.
Core Electrical Characteristics
- AC nominal output of 4000 W
- Three-phase grid connection
- Two MPPT trackers
- Wide DC input voltage range (80–1000 V)
- Maximum efficiency up to 98.2%
Connectivity and Integration
- Built-in Wi-Fi and Ethernet
- Integrated data logging and web server
- Modbus TCP/RTU and Solar API support
- Compatible with BYD Battery-Box Premium systems
- Remote monitoring via Fronius Solar.web
System Performance and Control
- Multi Flow Technology
- Dynamic Peak Manager
- Real-time energy management
- Battery-ready hybrid functionality
- Backup power support (PV Point)
Design and Installation
- Compact wall-mounted design
- Indoor and outdoor installation (IP66)
- Easy installation with SnapINverter concept
- Service-friendly construction
Safety and Compliance
- Protection Class I
- Overvoltage category II/III
- Integrated protection features
- Compliant with IEC, VDE, and CE standards
- Reliable long-term operation
Typical Applications
- Residential solar systems
- Hybrid PV systems with battery storage
- Smart home energy systems
- Backup power solutions
- Self-consumption optimization
Power & Energy
- Power Output
- 4000W
- Nominal Power
- 4000W
- Peak Power
- 4000W
- Efficiency
- 98.2%
- Power Factor
- 0.7–1
- THD
- <3.5%
- Transfer Time
- <90 s
Battery
- Battery Type
- LiFePO4 (BYD Battery-Box Premium HVS/HVM)
- Battery Voltage
- 160–531 V DC
- Max Charge Current
- 12.5A
- Max Discharge Current
- 12.5A
- Charging Modes
- Solar, Grid
Solar
- Input Voltage
- 80–1000 V DC
- Output Voltage
- 3~ 400 V / 230 V AC
- Voltage
- 610 V DC
- Frequency
- 50/60 Hz
- MPPT Range
- 80–800 V DC
- Max PV Power
- 6000W
- Max PV Voltage
- 1000 V DC
- Max PV Current
- 12.5A / 12.5A
- Grid Tie
- Yes, with anti-islanding
Physical
- Dimensions
- 474 × 530 × 165 mm
- Weight
- 19.0 kg
- Installation Type
- Wall-mounted
- Mounting Options
- Wall bracket
Environmental
- Operating Temperature
- -25°C to +60°C
- Protection Rating
- IP66
- Cooling
- Regulated air cooling
- Noise Level
- <36 dB
Features & Compatibility
- Warranty
- 60 months
- Certifications
- IEC, VDE, CE
- Compatibility
- BYD Battery-Box Premium HVS/HVM, smart energy systems
- Communication
- WiFi, Ethernet, RS485, Modbus TCP/RTU, Solar API
- Monitoring
- Fronius Solar.web
