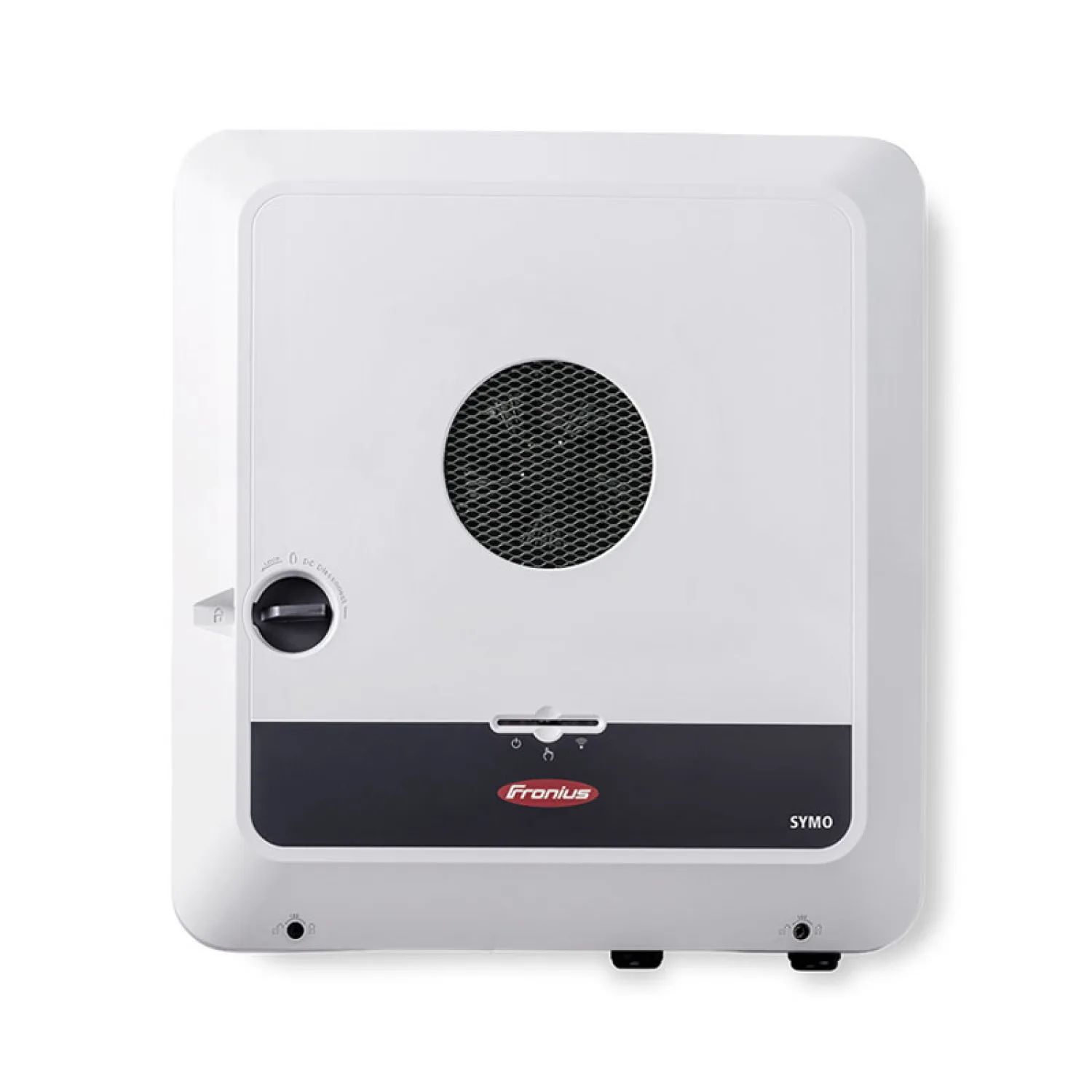

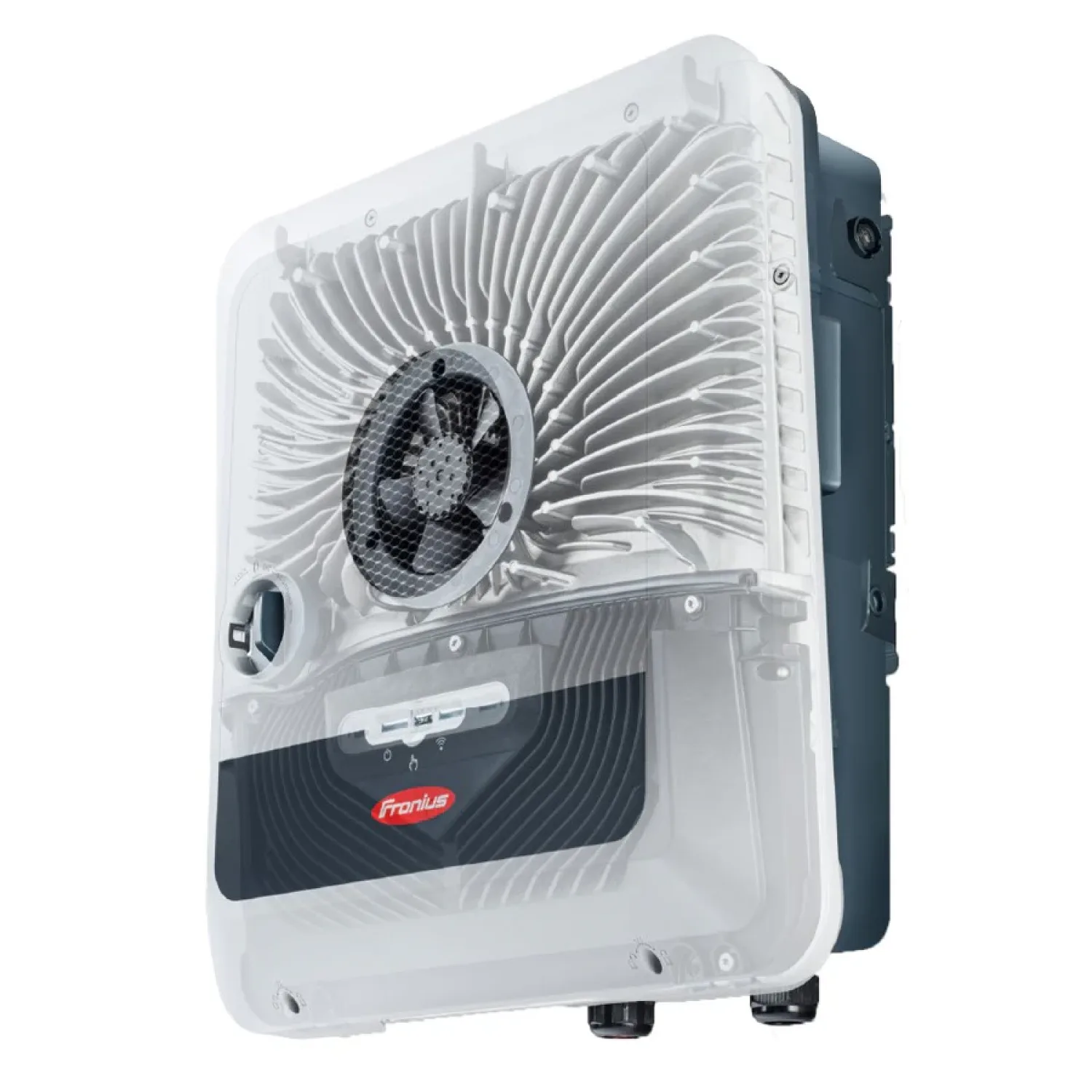

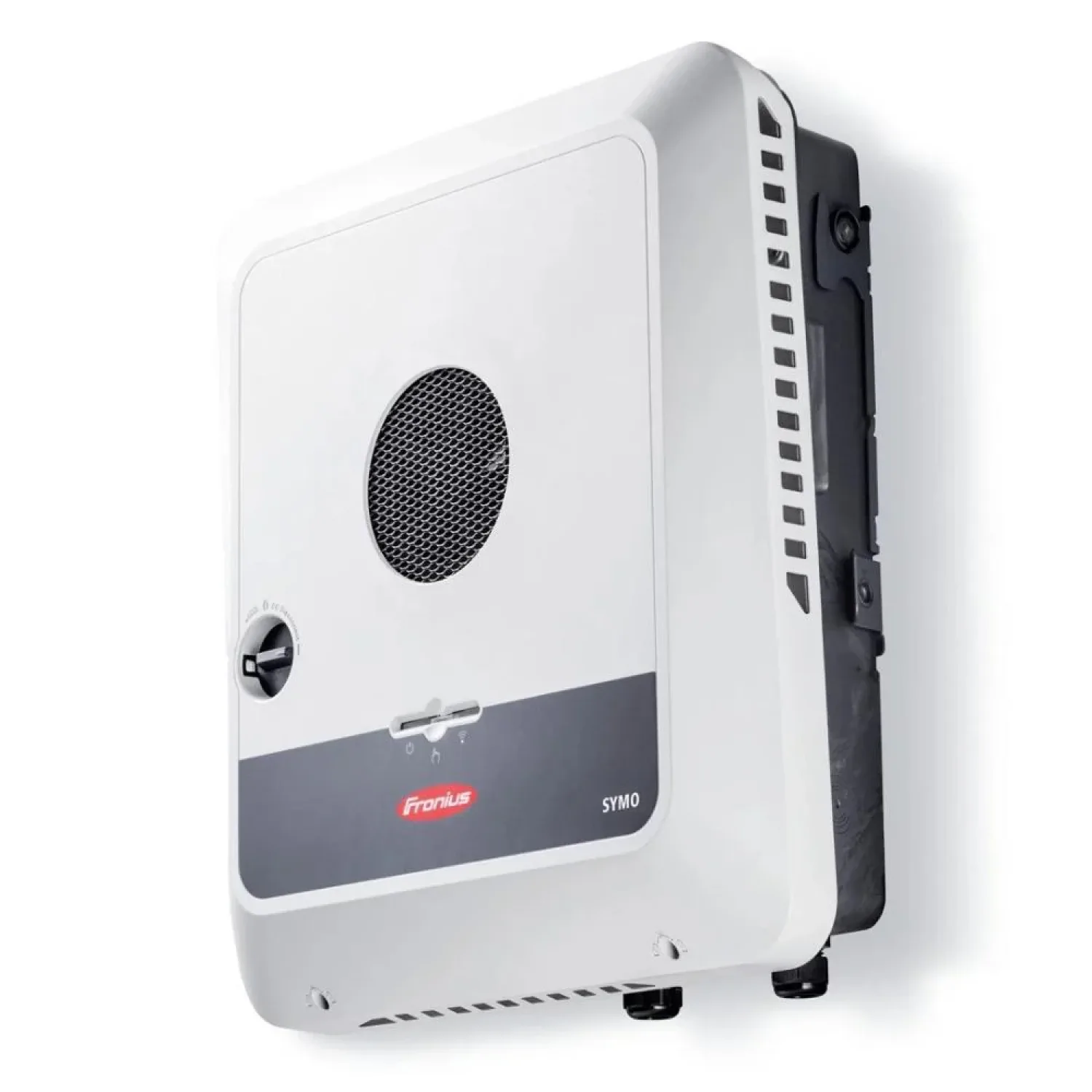

Fronius Symo GEN24 5.0 Plus / Hybrid Inverter
Product Code: FRONIUS-SYMO-GEN24-5.0-PLUS
In stock
Technical Specifications
The Fronius Symo GEN24 5.0 Plus Inverter is a high-performance three-phase hybrid inverter designed for residential photovoltaic systems. It combines efficient solar energy conversion with advanced energy management and battery compatibility, offering a flexible and future-ready energy solution.
With Multi Flow Technology, the inverter enables simultaneous energy flows between photovoltaic modules, battery storage, and household loads. This ensures maximum self-consumption and optimized system performance. Equipped with two MPPT trackers and a wide DC input voltage range, it delivers stable operation and high energy yield even under varying installation conditions.
The integrated communication package includes Wi-Fi and Ethernet connectivity, enabling real-time monitoring via Fronius Solar.web. It supports Modbus and Solar API protocols, allowing seamless integration with third-party energy systems and smart home solutions.
The inverter features backup power functionality through PV Point, providing basic energy supply during grid outages. This ensures improved energy independence and reliable system operation for residential users.
Core Electrical Characteristics
- AC nominal output of 5000 W
- Three-phase grid connection
- Two MPPT trackers
- Wide DC input voltage range (80–1000 V)
- Maximum efficiency up to 98.2%
Connectivity and Integration
- Built-in Wi-Fi and Ethernet
- Integrated data logging and web server
- Modbus TCP/RTU and Solar API support
- Compatible with BYD Battery-Box Premium systems
- Remote monitoring via Fronius Solar.web
System Performance and Control
- Multi Flow Technology
- Dynamic Peak Manager
- Real-time energy management
- Battery-ready hybrid functionality
- Backup power support (PV Point)
Design and Installation
- Compact wall-mounted design
- Indoor and outdoor installation (IP66)
- Easy installation and servicing
- Durable construction
Safety and Compliance
- Protection Class I
- Overvoltage category II/III
- Integrated protection features
- Compliant with IEC, VDE, and CE standards
- Reliable long-term operation
Typical Applications
- Residential solar systems
- Hybrid PV systems with battery storage
- Smart home energy systems
- Backup power solutions
- Self-consumption optimization
Power & Energy
- Power Output
- 5000W
- Nominal Power
- 5000W
- Peak Power
- 5000W
- Efficiency
- 98.2%
- Power Factor
- 0.7–1
- THD
- <3.5%
- Transfer Time
- <90 s
Battery
- Battery Type
- LiFePO4 (BYD Battery-Box Premium HVS/HVM)
- Battery Voltage
- 160–531 V DC
- Max Charge Current
- 12.5A
- Max Discharge Current
- 12.5A
- Charging Modes
- Solar, Grid
Solar
- Input Voltage
- 80–1000 V DC
- Output Voltage
- 3~ 400 V / 230 V AC
- Voltage
- 610 V DC
- Frequency
- 50/60 Hz
- MPPT Range
- 80–800 V DC
- Max PV Power
- 7500W
- Max PV Voltage
- 1000 V DC
- Max PV Current
- 12.5A / 12.5A
- Grid Tie
- Yes, with anti-islanding
Physical
- Dimensions
- 474 × 530 × 165 mm
- Weight
- 15.6 kg
- Installation Type
- Wall-mounted
- Mounting Options
- Wall bracket
Environmental
- Operating Temperature
- -25°C to +60°C
- Protection Rating
- IP66
- Cooling
- Regulated air cooling
- Noise Level
- <36 dB
Features & Compatibility
- Warranty
- 60 months
- Certifications
- IEC, VDE, CE
- Compatibility
- BYD Battery-Box Premium HVS/HVM, smart energy systems
- Communication
- WiFi, Ethernet, RS485, Modbus TCP/RTU, Solar API
- Monitoring
- Fronius Solar.web
