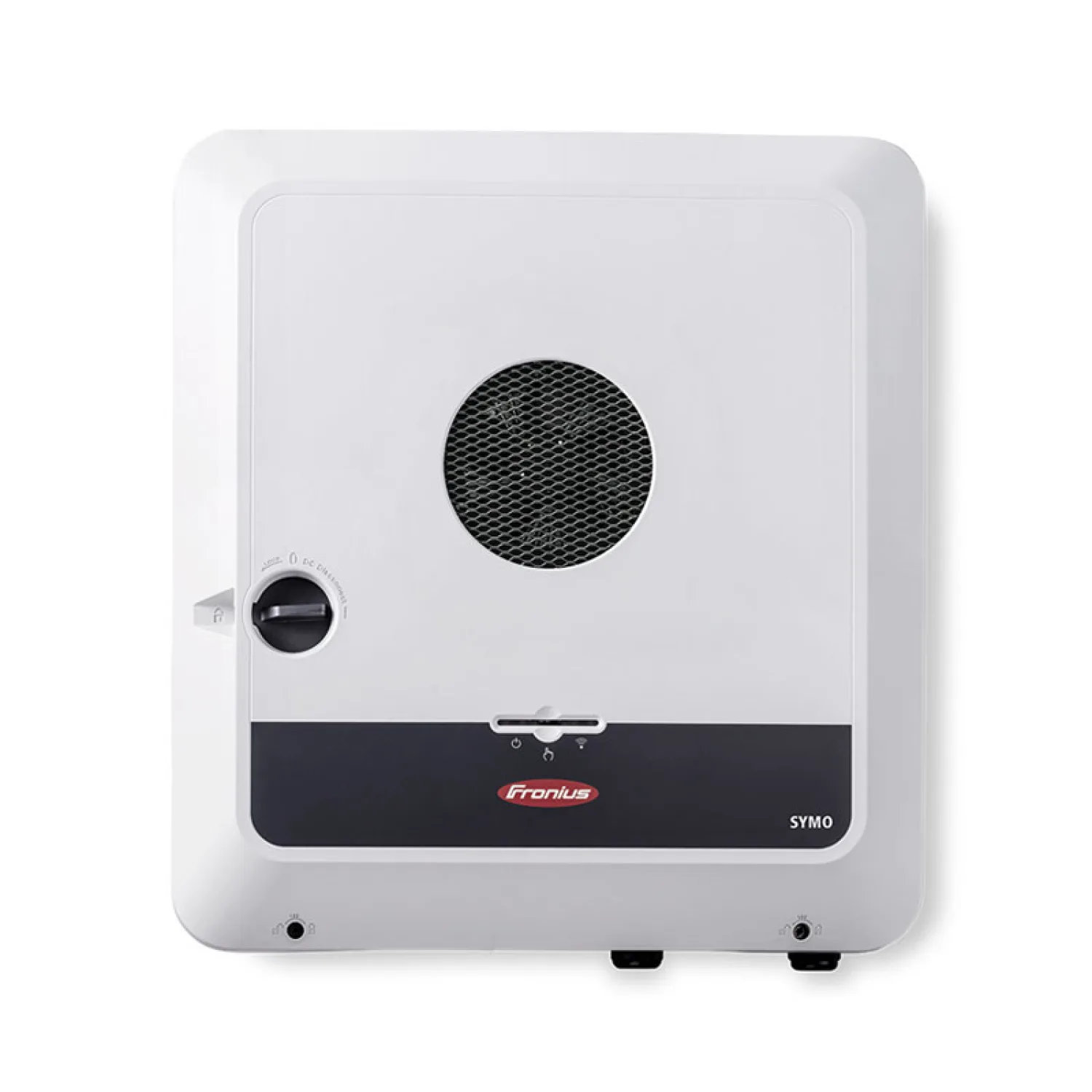

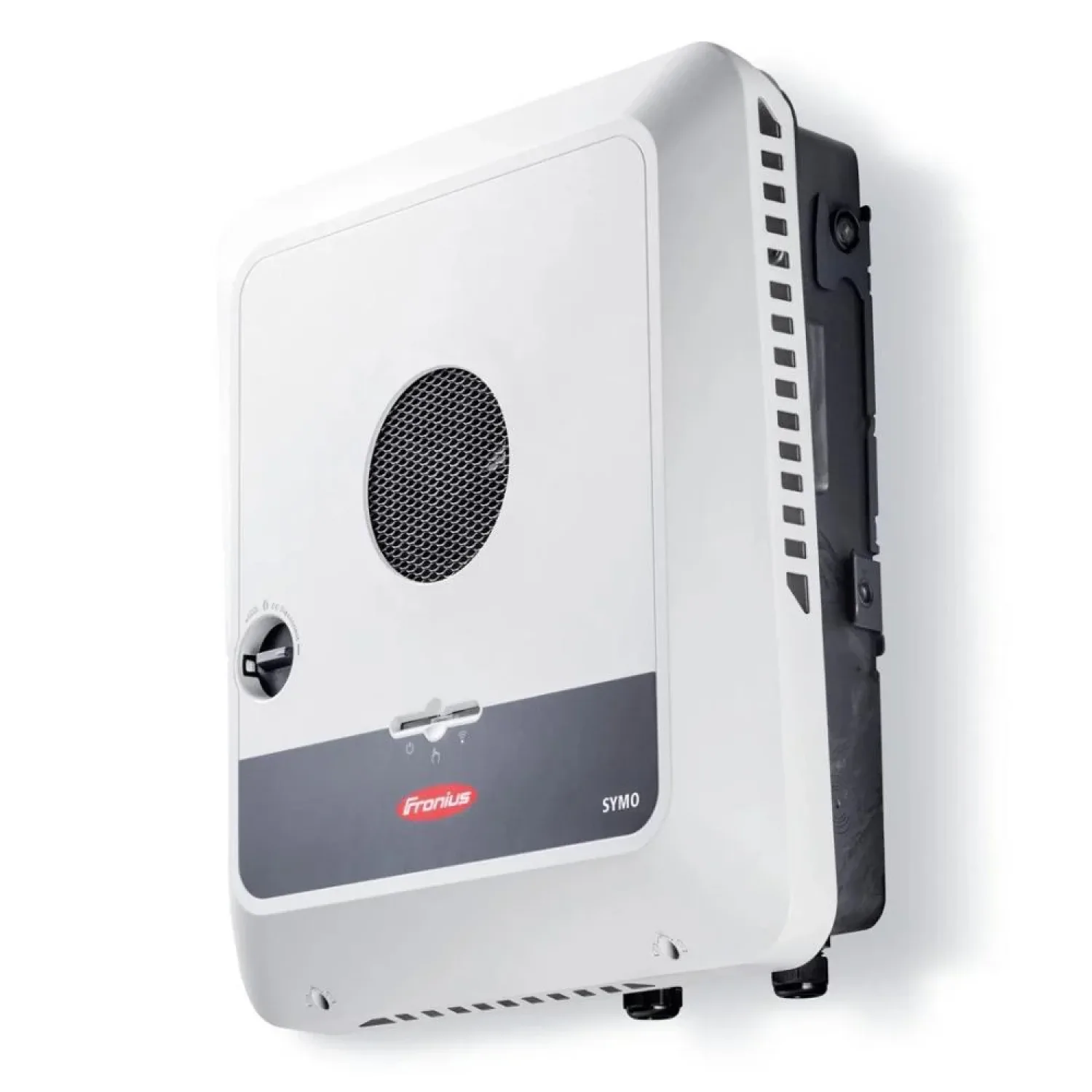

Fronius Symo GEN24 10.0 Plus / Hybrid Inverter
Product Code: FRONIUS-SYMO-GEN24-10-PLUS
In stock
Technical Specifications
The Fronius Symo GEN24 10.0 Plus Inverter is a high-performance three-phase hybrid inverter designed for advanced residential photovoltaic systems. It combines powerful energy conversion with intelligent energy management and battery integration, providing a complete and flexible solar solution for modern homes.
With Multi Flow Technology, the inverter enables simultaneous energy flows between photovoltaic modules, battery storage, and household loads. This ensures optimal energy usage, maximizes self-consumption, and increases overall system efficiency. Equipped with two MPPT trackers and a wide DC input voltage range, it delivers high energy yield even in complex installations.
The integrated communication system includes Wi-Fi and Ethernet connectivity, allowing real-time monitoring via Fronius Solar.web and seamless integration with smart home and energy systems. Support for Modbus and Solar API enables advanced control and compatibility with third-party solutions.
A key advantage of the GEN24 Plus series is its flexible backup power functionality. The PV Point provides basic backup power, while the full backup option allows complete household power supply during grid outages when combined with additional components. This ensures maximum energy independence and reliability.
Core Electrical Characteristics
- AC nominal output of 10000 W
- Three-phase grid connection
- Two MPPT trackers
- Wide DC input voltage range (80–1000 V)
- Maximum efficiency up to 98.2%
Connectivity and Integration
- Built-in Wi-Fi and Ethernet
- Integrated data logging and web server
- Modbus TCP/RTU and Solar API support
- Compatible with BYD Battery-Box Premium systems
- Remote monitoring via Fronius Solar.web
System Performance and Control
- Multi Flow Technology
- Dynamic Peak Manager
- Real-time energy management
- Battery-ready hybrid functionality
- Backup power support (PV Point and Full Backup)
Design and Installation
- Compact wall-mounted design
- Indoor and outdoor installation (IP66)
- Easy installation and maintenance
- Durable and robust construction
Safety and Compliance
- Protection Class I
- Overvoltage category II/III
- Integrated protection features
- Compliant with IEC, VDE, and CE standards
- Reliable long-term operation
Typical Applications
- Residential solar systems
- Hybrid PV systems with battery storage
- Smart home energy systems
- Backup power applications
- Self-consumption optimization
Power & Energy
- Power Output
- 10,000 W
- Nominal Power
- 10,000 W
- Peak Power
- 10,000 W
- Efficiency
- 98.2 %
- Power Factor
- 0.7 – 1.0
- THD
- < 3 %
- Transfer Time
- ~10 ms
- Phase Type
- three-phase
- Inverter Type
- hybrid
- Power
- 10
Battery
- Battery Type
- Lithium-ion (LiFePO₄ compatible)
- Battery Voltage
- 160–700 V DC
- Max Charge Current
- 22 A
- Max Discharge Current
- 22 A
- Charging Modes
- Solar, Grid (AC-coupled)
Solar
- Input Voltage
- 80–1000 V DC
- Output Voltage
- 380 / 400 V AC (3-phase)
- Voltage
- 610 V DC
- Frequency
- 50 / 60 Hz
- MPPT Range
- 80–800 V DC
- Max PV Power
- 15,000 Wp
- Max PV Voltage
- 1,000 V DC
- Max PV Current
- 25 A
- Grid Tie
- Yes, with anti-islanding
- MPPT Count
- 2
Physical
- Dimensions
- 529 × 595 × 180 mm
- Weight
- 23.4 kg
- Installation Type
- Wall-mounted
- Mounting Options
- Wall mounting bracket included
Environmental
- Operating Temperature
- –25 °C to +60 °C
- Protection Rating
- IP66

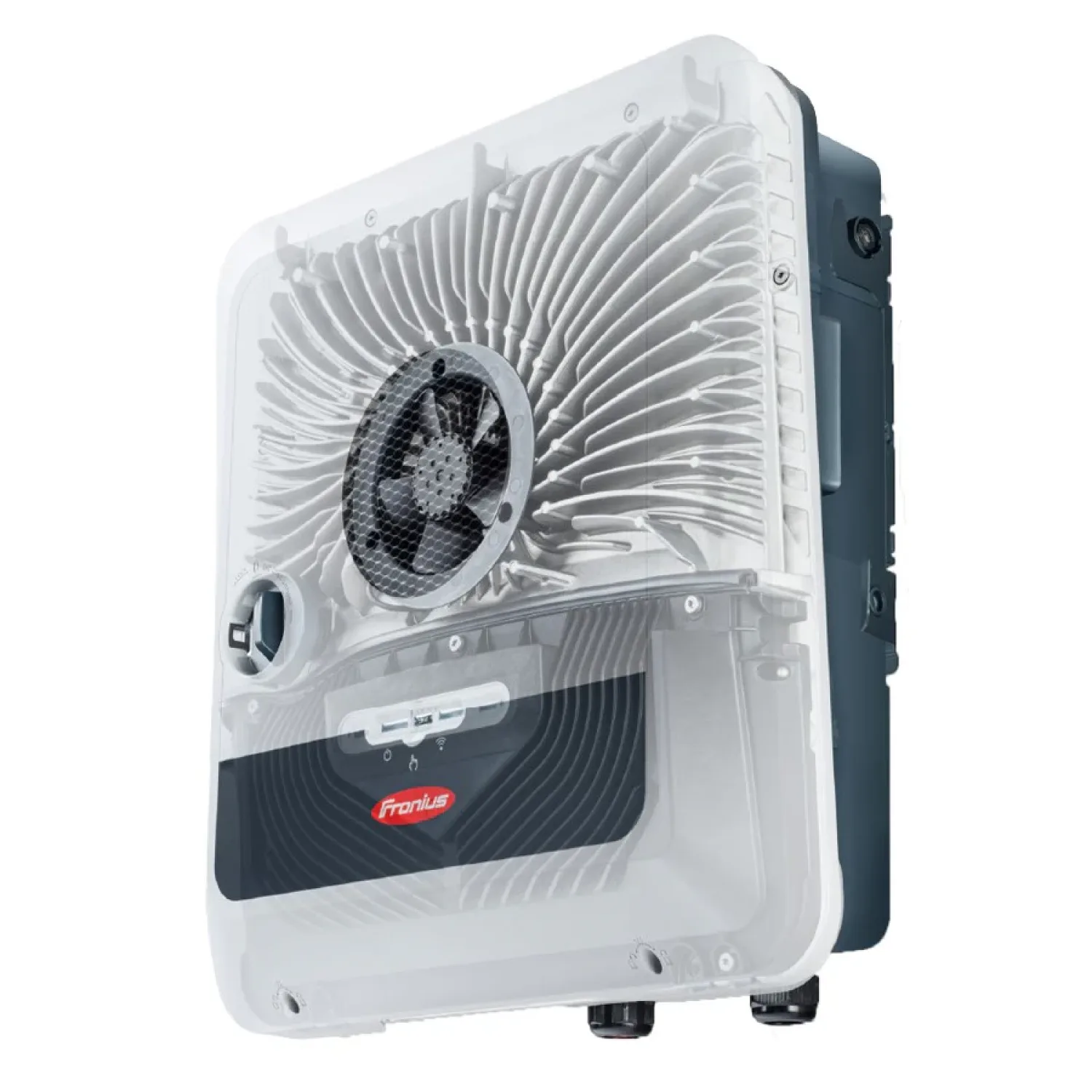

- Cooling
- Active cooling technology
- Noise Level
- < 47 dB(A)
Features & Compatibility
- Warranty
- 60 months
- Certifications
- CE, IEC 62109, IEC 62116, IEC 61727, IEC 62909, VDE-AR-N 4105, EN 50549, AS/NZS 4777.2, G98/G99
- Compatibility
- Compatible with Fronius ecosystem and approved high-voltage batteries (BYD Battery-Box Premium HVS/HVM, LG FLEX)
- Communication
- WLAN, Ethernet (LAN), RS485, Modbus TCP SunSpec, Modbus RTU, Fronius Solar API (JSON)
- Display
- Integrated status LEDs (no display)
- Monitoring
- Fronius Solar.web – web & app-based remote monitoring, integrated datalogger and web server
- Parallel Capability
- Not supported
