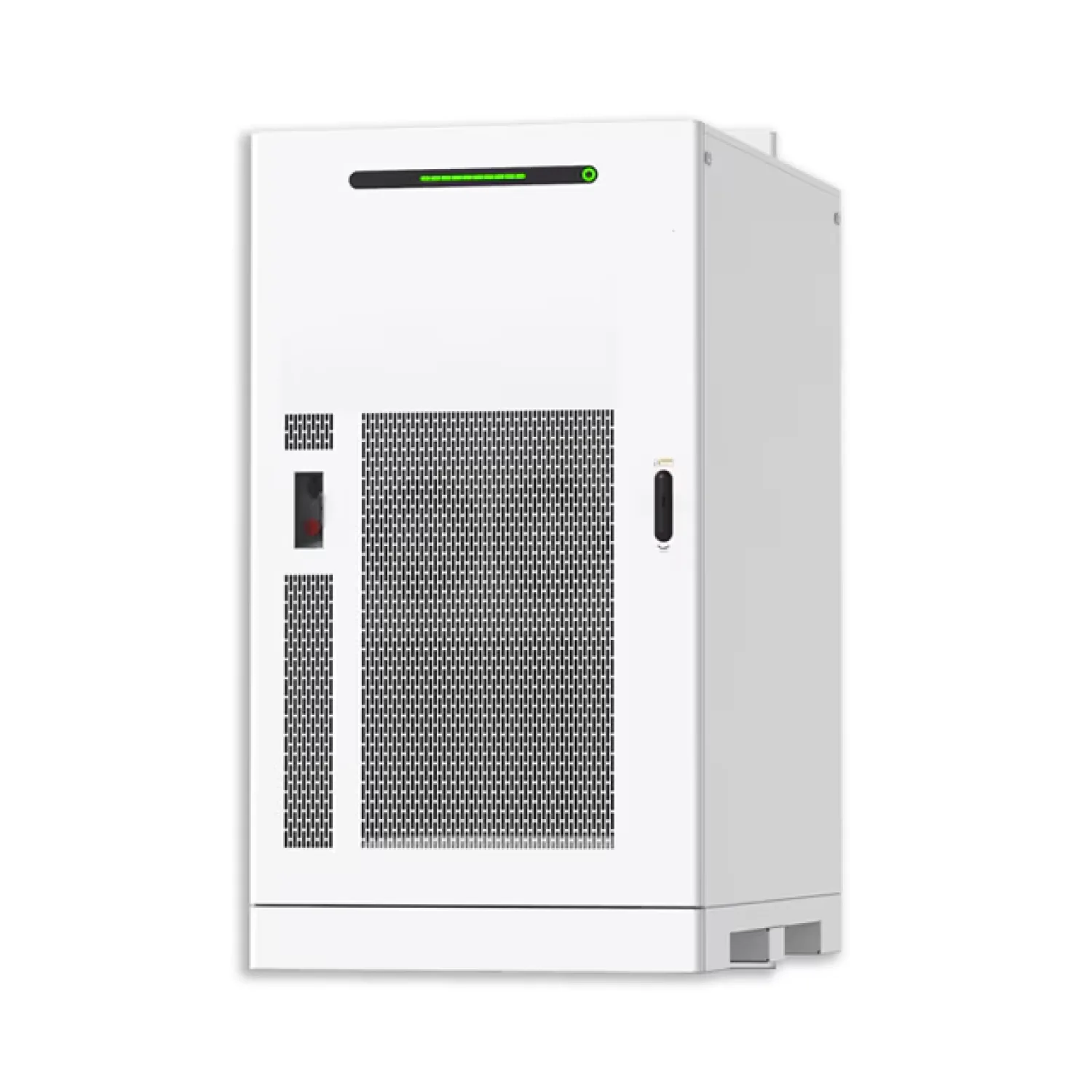

HUAWEI - LUNA2000-215KWH-2S10

The Huawei LUNA2000-215-2S10 Smart String Energy Storage System is a high-capacity, modular energy storage solution designed for commercial and industrial applications. With a total usable energy capacity of 215 kWh and a high cycle efficiency of 91.3%, it ensures optimal energy utilization and reliability.

Featuring advanced Lithium Iron Phosphate (LFP) battery technology, the system offers enhanced safety, longevity, and performance. Its hybrid cooling system, combining air and liquid cooling, maintains optimal operating temperatures, ensuring stability even under extreme environmental conditions.

The LUNA2000-215-2S10 supports seamless integration with Huawei's SmartLogger 3000C, allowing for parallel connection of up to 20 units, scaling the total capacity to over 4 MWh. Its robust design, with IP55 protection and a wide operating temperature range, makes it suitable for various installation environments.

Specifications:

Model: LUNA2000-215-2S10

Battery Type: Lithium Iron Phosphate (LFP)

Total Energy Capacity: 215.0 kWh

Usable Energy: 215.0 kWh

Nominal Capacity: 280.0 Ah

Maximum Cycle Rate: 0.5 CP

Cycle Efficiency: 91.3%

Depth of Discharge (DoD): 100%

Operating Voltage Range: 600 V – 1500 V DC

Rated Charge/Discharge Current:

164.1 A @ 380 V AC

155.9 A @ 400 V AC

150.3 A @ 415 V AC

Overload Current (1.1x):

180.5 A @ 380 V AC

171.5 A @ 400 V AC

Physical Characteristics:

Dimensions (W × D × H): 1150 mm × 1800 mm × 2100 mm

Weight: ≤ 2.8 t

Installation: Ground-mounted

Enclosure Protection: IP55

Cooling Method: Hybrid (air and liquid)

Noise Level: ≤ 65 dB

Environmental Conditions:

Operating Temperature Range: –30°C to +55°C (derating above 50°C)

Storage Temperature Range: –35°C to +60°C

Relative Humidity: 5% to 95% RH (non-condensing)

Maximum Operating Altitude: 4000 m (derated above 2000 m)

Communication & Integration:

Communication Interfaces: Ethernet / Optical Fiber (optional)

Communication Protocol: Modbus TCP

System Compatibility: Supports parallel connection of up to 20 units via SmartLogger 3000C

Auxiliary Power Supply:

UPS: 176–300 V AC, 500 W

Mains: 176–300 V AC, single-phase, dual-live wire, ≤ 5 kVA

Safety & Certifications:

Battery Chemistry: Lithium Iron Phosphate (LFP)

Safety Features: Thermal Runaway Suppression System (TRSD), smoke detector, heat detector, CO sensor, water sensor
