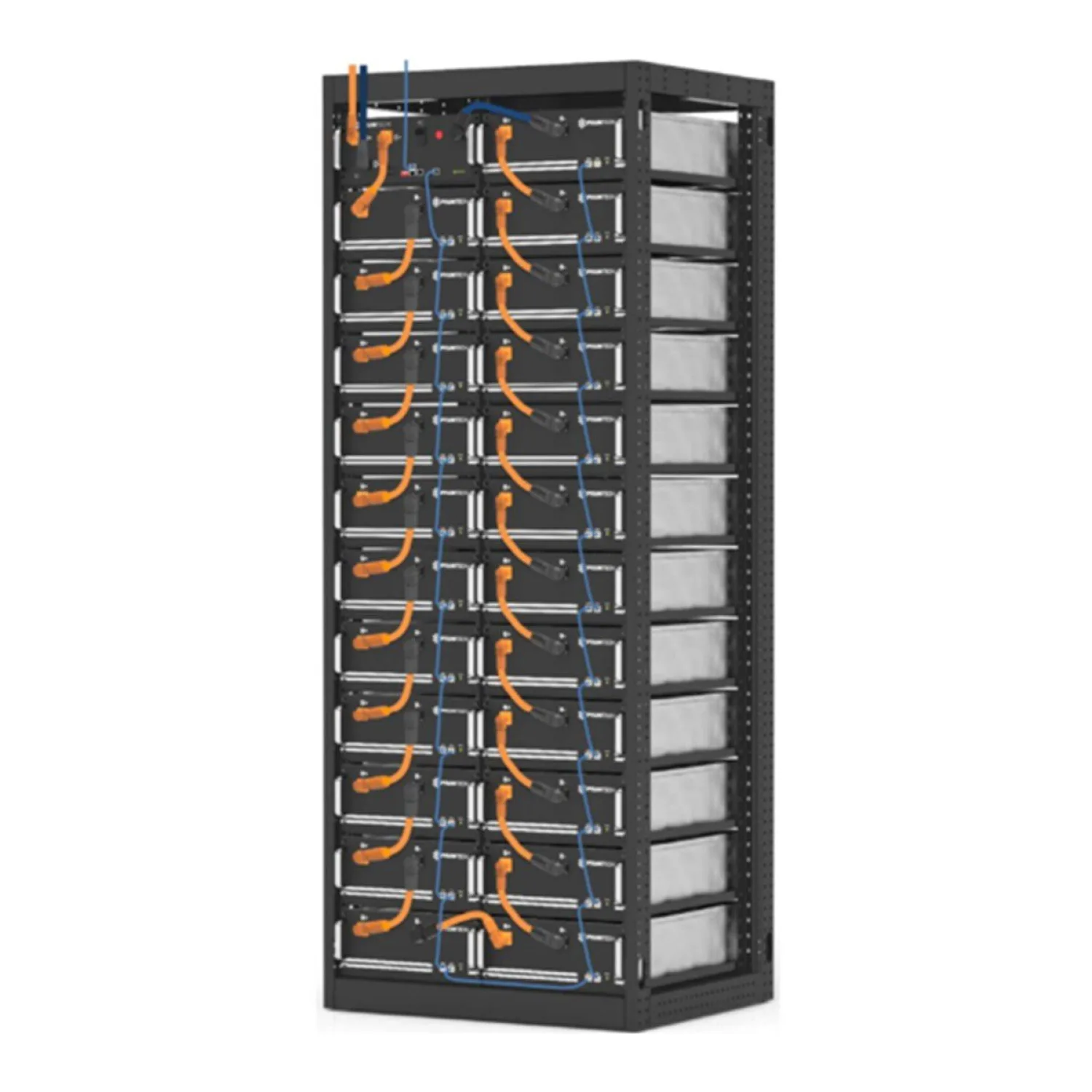

Pylontech Powercube M1C 100kWh Indoor Rack

The Pylontech PowerCube M1C is a modular, high-voltage lithium iron phosphate (LiFePO₄) energy storage system designed for commercial and industrial applications. With a total capacity of 108.9kWh, it offers reliable and efficient energy storage for various scenarios, including peak shaving, load shifting, and backup power. Its modular design allows for scalability and flexibility, making it an ideal solution for large-scale energy storage needs.

Specifications:

Model: PowerCube M1C

Battery Type: Lithium Iron Phosphate (LiFePO₄)

Total Capacity: 108.9 kWh

Nominal Voltage: 736 V DC

Voltage Range: 783 – 972 V DC

Depth of Discharge (DoD): 90%

Round-trip Efficiency: 96% (@0.5C rate)

Cycle Life: 7,000 cycles at 25°C

Design Life: 10+ years

Operating Temperature: +10°C to +40°C

Storage Temperature: -20°C to +60°C

Humidity: 5% – 95% (non-condensing)

Altitude: <2,000 m

Protection Rating: IP20

Cooling Method: Natural convection

Communication Interfaces: RS485, CAN

Dimensions (W × D × H): 815 × 659 × 2,130 mm

Weight: 1,250 kg
