Sungrow

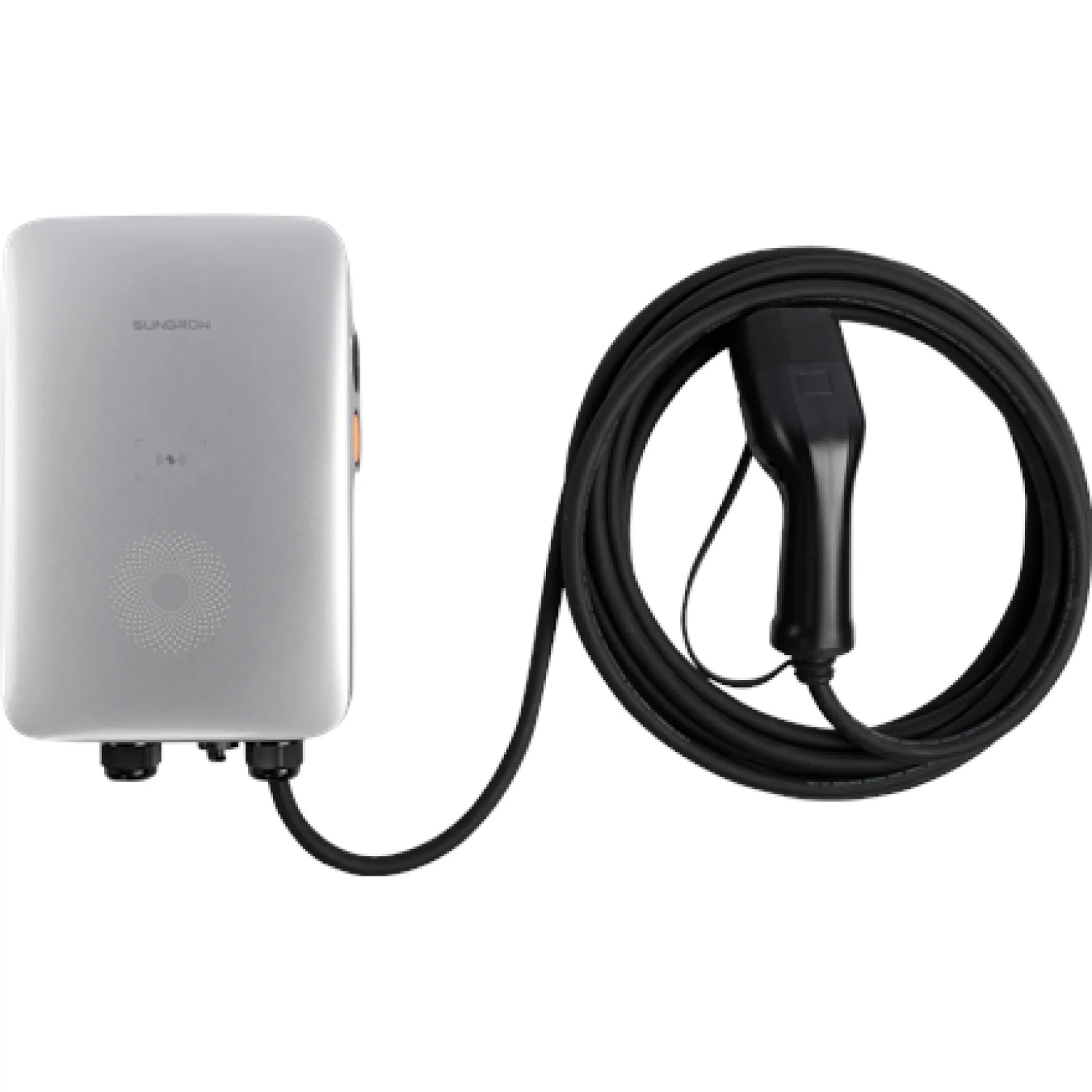

SUNGROW | EV Charger AC 11kW AC011E-01 | ACH00015 | 11 kW | 7 m | White/Black
Product Code: SUNGROW-AC011E01-11K-T2-7M-WB
€387.45
+ VAT based on country
11 kW 3-phase AC wallbox with 7 m Type 2 cable. Wi-Fi + RS485, RFID/App control, DC 6 mA detection, IP65, IK08, –30…+50 °C.
Out of stock
Out of stock right now. Leave your email and we'll tell you the moment it's back.
Technical Specifications
The SUNGROW AC011E-01 (ACH00015) is a smart AC EV charger for residential and commercial use, delivering up to 11 kW (3-phase) through an integrated 7 m Type 2 (IEC 62196-2) cable. It supports grid-friendly operation with PV surplus charging and dynamic load management (with accessories), and integrates with SUNGROW iSolarCloud and iHomeManager EMS for intelligent control.
Specifications
Electrical
- Max charging power: 11 kW (AC, 3-phase)
- Output current: up to 16 A per phase
- Operating voltage: 230/400 V AC
- Phases: 1-phase or 3-phase compatible
- Connector / cable: Type 2, fixed 7 m cable
- Vehicle compatibility: All EVs with Type 2 inlet
Smart integration & connectivity
- Platforms: Supports SUNGROW iSolarCloud; compatible with iHomeManager EMS
- Functions: PV surplus charging; dynamic load management (with add-ons); scheduled charging / TOU optimization
- Interfaces: Ethernet, Wi-Fi, Bluetooth
- User authentication: Plug & Charge or RFID card (optional)
- User interface: LED status indicators; control via iSolarCloud mobile app
Protection & safety
- Over/under-voltage protection
- Over-current protection
- Ground-fault protection
- Temperature monitoring / over-temperature shutdown
- Surge / lightning protection
Mechanical & environment
- Operating temperature: –30 °C to +55 °C
- Enclosure rating: IP65 (indoor/outdoor)
- Dimensions (W × H × D): ~270 × 360 × 120 mm
- Weight: ~4.5 kg
- Finish: White/Black housing; robust, UV-resistant polycarbonate
- Mounting: Wall mount; pedestal optional
Compliance
- Standards: IEC 61851-1, EN 62196-2, CE, RoHS (and related)
Power & Energy
- Power Output
- 11000 W
- Nominal Power
- 11000 W
- Phase Type
- three-phase
- Power
- 11
- Charging Power
- 11
Solar
- Input Voltage
- 3/N/PE, 400 VAC (±20%)
- Voltage
- 230/400 VAC
- Frequency
- 50/60 Hz (47–63 Hz)
Physical
- Dimensions
- 205 × 310 × 92 mm
- Weight
- 3.80 kg
- Installation Type
- Wall-mounted
- Mounting Options
- Wall backplate; optional pedestal
Environmental
- Operating Temperature
- –30 °C to +50 °C
- Protection Rating
- IP65
- Cooling
- Natural convection
- Noise Level
- <25 dB
Features & Compatibility
- Warranty
- 60 months (5 years)
- Certifications
- IEC 61851-1/21/22, IEC 62196-2, IEC 62955, CE, RoHS
- Communication
- Wi-Fi, RS485
- Monitoring
- iSolarCloud App / cloud
- Parallel Capability
- Adaptive/Dynamic Load Management (with smart meter via RS485)
