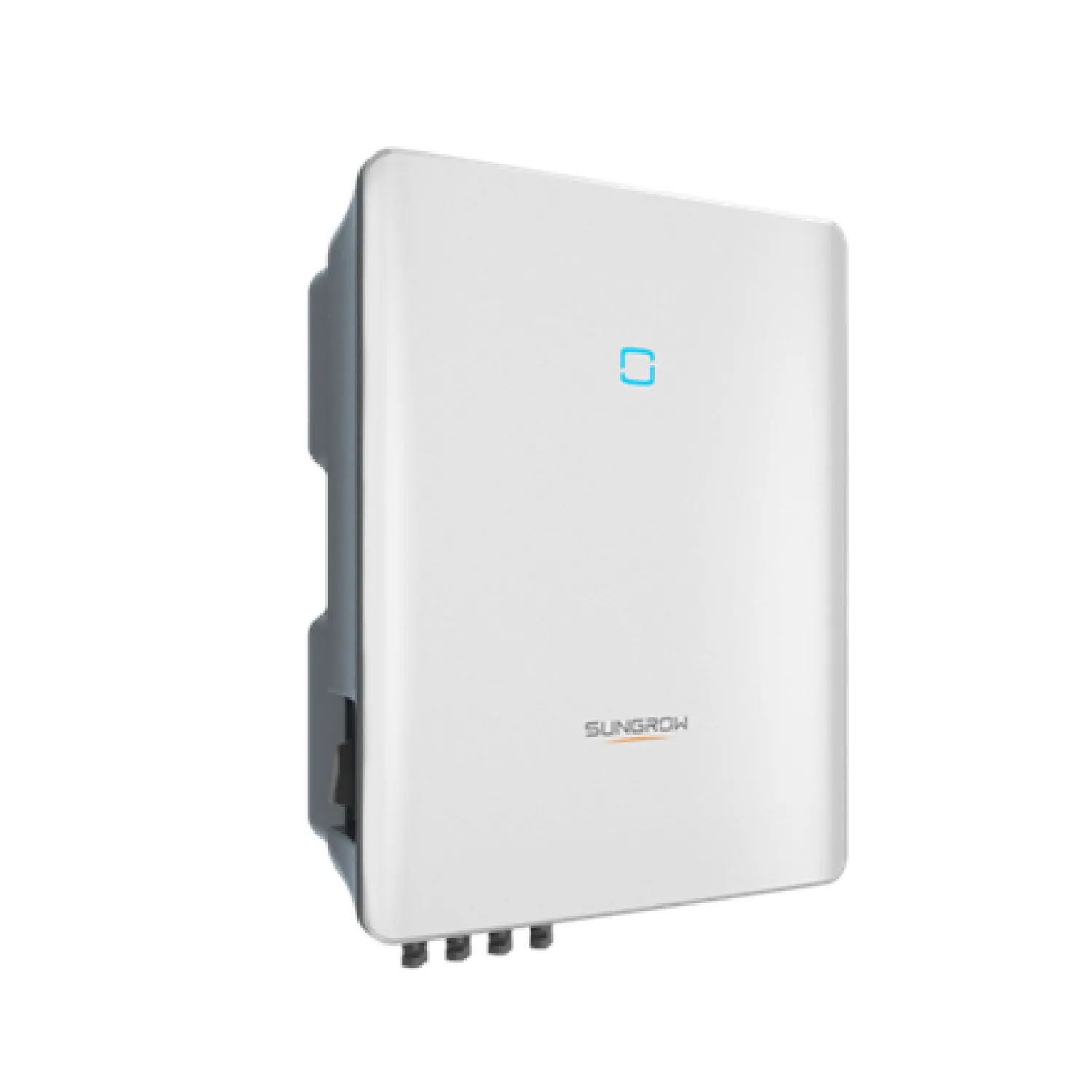

SUNGROW | Inverter On-Grid SG8.0RT 1000Vdc 8kW 2MPPT | ASG01778
Product Code: SG8.0RT
Delivery €12.10 · Ships across the EU
Out of stock
Out of stock right now. Leave your email and we'll tell you the moment it's back.
Technical Specifications
The SUNGROW SG8.0RT is a compact and reliable 8 kW on-grid three-phase inverter designed for residential and small commercial PV installations. Featuring dual MPPTs, high conversion efficiency, built-in PID recovery, arc fault protection, and a wide MPPT voltage range, it ensures optimal performance and safety. With a fanless IP65-rated design, it's quiet, durable, and easy to install and commission via app connectivity.
Specifications:
Type: Three-phase string inverter
Rated Output Power: 8,000 W
Max. Output Power: 8,800 VA
Max. PV Input Power: 12,000 Wp
Max. Efficiency: 98.5%
European Efficiency: 97.8%
MPPT: 2 trackers, 2 inputs
MPPT Voltage Range: 160 V – 1,000 V
Max. Input Voltage: 1,100 V
Min. / Start-up Input Voltage: 180 V
Rated Input Voltage: 600 V
Max. Input Current (per MPPT): 16 A
Max. Short Circuit Current (per MPPT): 20 A
Max. Current for DC Connector: 32 A
Rated Output Voltage:
220 / 380 V
230 / 400 V
240 / 415 V (3 / N / PE)
AC Voltage Range: 180 – 276 V / 311 – 478 V
Rated Grid Frequency: 50 Hz / 60 Hz
Grid Frequency Range: 45 – 55 Hz / 55 – 65 Hz
Max. Output Current: 13.3 A
Rated Output Current (@ 230 V): 11.6 A
Power Factor: >0.99 (adjustable from 0.8 leading to 0.8 lagging)
Total Harmonic Distortion (THD): < 3%
Cooling: Natural convection (fanless)
Dimensions: 370 × 480 × 195 mm
Weight: 18 kg
IP Rating: IP65
Operating Temperature Range: –25°C to +60°C
Max. Operating Altitude: 4,000 m
Relative Humidity: 0% – 100% (non-condensing)
Nighttime Power Consumption: < 6 W
Communication: RS485, WLAN, Ethernet, DI/DO
Display: LED indicators
DC Connection Type: MC4 (max. 6 mm²)
AC Connection Type: Plug and play
Mounting: Wall-mounting bracket
Topology: Transformerless
Corrosion Protection: C5 rated
Protections:
Type II SPD (DC & AC)
AFCI (Arc fault circuit interrupter)
PV string monitoring
PID recovery
Ground fault monitoring
Reverse polarity
Leakage current
AC short circuit
Grid monitoring
Power & Energy
- Power Output
- 8000 W
- Nominal Power
- 8000 W
- Efficiency
- 98.5 %
- Power Factor
- 0.8 leading to 0.8 lagging
- THD
- < 3 %
- Phase Type
- three-phase
- Inverter Type
- standard
- Power
- 8
Solar
- Input Voltage
- 200 – 1000 V DC
- Output Voltage
- 3 / N / PE, 230 / 400 V AC
- Voltage
- 600 V DC (rated)
- Frequency
- 50 / 60 Hz
- MPPT Range
- 200 – 1000 V DC
- Max PV Power
- 12,000 Wp
- Max PV Voltage
- 1100 V
- Max PV Current
- 16 A per MPPT
- Grid Tie
- Yes, with anti-islanding protection
- MPPT Count
- 2
Physical
- Dimensions
- 370 × 480 × 195 mm
- Weight
- 27.0 kg
- Installation Type
- Wall-mounted
- Mounting Options
- Wall bracket included
Environmental
- Operating Temperature
- –25°C to +60°C
- Protection Rating
- IP65
- Cooling
- Natural convection (fanless)
- Noise Level
- < 30 dB
Features & Compatibility
- Warranty
- 60 months
- Certifications
- CE, IEC 62109-1, IEC 62109-2, IEC 61727, IEC 62116, EN 50549-1, VDE-AR-N 4105
- Compatibility
- Compatible with residential and small commercial PV systems, standard 1000 V DC PV modules
- Communication
- RS485, Ethernet, WLAN
- Display
- LED indicators (no LCD display)
- Monitoring
- iSolarCloud monitoring platform (web & mobile app)
- Parallel Capability
- Grid-parallel operation only (no master/slave limitation)
