Sungrow

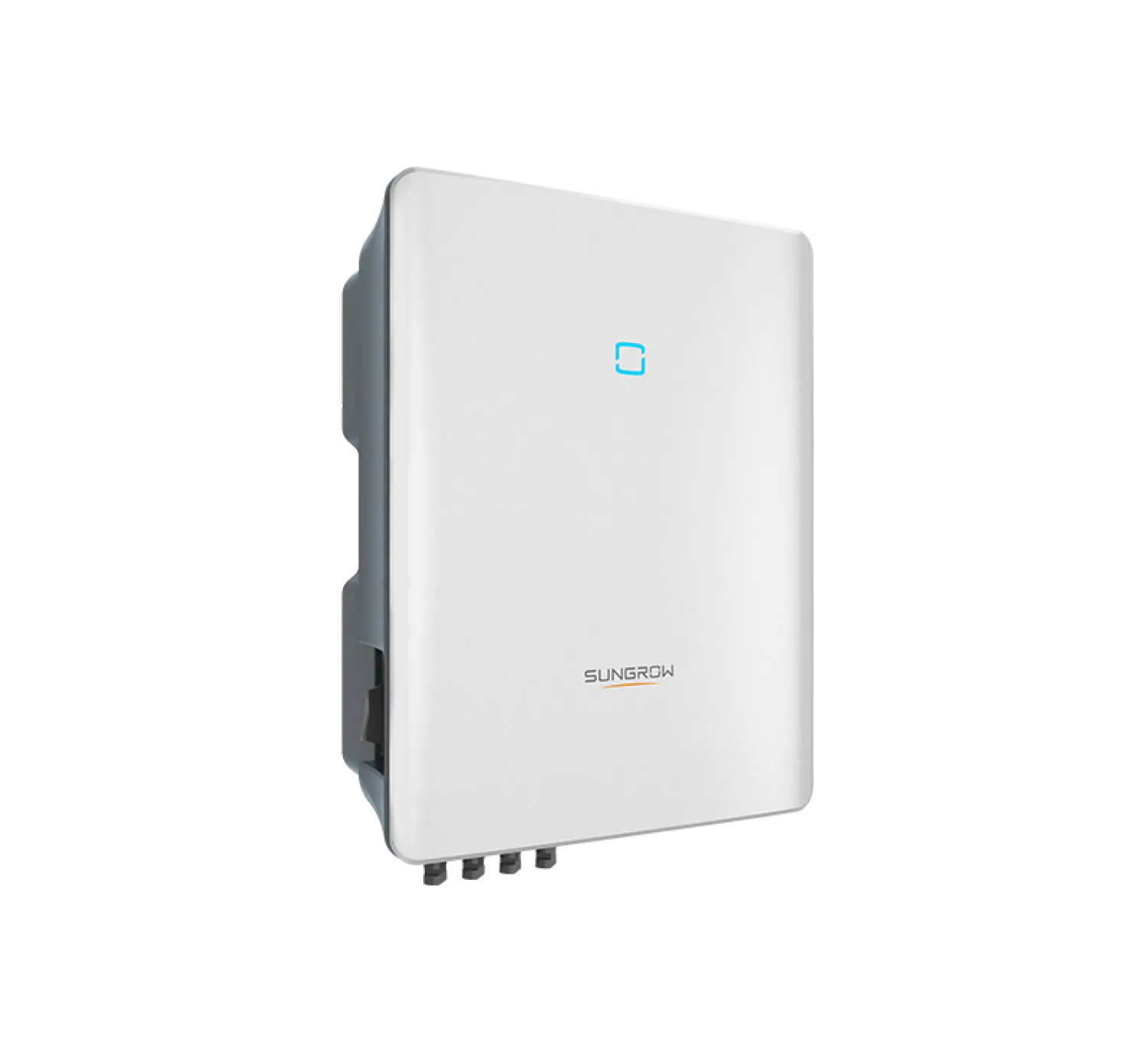

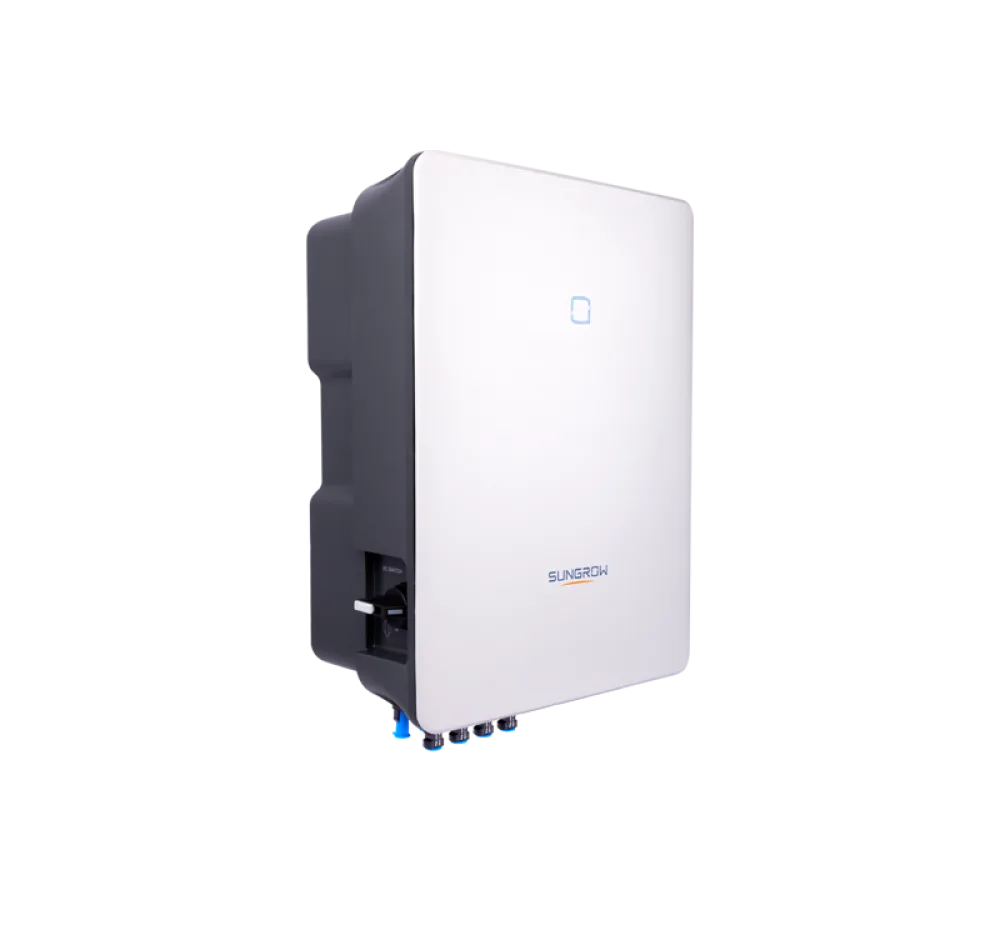

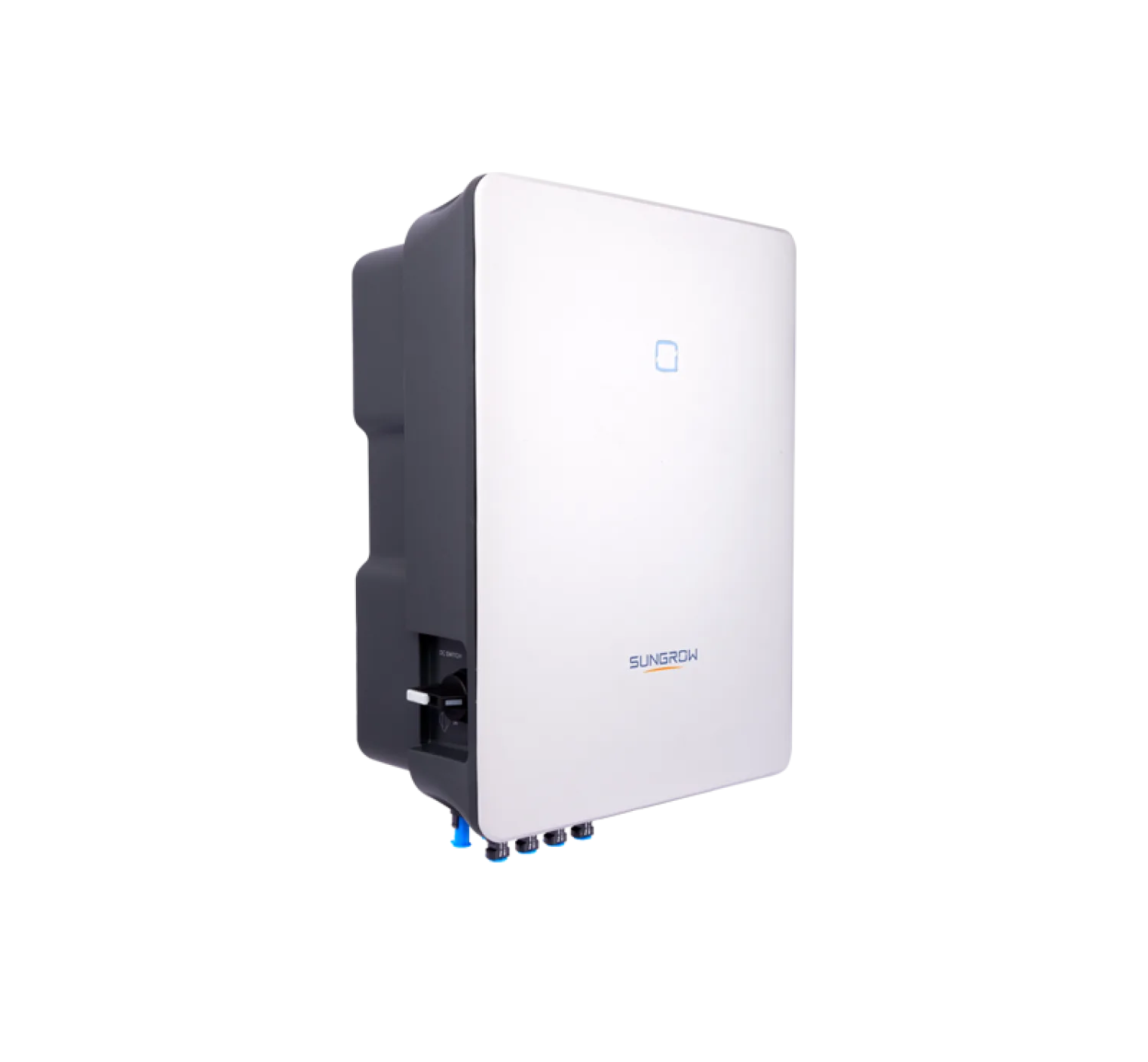

SUNGROW Inverter On-Grid SG10RT-P2 1000Vdc 10kW 2MPPT
Produktkode: SUN-SG10RT-P2-EU
På lager
Tekniske specifikationer
The Sungrow SG10RT-P2 is a three-phase on-grid inverter designed for high-efficiency residential and commercial PV installations. With dual independent MPPT trackers and a wide input voltage range (160–1000 VDC), this inverter ensures optimal performance even under partial shading or uneven string configurations.
Delivering up to 10 kW of nominal AC power and 98.5% maximum efficiency, the SG10RT-P2 minimizes energy loss and maximizes solar yield. The inverter integrates Type II surge protection on both AC and DC sides, an arc-fault circuit interrupter (AFCI), and PID recovery, ensuring the highest levels of safety and reliability.
Its compact, 18 kg transformerless design allows for quick wall-mounted installation, while IP65-rated protection guarantees durability in any environment. The SG10RT-P2 supports Wi-Fi, Ethernet, and RS485 communication for real-time system monitoring via the Sungrow iSolarCloud platform.
Built for long-term reliability and simple operation, the SG10RT-P2 combines smart monitoring, high yield, and easy maintenance, making it one of the most trusted inverters in Sungrow’s 1000V range.
Power & Energy
- Power Output
- 10,000 W
- Nominal Power
- 10,000 W
- Peak Power
- 11,000 VA
- Efficiency
- 98.5 %
- Power Factor
- > 0.99
- THD
- < 3 %
- Transfer Time
- < 10 ms
Solar
- Input Voltage
- 160 – 1,000 V DC
- Output Voltage
- 3 / N / PE – 400 V AC
- Voltage
- 600 V DC
- Frequency
- 50 / 60 Hz
- MPPT Range
- 160 – 1,000 V DC
- Max PV Power
- 15,000 W
- Max PV Voltage
- 1,100 V
- Max PV Current
- 2 × 16 A (per MPPT)
- Grid Tie
- Yes, with anti-islanding
Physical
- Dimensions
- 370 × 480 × 195 mm
- Weight
- 18 kg
- Installation Type
- Wall-mounted
- Mounting Options
- Wall bracket included
Environmental
- Operating Temperature
- −25 °C to +60 °C
- Protection Rating
- IP65
- Cooling
- Natural convection
- Noise Level
- < 45 dB
Features & Compatibility
- Warranty
- 5 years
- Certifications
- CE, IEC 62109-1/2, EN 50549, VDE-AR-N-4105, AS/NZS 4777.2:2020
- Compatibility
- ungrow Smart Meter DTSU666 / iHomeManager EMS
- Communication
- RS485, Ethernet, Wi-Fi (optional)
- Display
- LED indicators
- Monitoring
- iSolarCloud App / Web
- Parallel Capability
- Up to 6 units
