FoxESS

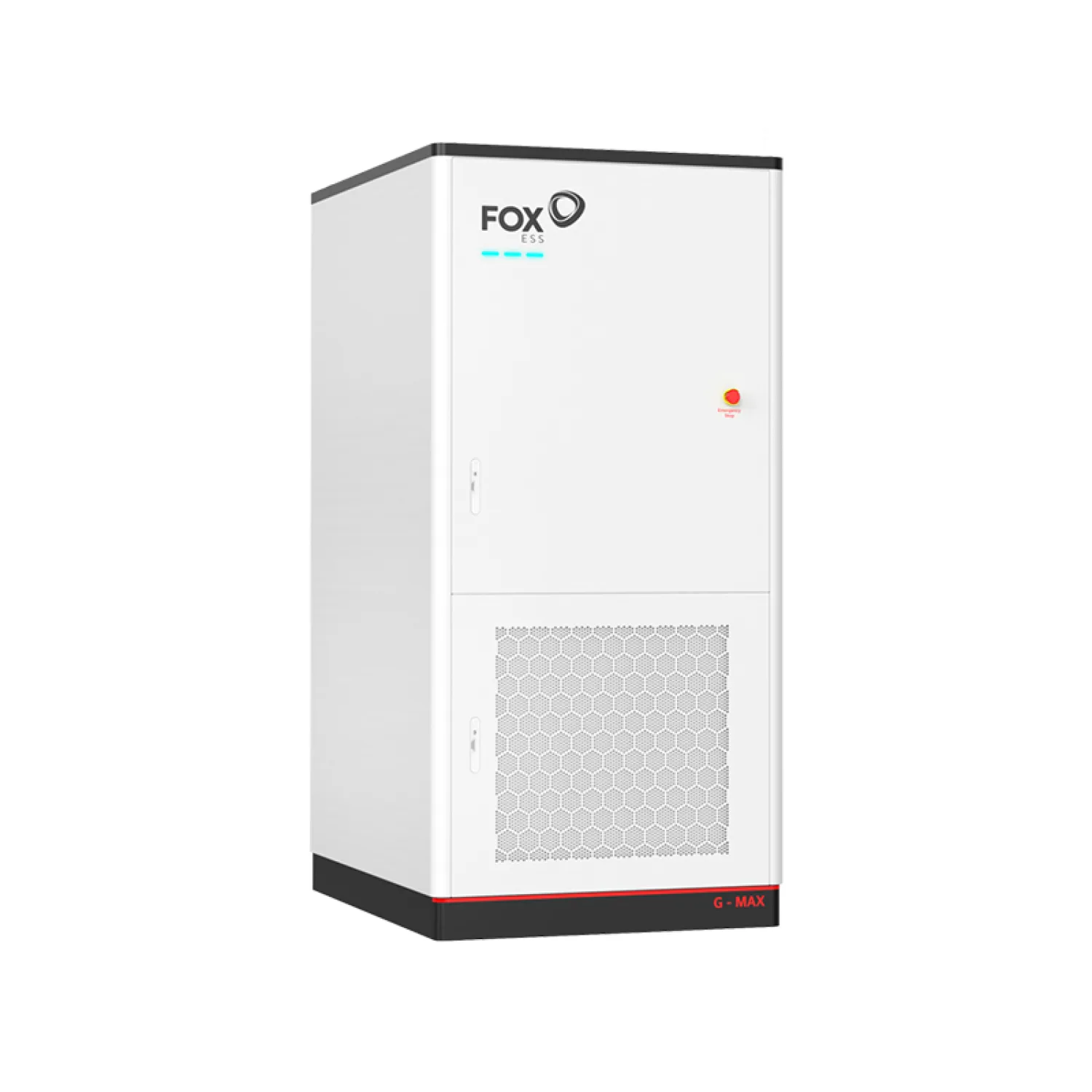

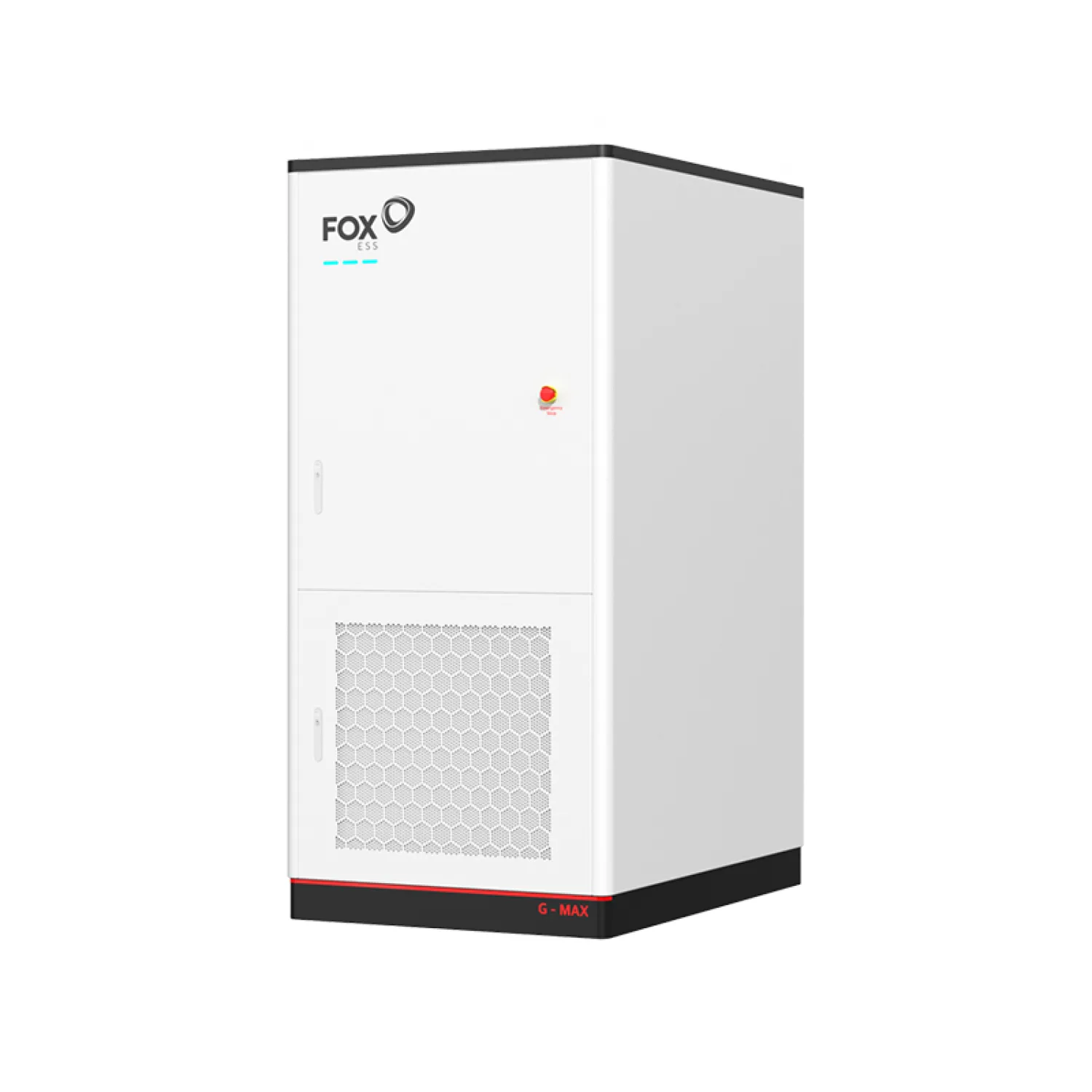

FoxEss - 100kW-215kWh G-MAX Energy Storage
Product Code: FOXESS-GM215KWH-100KW-2H
€34,449.00
+ VAT based on country
The FoxESS GM215KWH-100KW-2H is an all-in-one commercial energy storage system with 215 kWh capacity and 100 kW output, designed for high-performance and scalable applications.
Key Features
- 100 kW rated output
- 110 kW peak output
- 215 kWh system capacity
- High efficiency >89%
- 3-phase system
- Ethernet communication
- Cloud monitoring support
- PV-storage integration
- Grid support functions
- Parallel system expansion
- Peak shaving support
- Load shifting capability
- Frequency regulation
- Smart energy control
- Real-time monitoring
- All-in-one container design
- Outdoor installation
- Plug-and-play setup
- Compact integrated system
- Scalable architecture
- Aerosol fire protection
- IP54 system protection
- Battery pack IP67
- Preventive alarm system
- Certified safety standards
- Commercial energy storage
- Industrial ESS systems
- Grid support systems
- Peak shaving applications
- Renewable energy integration
Technical Specifications
General
- Brand
- FoxESS
- Model
- FoxEss - 100kW-215kWh G-MAX Energy Storage
- SKU
- FOXESS-GM215KWH-100KW-2H
- Power Output
- 100000 W
- Capacity
- 215 kWh
- Voltage
- 672–876 V
- Efficiency
- >89%
- Dimensions
- 2200 × 1500 × 1040 mm
- Weight
- <2500 kg
- Warranty
- 120 months
Technical
- Battery Type
- LiFePO4
- Battery Voltage
- 672–876 V
- Cycle Life
- ≥8000 cycles
- Output Voltage
- 380/400 V
- Frequency
- 50/60 Hz
- Nominal Power
- 100 kW
- Peak Power
- 110 kW
- THD
- <3%
- Power Factor
- >0.99
- Operating Temperature
- -25°C to +55°C
- Protection Rating
- IP54
- Cooling
- Liquid cooling
- Noise Level
- <75 dB
- Certifications
- IEC 62619, IEC 62477, UN38.3
- Compatibility
- Commercial grid systems
- Communication
- Ethernet
- Monitoring
- FoxESS Cloud
- Parallel Capability
- Yes
- Grid Tie
- Yes
- Installation Type
- Outdoor cabinet
- Mounting Options
- Floor-standing
The FoxESS GM215KWH-100KW-2H is a high-performance all-in-one commercial energy storage system from the G-MAX series, integrating battery, BMS, PCS, and safety systems into a single unit.
Designed for outdoor use, the system provides efficient energy storage with liquid cooling technology, ensuring optimal performance and long service life. It supports advanced energy management functions such as peak shaving, load shifting, and frequency regulation.
With plug-and-play installation, scalable architecture, and smart monitoring via cloud platforms, the system is ideal for commercial and industrial energy storage applications.
Core Electrical Characteristics
- 100 kW rated output
- 110 kW peak output
- 215 kWh system capacity
- High efficiency >89%
- 3-phase system
Connectivity and Integration
- Ethernet communication
- Cloud monitoring support
- PV-storage integration
- Grid support functions
- Parallel system expansion
System Performance and Control
- Peak shaving support
- Load shifting capability
- Frequency regulation
- Smart energy control
- Real-time monitoring
Design and Installation
- All-in-one container design
- Outdoor installation
- Plug-and-play setup
- Compact integrated system
- Scalable architecture
Safety and Compliance
- Aerosol fire protection
- IP54 system protection
- Battery pack IP67
- Preventive alarm system
- Certified safety standards
Typical Applications
- Commercial energy storage
- Industrial ESS systems
- Grid support systems
- Peak shaving applications
- Renewable energy integration
