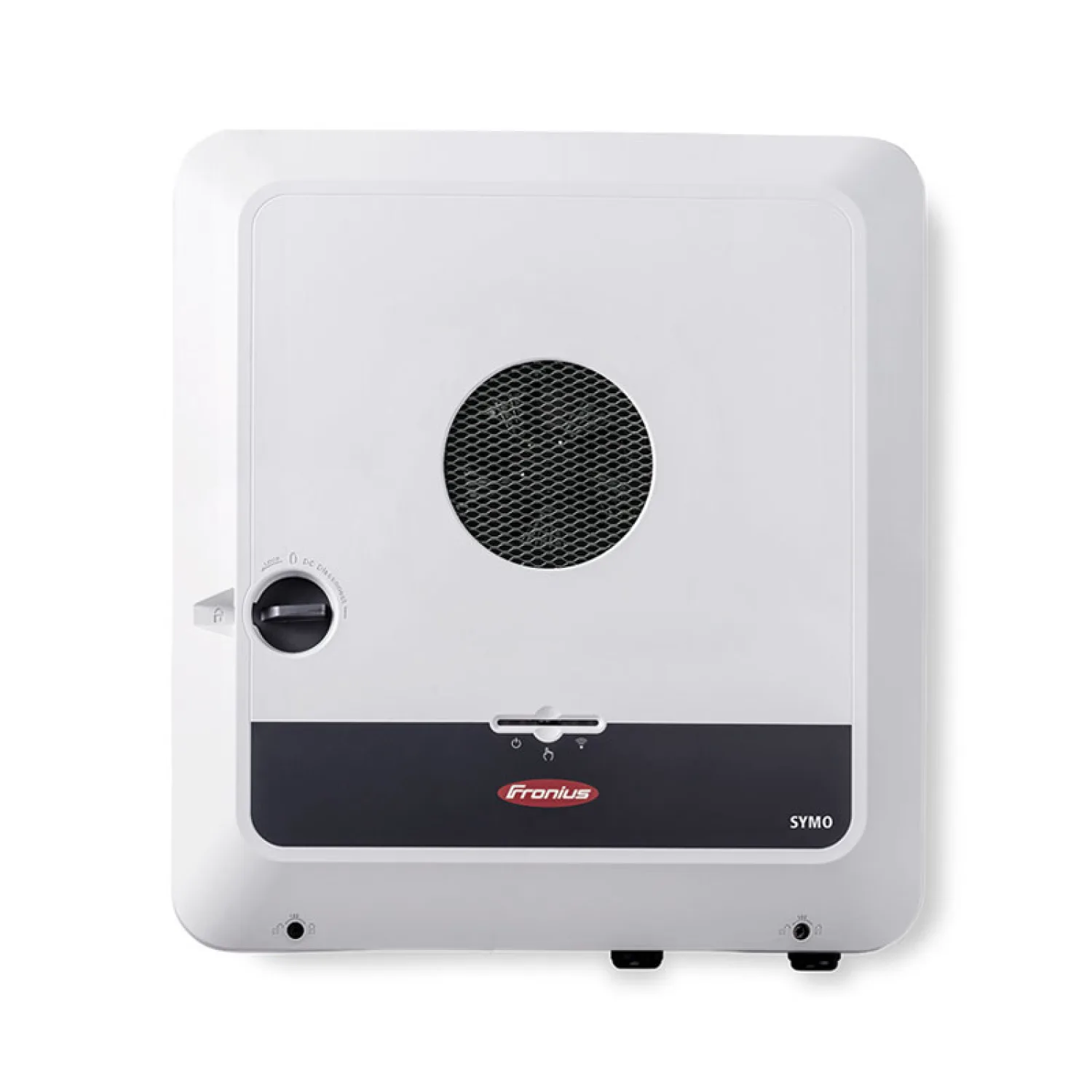

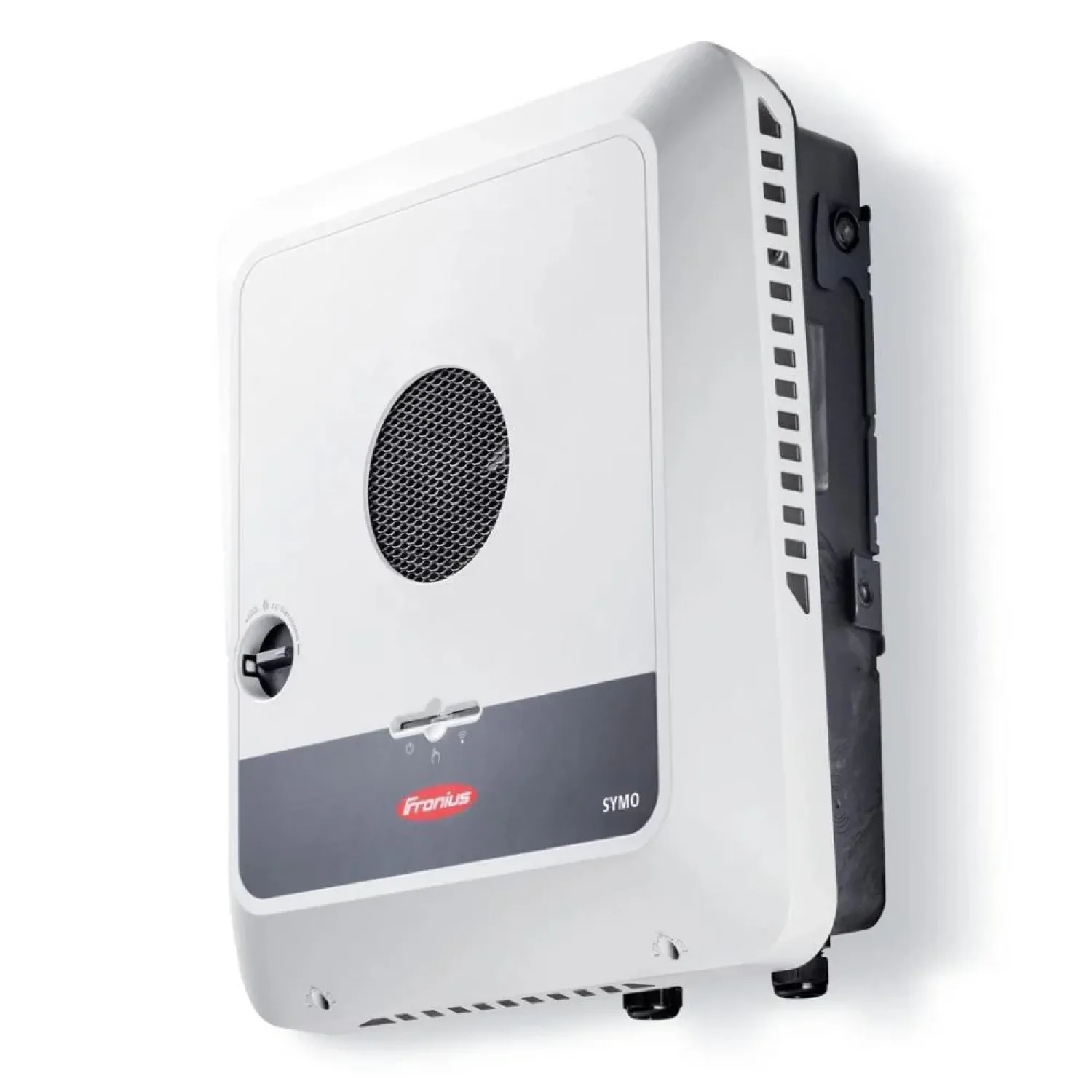

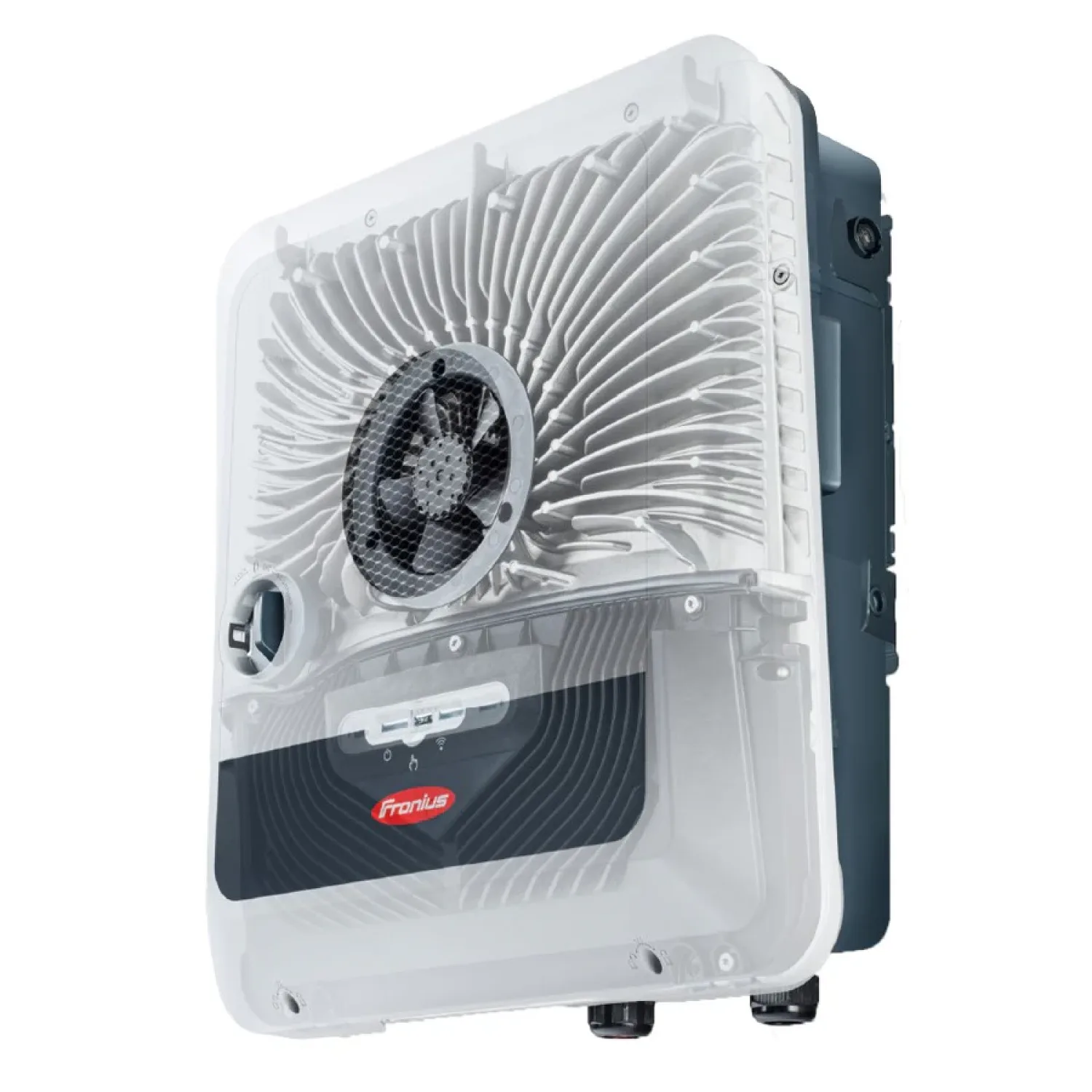

Fronius Symo GEN24 6.0 Plus / Hybrid Inverter
Product Code: 539-6897255b3c000
In stock
Technical Specifications
The Fronius Symo GEN24 6.0 Plus Inverter is a versatile three-phase hybrid inverter designed for modern residential photovoltaic systems. It combines efficient energy conversion with advanced energy management and battery integration, making it a complete solution for solar energy generation, storage, and consumption.
Equipped with Multi Flow Technology, the inverter enables simultaneous energy flows between PV modules, battery storage, and household loads. This ensures maximum self-consumption and optimized system performance. With two MPPT trackers and a wide DC input voltage range, it delivers high energy yields even in complex installation conditions.
The integrated communication package includes Wi-Fi and Ethernet connectivity, allowing real-time monitoring via Fronius Solar.web and seamless integration with smart energy systems. The inverter also supports Modbus and Solar API protocols for advanced system control and third-party integration.
One of the key advantages is its backup power functionality. The PV Point provides basic backup power, while the full backup option enables complete power supply for the entire household when combined with additional components. This ensures high reliability and energy independence.
Core Electrical Characteristics
- AC nominal output of 6000 W
- Three-phase grid connection
- Two MPPT trackers
- Wide DC input voltage range (80–1000 V)
- Maximum efficiency up to 98.2%
Connectivity and Integration
- Built-in Wi-Fi and Ethernet
- Integrated data logging and web server
- Modbus TCP/RTU and Solar API support
- Compatible with BYD Battery-Box Premium systems
- Remote monitoring via Fronius Solar.web
System Performance and Control
- Multi Flow Technology
- Dynamic Peak Manager
- Real-time energy management
- Battery-ready hybrid functionality
- Backup power support (PV Point and Full Backup)
Design and Installation
- Compact wall-mounted design
- Indoor and outdoor installation (IP66)
- Easy installation with SnapINverter concept
- Service-friendly construction
Safety and Compliance
- Protection Class I
- Overvoltage category II/III
- Integrated protection features
- Compliant with IEC, VDE, and CE standards
- Reliable long-term operation
Typical Applications
- Residential solar systems
- Hybrid PV systems with battery storage
- Smart energy management solutions
- Backup power applications
- Self-consumption optimization
Power & Energy
- Power Output
- 6000W
- Nominal Power
- 6000W
- Peak Power
- 6000W
- Efficiency
- 98.2%
- Power Factor
- 0.7–1
- THD
- <3.5%
- Transfer Time
- <90 s
- Phase Type
- three-phase
- Inverter Type
- hybrid
- Power
- 6
Battery
- Battery Type
- LiFePO4 (BYD Battery-Box Premium HVS/HVM)
- Battery Voltage
- 160–531 V DC
- Max Charge Current
- 22A
- Max Discharge Current
- 22A
- Charging Modes
- Solar, Grid
Solar
- Input Voltage
- 80–1000 V DC
- Output Voltage
- 3~ 400 V / 230 V AC
- Voltage
- 610 V DC
- Frequency
- 50/60 Hz
- MPPT Range
- 80–800 V DC
- Max PV Power
- 9000W
- Max PV Voltage
- 1000 V DC
- Max PV Current
- 25A / 12.5A
- Grid Tie
- Yes, with anti-islanding
- MPPT Count
- 2
Physical
- Dimensions
- 595 × 529 × 180 mm
- Weight
- 23.4 kg
- Installation Type
- Wall-mounted
- Mounting Options
- Wall bracket
Environmental
- Operating Temperature
- -25°C to +60°C
- Protection Rating
- IP66
- Cooling
- Regulated air cooling
- Noise Level
- <47 dB
Features & Compatibility
- Warranty
- 60 months
- Certifications
- IEC, VDE, CE
- Compatibility
- BYD Battery-Box Premium HVS/HVM, smart energy systems
- Communication
- WiFi, Ethernet, RS485, Modbus TCP/RTU, Solar API
- Monitoring
- Fronius Solar.web
