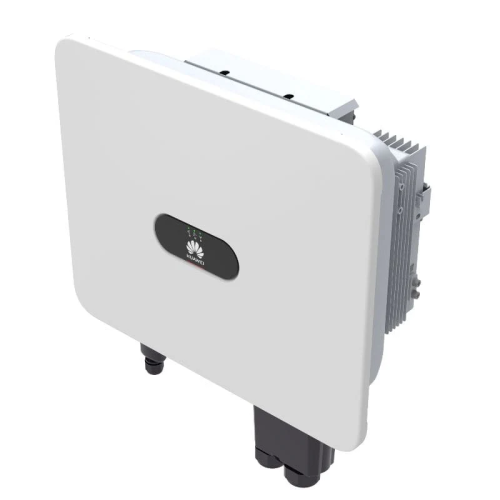

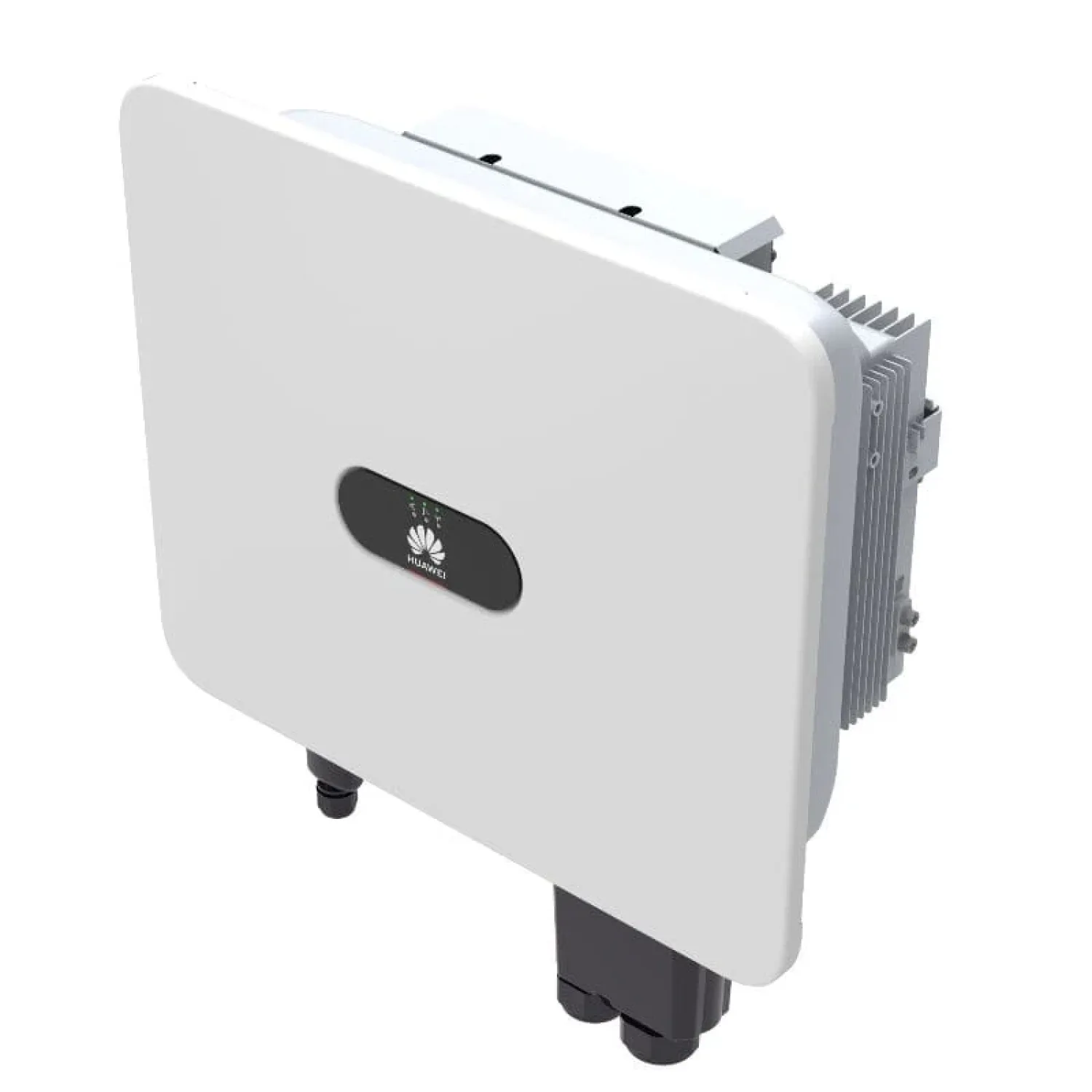

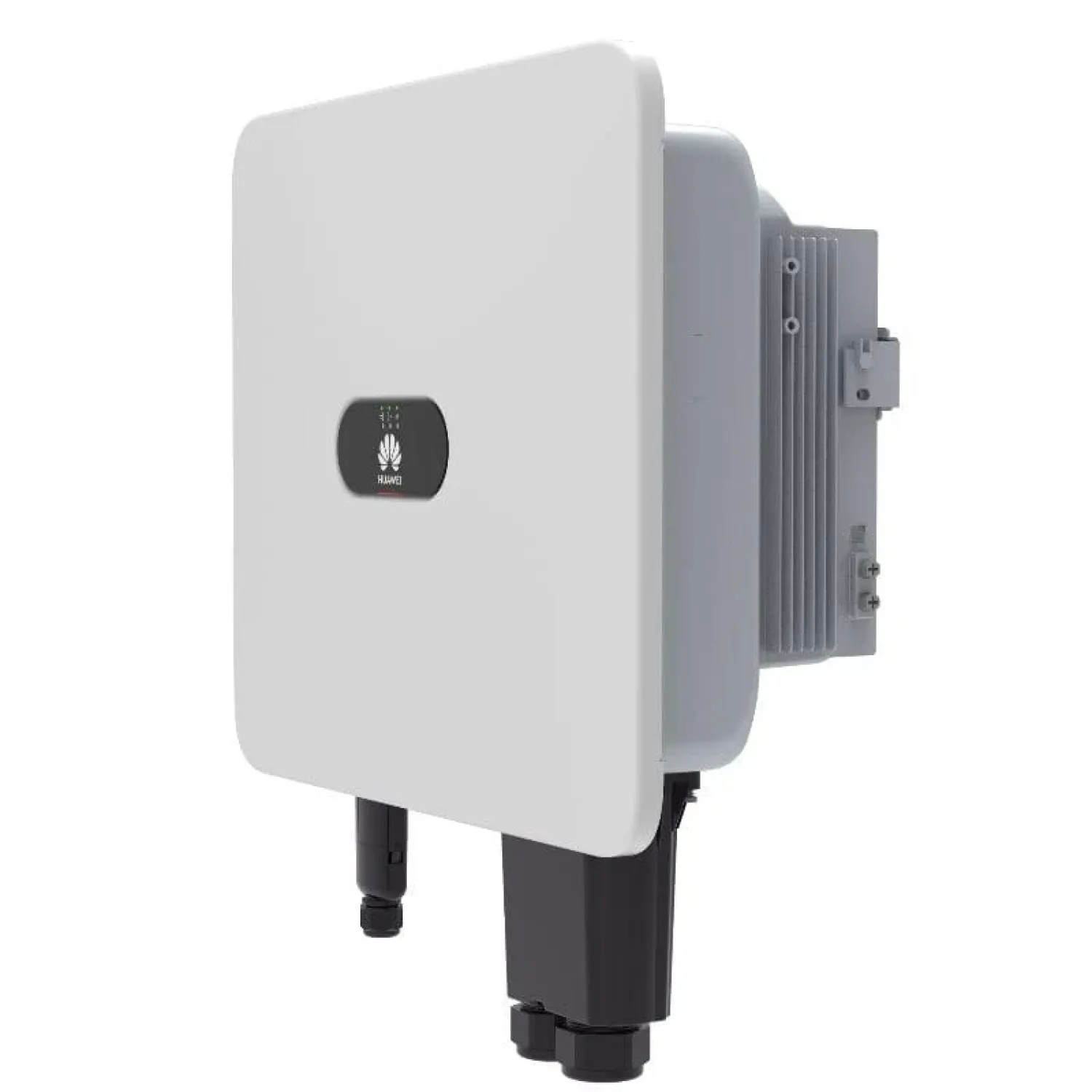

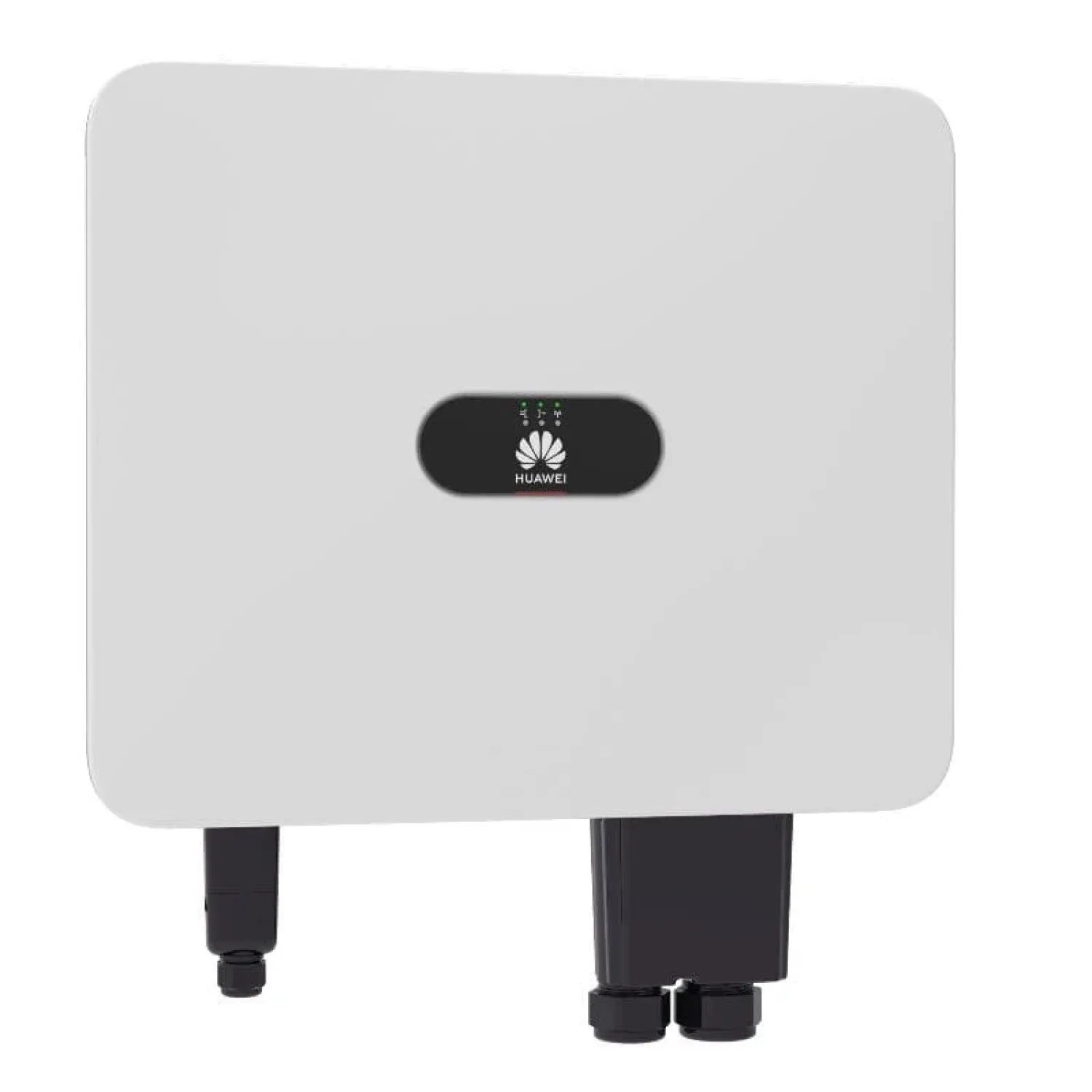

Huawei | High Current Inverter | SUN2000-17KTL-M5
Product Code: HW-17KTL-M5
€549.00
+ VAT based on country
Huawei SUN2000-17KTL-M5 is a 17 kW three-phase high current on-grid inverter featuring 98.4% maximum efficiency, dual MPPT tracking, integrated Type II surge protection, and IP65 weatherproof design. Ideal for residential and commercial PV systems.
Technical Specifications
General
- Brand
- Huawei
- Model
- Huawei | High Current Inverter | SUN2000-17KTL-M5
- SKU
- HW-17KTL-M5
- Power Output
- 17,000 W
- Voltage
- 600 V DC (rated)
- Efficiency
- 98.4 % (European efficiency 98.1 %)
- Dimensions
- 546 × 460 × 228 mm
- Weight
- 27
- Warranty
- 8 years
Technical
- Input Voltage
- 200 – 1,000 V DC
- MPPT Range
- 200 – 1,000 V
- Max PV Power
- 25,500 Wp
- Max PV Voltage
- 1,100 V DC
- Max PV Current
- 30 A per MPPT
- Nominal Power
- 17,000 W
- Peak Power
- 25,500 Wp
- THD
- < 3 %
- Power Factor
- 0.8 leading to 0.8 lagging
- Operating Temperature
- –25 °C to +60 °C
- Protection Rating
- IP65
- Cooling
- Smart forced air cooling
- Noise Level
- < 45 dB
- Certifications
- CE, EN 50549-1, VDE-AR-N-4105, IEC 62109-1/-2, IEC 62116, IEC 61727
- Compatibility
- Huawei SUN2000 M5 series, FusionSolar platform
- Communication
- RS485, Smart Dongle (WLAN/4G), FusionSolar App
- Display
- LED indicators + App interface
- Monitoring
- FusionSolar Smart Monitoring (App & Web)
- Parallel Capability
- Up to 6 units
- Grid Tie
- Yes, with anti-islanding protection
- Installation Type
- Wall-mounted
- Mounting Options
- Mounting plate included
The Huawei SUN2000-17KTL-M5 is a powerful and intelligent three-phase on-grid inverter from Huawei’s High Current M5 series, designed for maximum performance, reliability, and safety in residential and commercial photovoltaic systems.
Delivering a rated output power of 17 kW, this inverter ensures exceptional energy yield through its dual MPPT inputs, achieving a maximum efficiency of up to 98.4% and a European weighted efficiency of 98.1%. With a wide operating voltage range (200–1000 V) and robust 30 A input per MPPT, it is ideal for large-scale installations and high-power PV modules.
Integrated safety features include Type II surge protection on both DC and AC sides, AFCI arc fault protection, and intelligent string monitoring for fast fault detection and prevention. Its IP65-rated enclosure and smart air cooling system ensure reliable performance in all weather conditions.
The inverter supports seamless communication through RS485 or Smart Dongle (WLAN/4G), with real-time monitoring and management available via Huawei’s FusionSolar App.
**Key Features:**
- Rated AC Output: 17,000 W
- Max PV Input Power: 25,500 Wp
- Max Efficiency: 98.4 %
- MPPT Range: 200 – 1000 V
- Max Input Current: 30 A per MPPT
- Dual MPPT design for flexible configuration
- AFCI, Type II SPD, and Smart Monitoring
- Protection Rating: IP65
- Communication: RS485, WLAN, 4G via Smart Dongle
- Warranty: 8 years (extendable to 10 years)
**Applications:**
- Residential rooftops and small commercial PV systems
- Industrial installations requiring high efficiency and robust protection
- Smart solar projects integrated with FusionSolar monitoring
The SUN2000-17KTL-M5 offers an outstanding combination of performance, safety, and smart connectivity, making it one of the most advanced inverters in Huawei’s M5 series.
