Sungrow

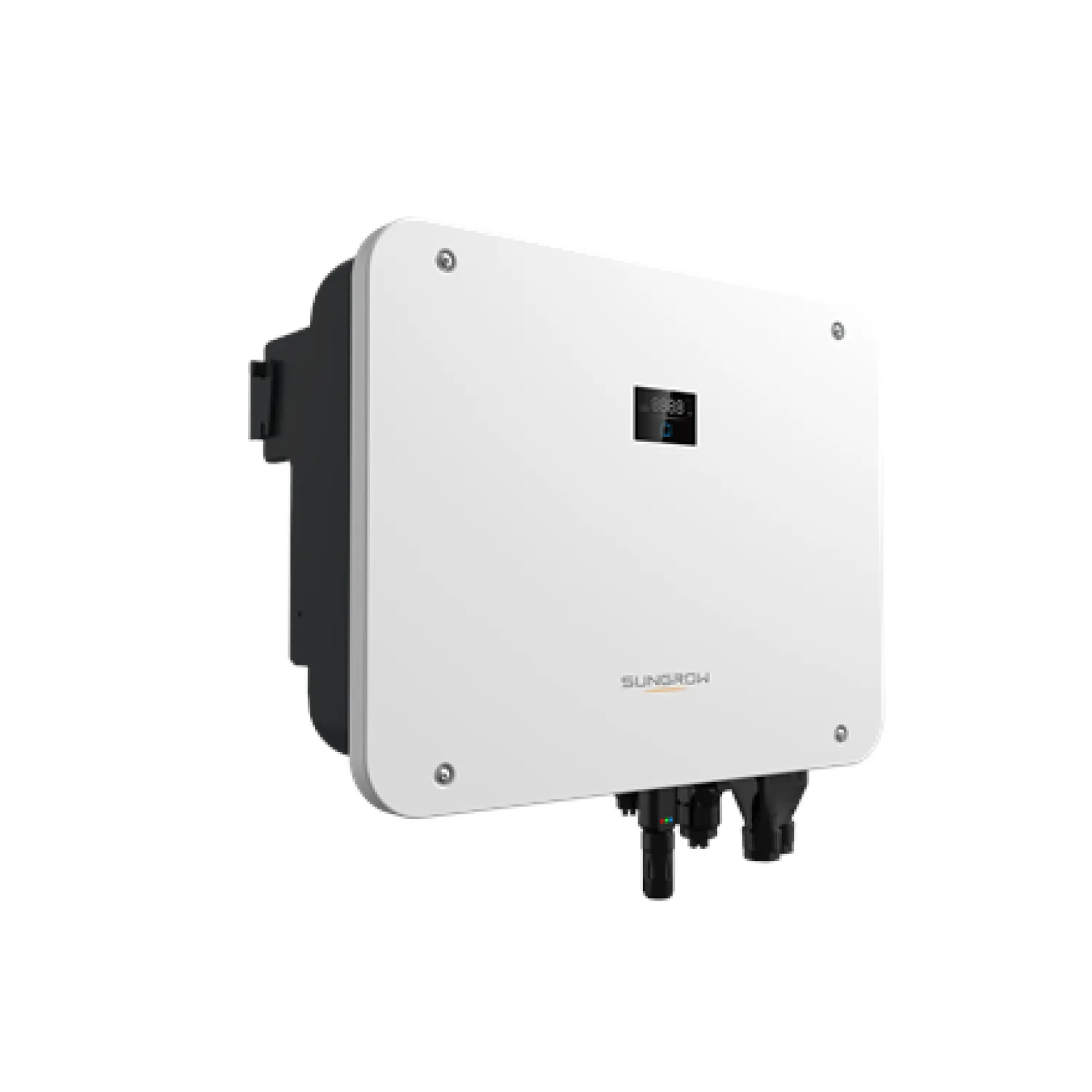

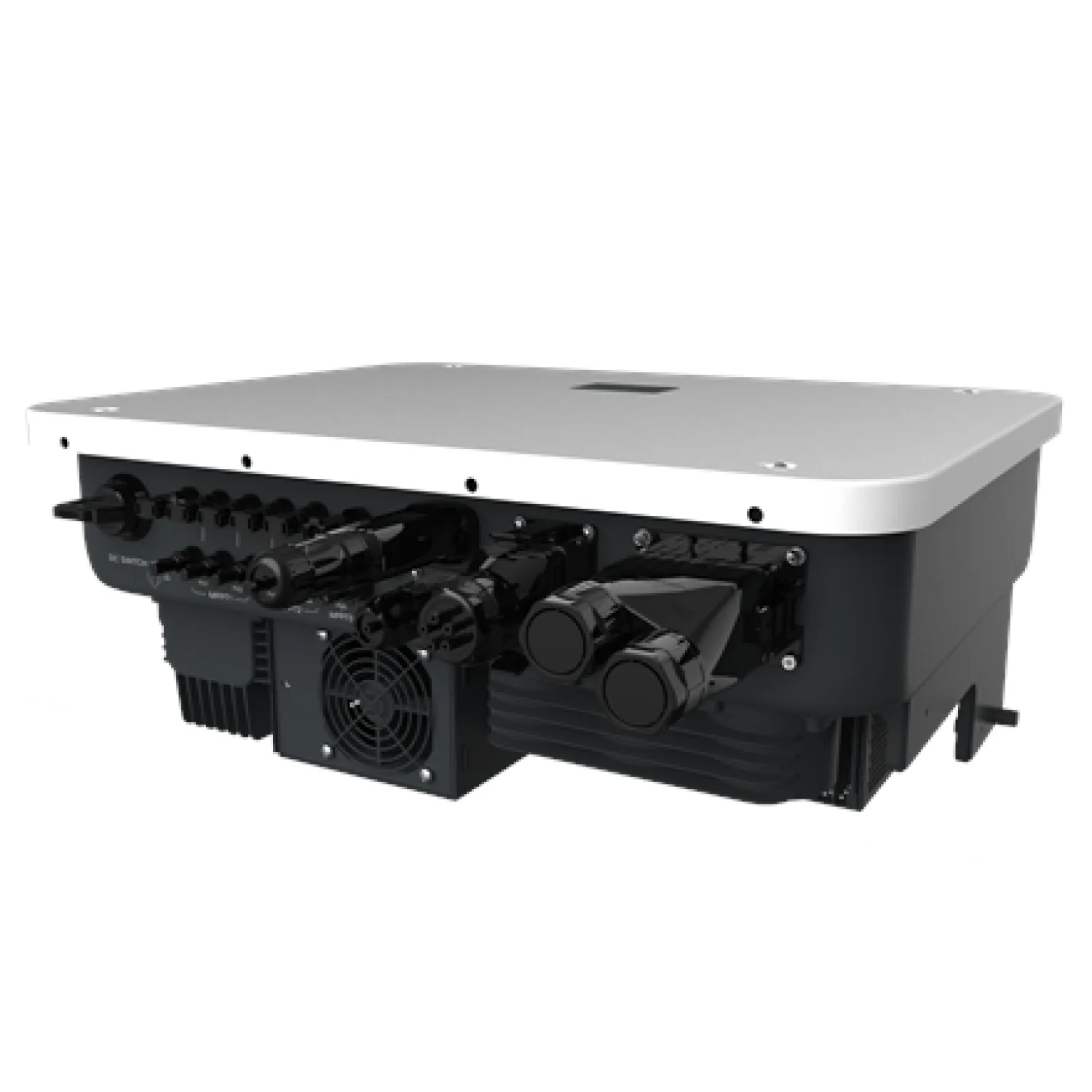

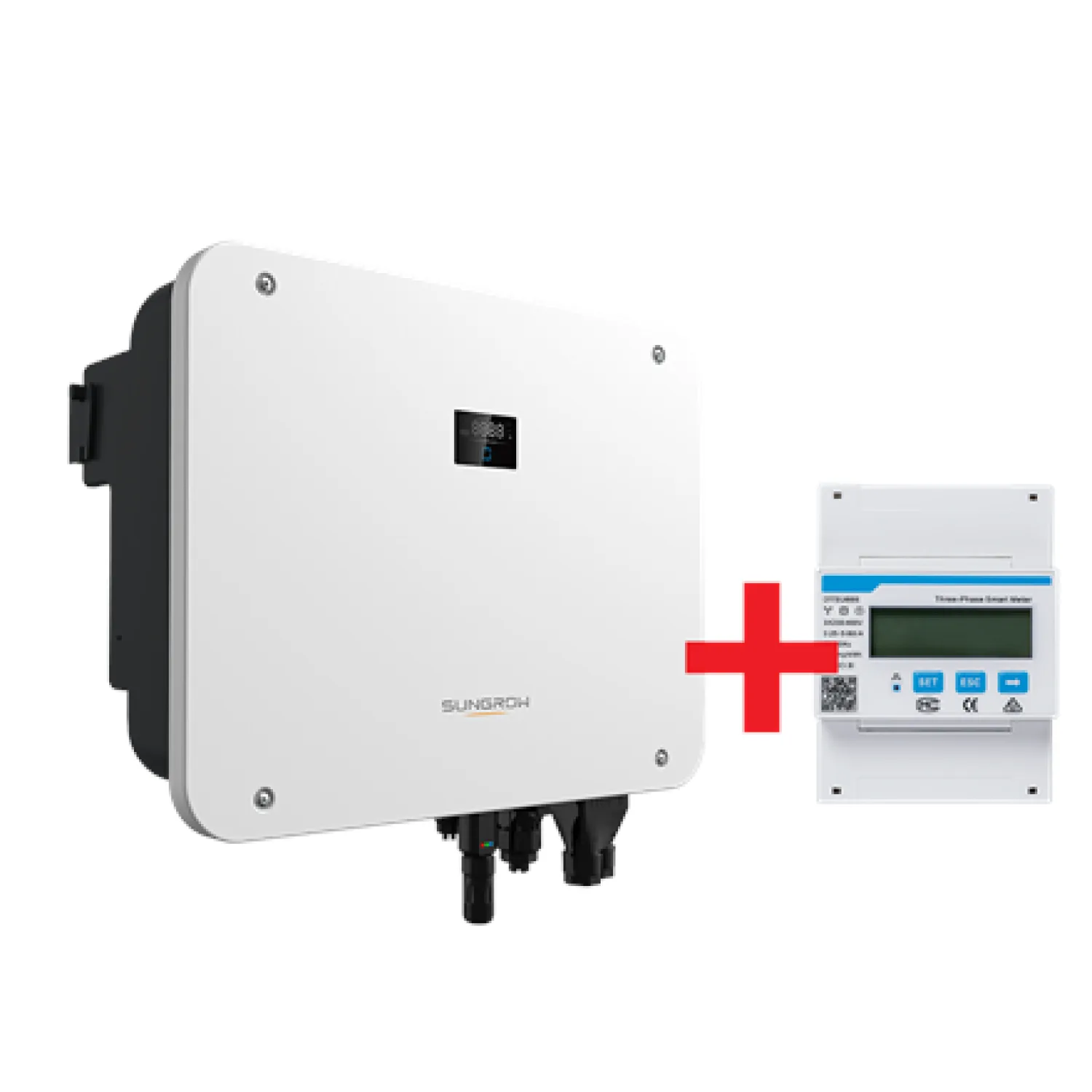

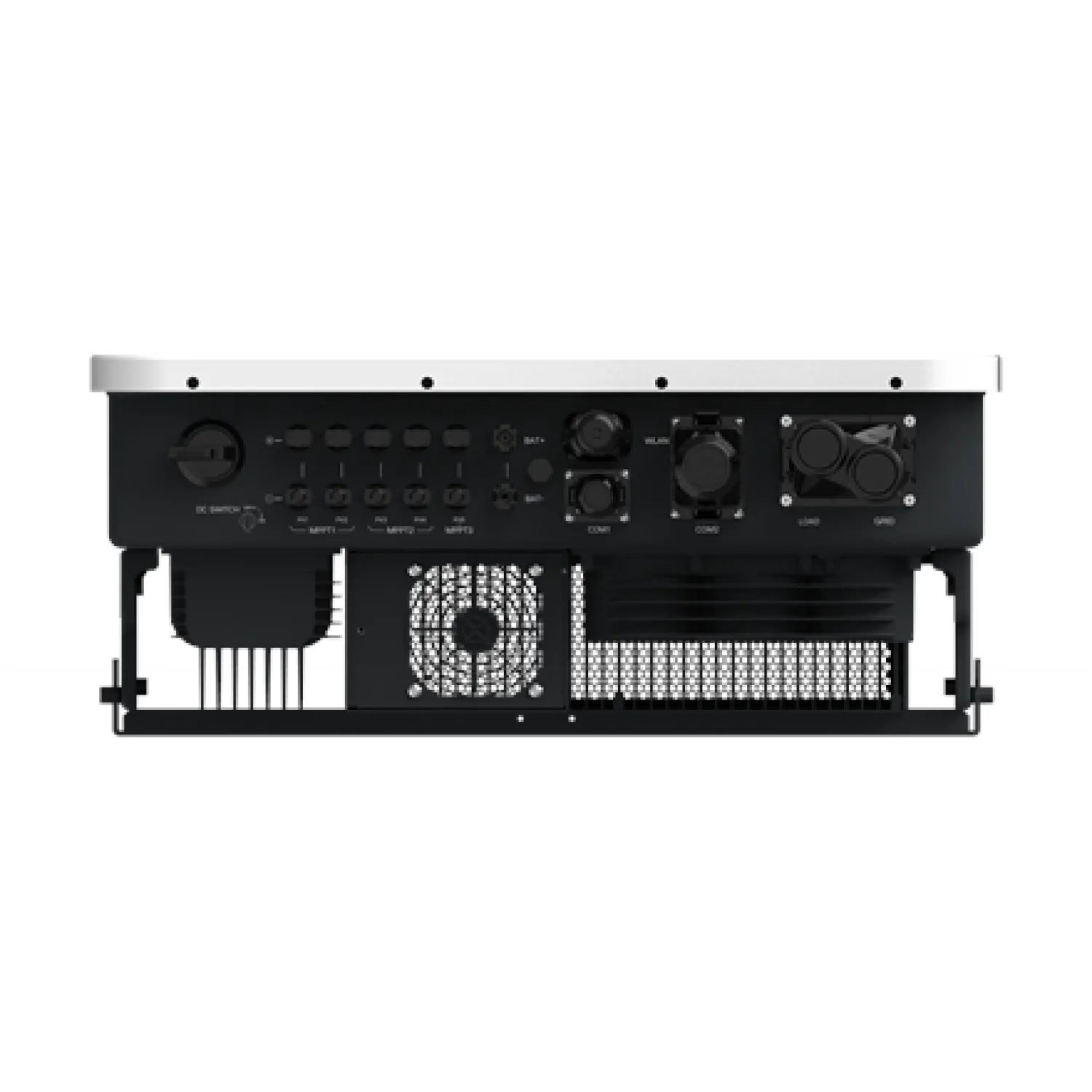

SUNGROW | Inverter Hybrid SH25T-V11_S 25kW 3MPPT + DTSU666-20 Smart Meter with 3x100A CT clamps
Product Code: SUNGROW-SH25T-V11S-25K-3MPPT-KIT
€2,728.95
+ VAT based on country
25 kW three-phase hybrid inverter with 3 MPPT, 1000 V PV, 50 A charge/discharge, 10 ms backup transfer, built-in 63 A bypass and IP65. Kit includes DTSU666-20 MID smart meter with 3×100 A CT clamps.
In stock
Technical Specifications
Model: SH25T-V11_S (ASH00147) — three-phase hybrid inverter for PV + battery with whole-home backup.
PV input
- Recommended PV: 50 kWp
- Max PV voltage: 1000 V; rated 600 V
- MPPT range: 150–950 V; 3 independent MPPTs
- Max PV input current: 30 A (per MPPT)
- Strings per MPPT: 1 (SH25T)
Battery
- Li-ion HV; voltage 100–700 V
- Charge/discharge current: 50 A (max)
AC & backup
- Rated output: 25 kW / 25 kVA; max current 37.9 A
- Grid: 3/N/PE, 230/400 V, 50/60 Hz
- Built-in 63 A bypass; <10 ms seamless switching
- Backup peak: 36.5 kVA (10 s)
Efficiency
- Max / EU: 98.2 % / 97.8 %
Comms & I/O
- RS485, WLAN, Ethernet, CAN; DI/DO; AFCI support
- Monitoring: iSolarCloud (app/web)
Protection & safety
- DC/AC SPD Type II; anti-islanding; grid monitoring; PID-zero; DC & AC protections
Mechanical & environment
- IP65 (C5 corrosion class)
- Size 620 × 480 × 245 mm; 38 kg net
- Cooling: fan; noise ~50 dB(A); –25…+60 °C
Included in kit
- DTSU666-20 smart meter (MID) with 3×100 A split-core CTs for export limit / ALM.
Warranty: 10 years (120 months).
Power & Energy
- Power Output
- 25000 W
- Nominal Power
- 25000 W
- Peak Power
- 36500 VA (10 s, backup)
- Efficiency
- 98.2% (EU 97.8%)
- Transfer Time
- <10 ms
- Phase Type
- three-phase
- Inverter Type
- hybrid
- Power
- 25
Battery
- Battery Type
- Li-ion HV
- Battery Voltage
- 100-700 V
- Max Charge Current
- 50 A
- Max Discharge Current
- 50 A
Solar
- Input Voltage
- 150-950 V (MPPT), max 1000 V PV
- Output Voltage
- 3/N/PE, 230/400 V
- Voltage
- 600 V (rated)
- Frequency
- 50/60 Hz
- MPPT Range
- 150–950 V
- Max PV Power
- 50,000 Wp
- Max PV Voltage
- 1000 V
- Max PV Current
- 0 A per MPPT
- Grid Tie
- Yes, with anti-islanding
- MPPT Count
- 3
Physical
- Dimensions
- 620 × 480 × 245 mm
- Weight
- 38 kg
- Installation Type
- Wall-mounted
- Mounting Options
- Wall bracket (included)
Environmental
- Operating Temperature
- –25 °C to +60 °C
- Protection Rating
- IP65 (C5)
- Cooling
- Fan
- Noise Level
- ~50 dB(A)
Features & Compatibility
- Warranty
- 120 months (10 years)
- Certifications
- IEC/EN 62109, EN 62477-1, EN 50549-1, VDE-AR-N-4105, CE
- Compatibility
- Sungrow SBR HV batteries; DTSU666-20 smart meter (3×100 A CTs)
- Communication
- RS485, WLAN, Ethernet, CAN
- Display
- LED indicators
- Monitoring
- iSolarCloud (app/web)
